IP69K Washdown Indicator
Operator Manual
(800) 223-4227
www.cas-usa.com
U11026280

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X320B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CAS X320B

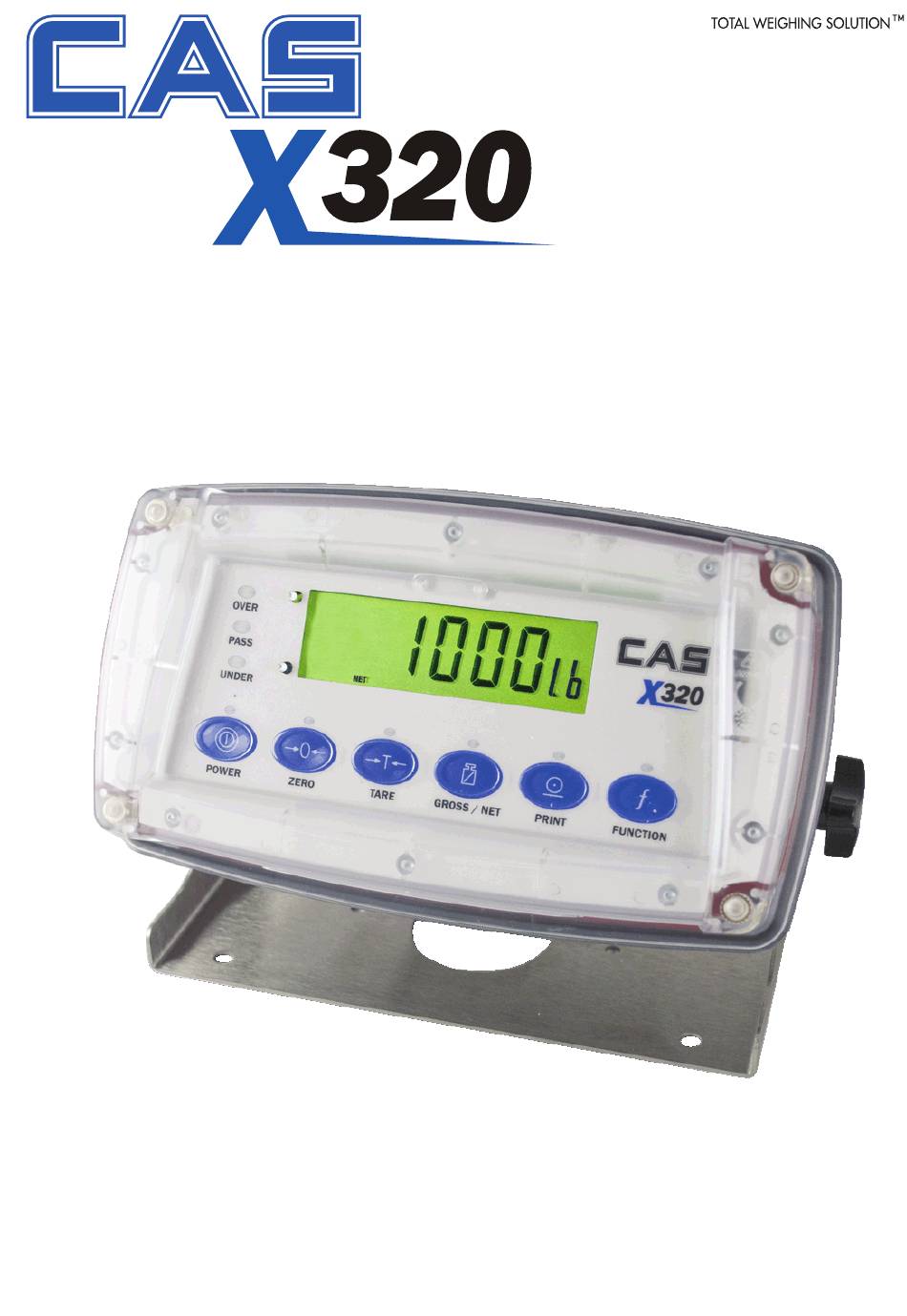

  • Page 1 IP69K Washdown Indicator Operator Manual (800) 223-4227 www.cas-usa.com U11026280...
  • Page 2: Table Of Contents

    Operator Manual Rev 1.21 Table of Contents 1. INTRODUCTION.............2 1.1. Approvals ..............2 1.2. Features ..............2 1.3. Manuals..............2 2. SAFETY ................3 2.1. Operating Environment .........3 2.2. Electrical Safety.............3 2.3. Cleaning ..............3 3. BASIC OPERATION............4 3.1. User Interface Display and Controls .....4 3.2.
  • Page 3: Introduction

    Operator Manual Rev 1.21 1. Introduction This instrument is an IP69K rated precision digital indicator using the latest Sigma-Delta A/D technology to ensure fast and accurate weight readings. 1.1. Approvals • C-tick approved and CE approved. 1.1.1. Trade versions • NSC approval (4000 divisions at 0.8µV/division). •...
  • Page 4: Safety

    Operator Manual Rev 1.21 2. Safety 2.1. Operating Environment • Operating Temperature: –10 to 50°C • Humidity: 100% • Operating Voltage: Shown on Rear Label • IP69K 2.2. Electrical Safety • For your protection all mains electrical hardware must be rated to the environmental conditions of use.
  • Page 5: Basic Operation

    Operator Manual Rev 1.21 3. Basic Operation 3.1. User Interface Display and Controls Page 4 003X-607-121...
  • Page 6: Operation Keys

    Operator Manual Rev 1.21 3.2. Operation Keys Description POWER: The <POWER> key is used to turn the instrument on and off. • To initially turn the instrument ON: Press and hold the <POWER> key until the display starts up. • To turn the instrument OFF: Press and hold the <POWER>...
  • Page 7 Operator Manual Rev 1.21 Description ZERO: The <ZERO> key is used to perform a Zero adjustment on the scale display when an empty scale has drifted away from a true zero reading. • The Zero adjustment is stored when power is removed and is re-used when next powered •...
  • Page 8: Stability Considerations

    Operator Manual Rev 1.21 Description PRINT: The <PRINT> key will trigger an output of the current weight reading if a printer or computer has been attached to the instrument and the manual print function has been selected. • The PRINT prompt is displayed while waiting for the printer to accept data.
  • Page 9: Annunciators

    Operator Manual Rev 1.21 3.4. Annunciators Symbol Name Description Visible when the gross reading is ZERO within ± ¼ of a division of true zero. Visible when the displayed reading represents Net weight. Visible when the displayed reading MOTION is not stable. Visible when check weighing is OVER enabled and the weight is above...
  • Page 10: Basic Weighing

    Operator Manual Rev 1.21 4. Basic Weighing 4.1. Normal Weighing • Ensure instrument is On and Zero annunciator is lit. • Place your item on the weigh platform. • Read the weight display. 4.2. Using Tare • The indicator displays zero with Zero annunciator lit. •...
  • Page 11: Special Functions

    Operator Manual Rev 1.21 5. Special Functions 5.1. Testing the Display • Press the <TEST> key to clear the display then show all segments of the display then clear the display again before returning to normal operation. 5.2. Counting • Place the container on the weigh platform and press <TARE>...
  • Page 12: Hold

    Operator Manual Rev 1.21 5.4. Hold • Press the <HOLD> key to hold the displayed weight at its current weight. • The Hold annunciator will be lit. • Press the <HOLD> key again to release the weight reading and return the display to normal weighing.
  • Page 13: Live Weighing

    Operator Manual Rev 1.21 5.6. Live Weighing • Press and hold the <LIVE WT> key to switch between normal weighing and live weight mode. The display will briefly show NORMAL or LIVE.WT. • Note: During normal weighing, this key operates exactly like a manual <HOLD> key. •...
  • Page 14: Showing Totals

    Operator Manual Rev 1.21 5.7. Showing Totals • The <PRINT> key is used not only to print the current weight but also to add that weight to the current total. • When the <TOTAL> key is pressed, the indicator displays COUNT followed by the number of items in the total.
  • Page 15: High Resolution (K303)

    Operator Manual Rev 1.21 5.9. High Resolution (K303) • When the <HI RES> key is pressed, the indicator shows a high resolution (x 10) on the display. • While the high resolution is displayed the units annunciator flashes. • Printing is inhibited while the high resolution is displayed.
  • Page 16: Check Weigh

    Operator Manual Rev 1.21 5.11. Check Weigh • When the <Check.W> key is pressed the display will briefly show each of the following: • OVER • The target weight for over. • UNDER • The target weight for under. • Press and hold the < Check.W > key for two seconds OVER will be displayed followed by the over target weight for editing.
  • Page 17: Error Messages

    Operator Manual Rev 1.21 6. Error Messages 6.1. Weighing Errors Error Description Resolution (U - - - - -) The weight is below Increase the weight or the minimum allowable decrease the minimum weight reading. allowable weight reading. (O - - - - -) The weight is above Check the condition of the maximum...
  • Page 18: Setup And Calibration Errors

    Operator Manual Rev 1.21 6.2. Setup and Calibration Errors Error Description Resolution The instrument may be in Access Full Setup to edit (ENTRY) Safe Setup and an item that the item. (DENIED) needs Full Setup has been selected for editing. When accessing setup, Turn the instrument off.
  • Page 19: Diagnostic Errors

    Operator Manual Rev 1.21 6.3. Diagnostic Errors • Check: Service personnel can check this item on site. • Return for Service: The instrument must be returned to the manufacturer for factory service. Error Description Resolution (E0001) The power supply voltage is too Check supply low.
  • Page 20 Operator Manual Rev 1.21 Notes: Page 19 003X-607-121...
  • Page 21 Operator Manual Rev 1.21 Notes: Page 20 003X-607-121...
  • Page 22 (800) 223-4227 www.cas-usa.com U11026280...
