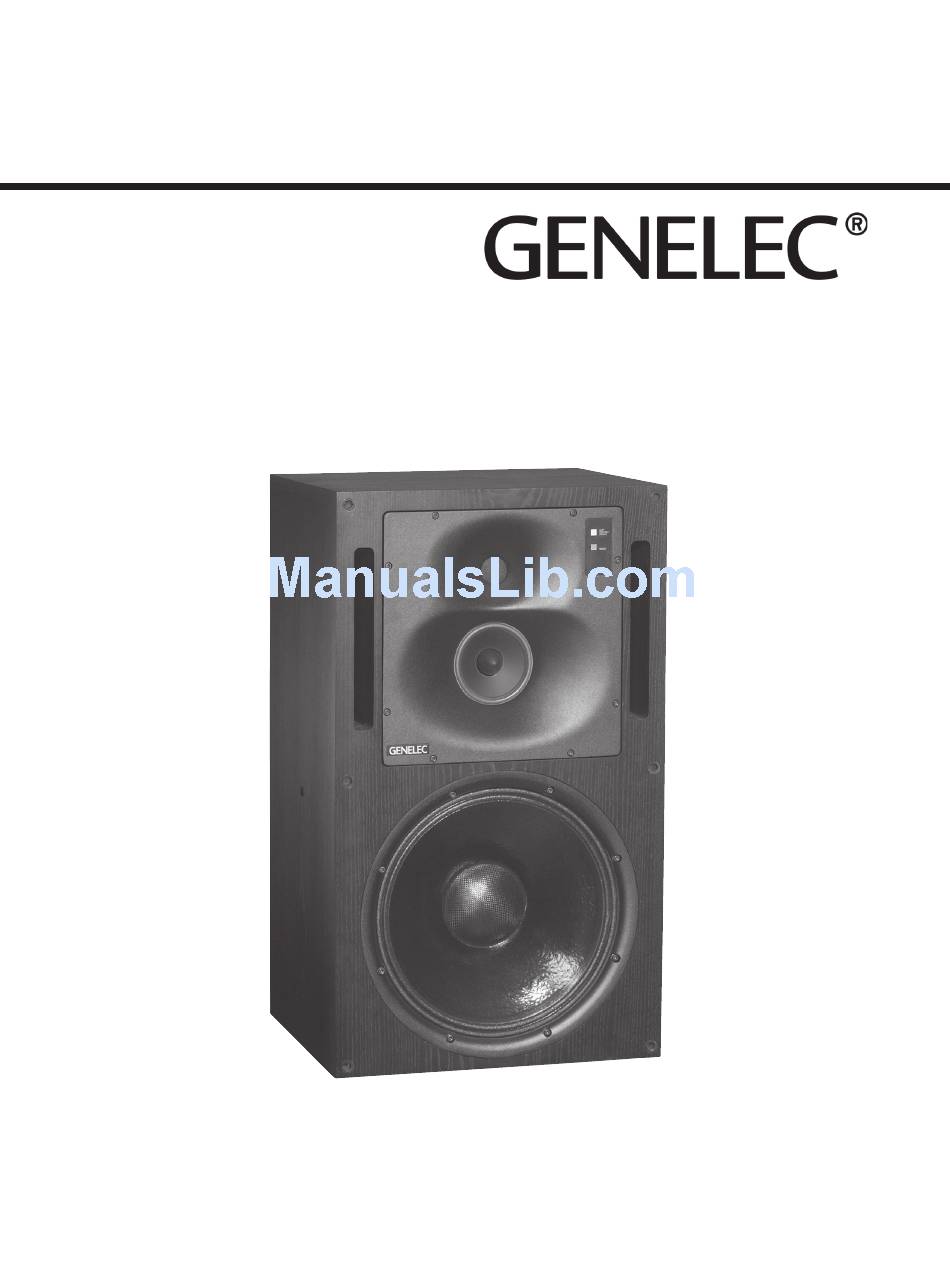

- Page 1 1037C and 1038B Operating Manual Genelec 1037C and 1038B Tri-amplified Monitoring Systems...
-
Page 2: Crossover Filters
The bass, midrange and treble amplifiers on the 1038B produce 400 W, 120 W and 120 W of short term power. The 1037C has a 180 W amplifier for the low frequency driver and 120 W amplifiers each for midrange and treble drivers. -
Page 3: Flush Mounting
-6 dBu input level. To get the full output level of 120 dB SPL from the 1038B an input level of +14 dBu is needed at this setting. Respectively, the full output level of the 1037C is reached at an input level of +10 dBu. Setting tone controls... -
Page 4: Overload Indicators
Overload indicators The speaker is provided with two indicator LED’s marked ‘CLIP PROTECT (FAULT)’ and ‘READY’ (1038B) or ‘ON’ and ‘OVL ’ (1037C). The green LED indicates that the speaker is ready for use. The red LED indicates that the amplifier is overloaded or the driver protec- tion circuit is activated. -
Page 5: Safety Considerations
Figure 7: The curves above show the effect of the ‘bass’, ‘mid’ and ‘treble’ level controls, and the ‘bass tilt’ and ‘bass roll-off ’ controls on the free field response of the 1037C, measured at 2 m. AUDIO PRECISION 1037CANEC... - Page 6 0 to -8 dB @80 Hz The 'CAL' position is with all tone controls set to 'off' and input sensitivity control to maximum. Genelec Document D1037CR001a Copyright Genelec Oy 2.2005. All data subject to change without prior notice AMPLIFIER SECTION 1038B <33 Hz...
