- Page 1 User Manual SY-MUHD-44 SY-MUHD-88 4x4 HDMI 4K Matrix 8x8 HDMI 4K Matrix SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk...
-
Page 2: Safety Instructions

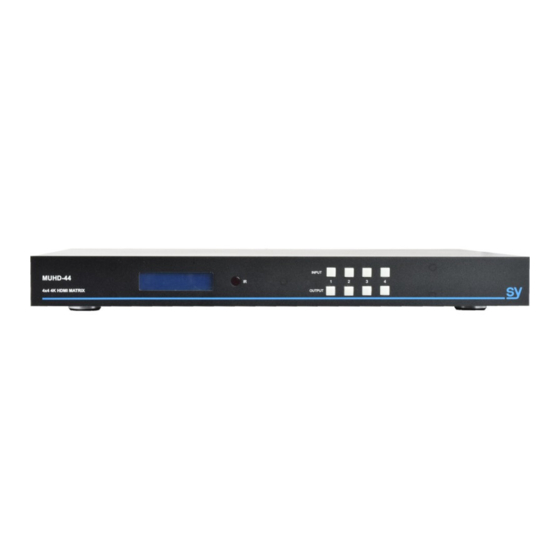

SY-MUHD-44 & SY-MUHD-88 Important notice, please read Safety Instructions To ensure reliable operation of these product as well as protecting the safety of any person using or handling these devices while powered, please observe the following instructions. Use the power supplies provided. If an alternate supply is required, check Voltage, polarity and that it has sufficient power to supply the device it is connected to. - Page 3 SY-MUHD-44 & SY-MUHD-88 The SY MUHD-44 and MUHD-88 are 4x4 and 8x8 true HDMI matrix switchers respectively, supporting HDMI2.0, HDCP2.2 and up to 4K video resolution and 10.2GHz bandwidth. They allows any source (BluRay player, HD DVD player, satellite receiver, game station, etc.) to be shown on the any of the displays simultaneously, no matter whether the source is HDCP compliant or not.
-
Page 4: Installation
Front Panel Control The SY-MUHD-44 and SY-MUHD-88 front panel controls allow for the selection of the inputs to the various outputs. First press a button on the OUTPUT row to choose the output port, then press a button on the INPUT row to select the input signal for the selected output. - Page 5 SY-MUHD-44 & SY-MUHD-88 Local IR Control Figure 3 - MUHD-44 IR Control Figure 4 - MUHD-88 IR Control The HDMI routing of the matrix can also be controlled by using the IR remote supplied with the product. The left arrow button decrements to the next lower input port, and the right arrow increments to the next input port.
-
Page 6: Edid Setting
SY-MUHD-44 & SY-MUHD-88 EDID Setting The matrix switcher has 12 built-in factory defined EDID setting, and three user programmable EDID memories. The user EDID memories are independent to each input and can therefore be set differently for each input. The matrix switcher can also be set to use the EDID information from any of the output display devices. - Page 7 SY-MUHD-44 & SY-MUHD-88 Press and hold button 3 for 3 seconds to save the setting. When the LCD shows the following text, or similar: Then pressing and holding button 3 for three seconds will make the matrix switcher read the EDID from the display device connected to the selected HDMI output and save it to the input chosen as the first step in the above table.
-
Page 8: Edid Commands
SY-MUHD-44 & SY-MUHD-88 RS232 Commands The SY-MUHD-44 and SY-MUHD-88 can also be controlled using RS232 commands, and some configuration settings can only be performed using RS232 commands. The same commands can sent to the matrix via the Ethernet, as IP commands. -
Page 9: Other Commands
SY-MUHD-44 & SY-MUHD-88 IP Set-Up Commands Set the Host IP address of the matrix switcher >@WIPH xxx.xxx.xxx.xxx� (Default: 192.168.001.239) Set the subnet mask >@WIPN xxx.xxx.xxx.xxx� (Default: 255.255.255.000) Set the Router IP address >@WIPR xxx.xxx.xxx.xxx� (Default: 192.168.001.001) Set the TCP/IP port number >@WIPH zzzzz�... -
Page 10: Specifications
SY-MUHD-44 & SY-MUHD-88 Specifications Parameter SY-MUHD-44 SY-MUHD-88 HDMI Inputs HDMI Outputs Analogue audio outputs (Stereo) Weight (Main Unit) 2.1kg 2.4kg Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Signalling Rate 3.0Gbit/s per channel Video Format Supported... - Page 11 SY-MUHD-44 & SY-MUHD-88 NOTES: www.sy.co.uk...
- Page 12 SY-MUHD-44 & SY-MUHD-88 NOTES: www.sy.co.uk...
