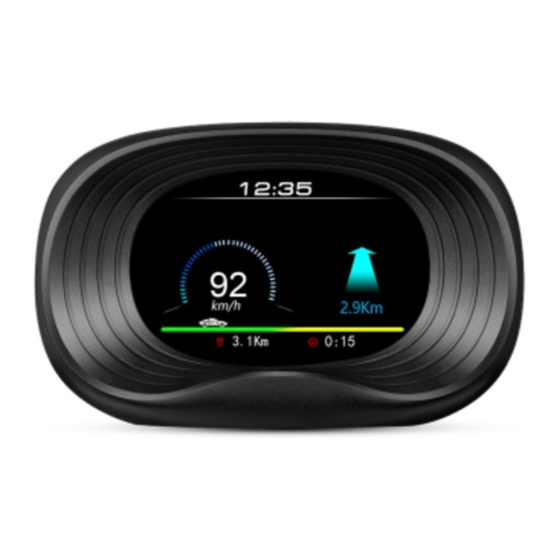

Multifunctional trip computer - P20(Navigation)
Thank you for purchasing multifunctional trip computer produced by our company.This product
reads the driving data of cars through the OBD2 interface of car ECU, such as speed, RPM,fuel
consumption,water temperature and voltage etc,under the condition that the large field of vision
does not shift during the driving of the car. Instantly read the driving information to prevent the
driver from looking down at the instrument panel during transportation and affecting safety.This
product does not rewrite any data inside the ECU.
Kindly Attention
OBD2 mode working voltage: 11V ~ 18Vdc (12Vdc / 200mA)
For cars higher than 18V, please use USB cable to switch GPS system
System selection: Select the language and system after power-on,Press '>' Key to select OBD or GPS
system, and enter the last selected system automatically after 5 seconds without operation
Button and port functions
Short press: press once to release
Long press: press for 2 seconds, then release after entering the setting item
1.Short press 'M' key:
(1) Select function
(2) After normal display, switch the display screen
Long press 'M' key:
(1)Enter settings
(2) After adjustment, press again for 2 seconds to save and exit
Advertisement
Related Manuals for Sunsky P20
Summary of Contents for Sunsky P20
- Page 1 Multifunctional trip computer - P20(Navigation) Thank you for purchasing multifunctional trip computer produced by our company.This product reads the driving data of cars through the OBD2 interface of car ECU, such as speed, RPM,fuel consumption,water temperature and voltage etc,under the condition that the large field of vision does not shift during the driving of the car.
- Page 2 2.Short press the ‘<’ key: (1) Switch language and system when first used (2) Switch to the right function display after normal display (3) Decrease the menu or parameter value after entering the setting 3.Short press the ‘>’ key: (1) Switch language and system when first used (2) Switch the left function display after normal display (3) Increase the menu or parameter value after entering the setting 4.
- Page 3 1.Driving time 2.Driving distance 3.Switchable function display area (voltage) 4.Switchable function area (number of satellites) 5. OBD system 6. GPS system 7. Voltage alarm icon 8. Shift reminder icon 9. Water temperature alarm icon 10. Speeding alarm icon 11. Phone connection icon 12. Fault code icon 13.
- Page 4 Scan the QR code below to download and install 1.(1)Confirm the APP installed successfully, and HUD is working. (2)Open the mobile Bluetooth,GPS,internet. (3)Click the WiiYii App,the mobile phone will auto connect with the HUD via Bluetooth. 2.If the mobile phone cannot connect to the Bluetooth device correctly, please follow the instructions below: (1) HUD host needs to display normally.If the OBD system cannot be connected, please switch to the GPS system to display normally...
- Page 5 Language Set: CN Chinese Simplified/TW Chinese Traditional/EN English Sound Switch: ON buzzer on/ OFF buzzer off Overspeed warning:alarm will turn on when the vehicle speed reaches the default value of 150KM/h,setting range from 5-200km/h Engine temperature alarm:its default value 120 degrees C,range 50-200 Engine speed alarm:its default value of 6000r/min,range 1000-8000 Voltage alarm setting:its default value of 10.5v,range 10.0-15.0v Speed adjustment:the operation is required only there is an error(e.g.
- Page 6 Fuel consumption:making a fine-tuning if there is an error (If the device shows 0.2L above the meter voltage, the device is adjusted to 98%) Change Color 1: the speed color in the main display interface Change Color 2:the left side functions color on the screen Change Color 3:the right side functions color on the screen Backlight brightness: Auto automatic light sensitive, 1 for the darkest, 8 for the brightest Temperature unit: °C-Celsius °F-Fahrenheit...
- Page 7 2.Only the car voltage displays and be automatic power off after 30 second (1) This product is only available for OBDII and EOBD cars when it is in OBD2 mode (2) This product OBD2 mode does not support OBD I and JOBD (3) OBD2 is a car protocol(U.S.A Cars:2003 Other regions:2008) (4) Switch to the GPS system using the USB cable to display, within 5 seconds of power short press the ‘>’...
- Page 8 GPS FAQ： 1.The screen is not displayed, no power Check the OBD cable or car charger is in tight connections,try it several times to make sure,or plug a USB cable into the cigarette lighter 2.No speed GPS will take a short of time to search the satellites,please drive the car to the open road to get 5 and more satellites so that Gauge can be used normally 3.HUD cannot automatically power on or repeatedly extinguish during driving (1) Please use the USB cable to insert the cigarette lighter...
- Page 9 Iphone: Search keyword ‘WiiYii’ in APP Store Android phones: Search keyword ‘WiiYii’ in Android Market 2.How to use APP (1) Please download this software (2) manually turn on the Bluetooth and location (3) click the icon of WiiYii,system will automatically search the Bluetooth and connect 2.Bluetooth cannot connect to Phone (1) HUD host needs to display normally, if the OBD system cannot be connected, switch to GPS system normal display...
