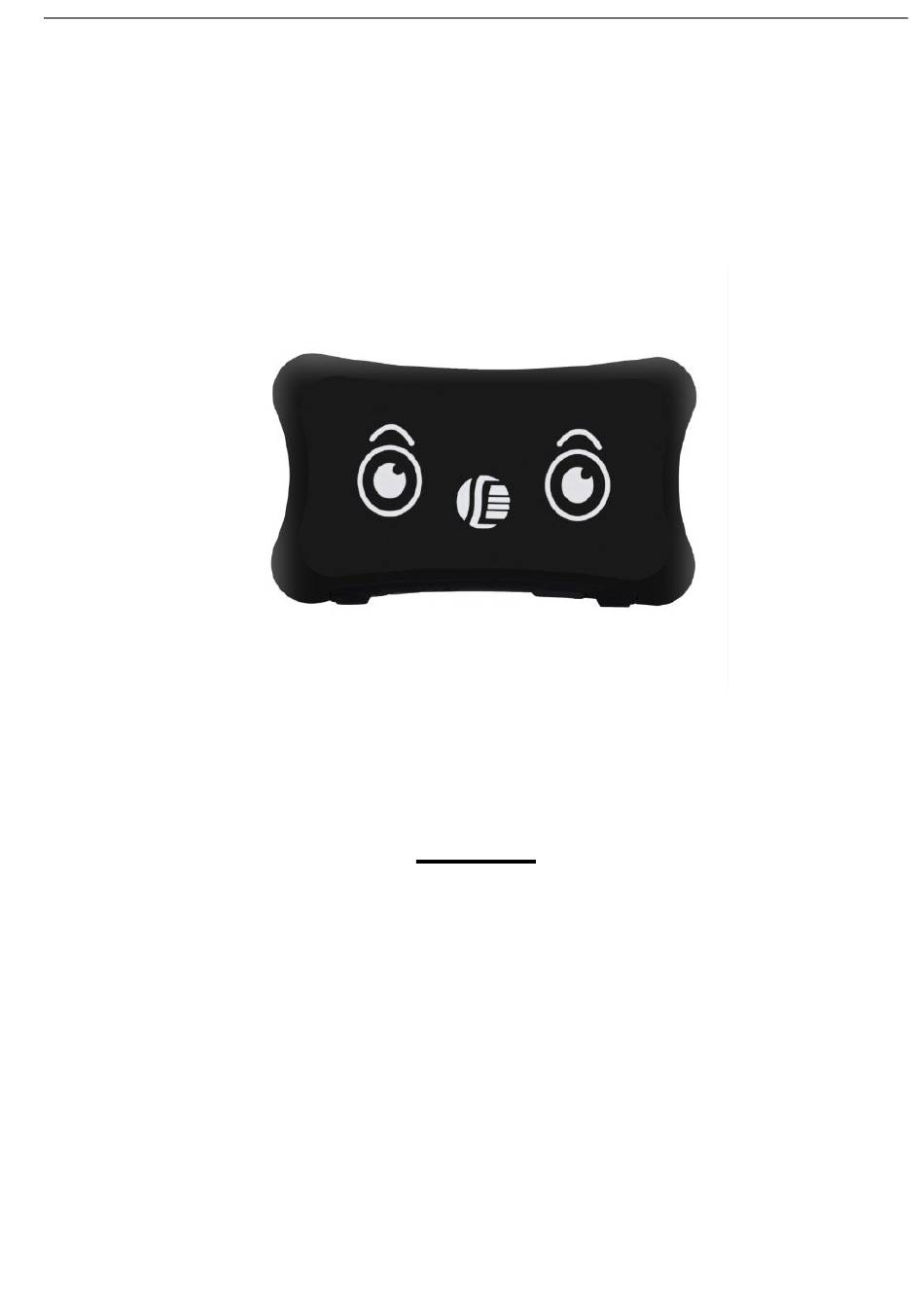

GSM/GPRS/GPS TRACKER
MANUAL
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes
without prior notice in this manual. Any change will be integrated in the latest release.
The manufacturer assumes no responsibility for any errors or omissions in this
document.
1
Advertisement
Related Manuals for Sunsky TGPS0503
Summary of Contents for Sunsky TGPS0503
- Page 1 GSM/GPRS/GPS TRACKER MANUAL Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Led Indicator Status
1.Led indicator status LED INDICATOR STATUS MEANING Red light continuously work Charging Red light not lit Fully charged Green light Flashing Success get GSM singnal Green light continuously lit Searching GSM signal 2.Operational Notices: 1).GPS tracking can be worked outdoor. Must have mobile phone gsm signal and have GPS signal, It can block GPS satellite signal when there are metal or building above the GPS tracker etc. -
Page 3: Quick Using
Quick using Then Use mobile phone call the device and hang up or sending message “smslink123456” to sim card in tracker ,device reply position Picture (1) With GPS Signal Picture (2) Without GPS Signal... - Page 4 Pic(1)：Replied real-time tracking information Lat:22.67533 lon:114.03913: Position of the latitude and longitude Speed：000.1: Device moving speed. The unit is km/h. T:06/14/17 09:14 : Real-tracking time, the Default is London time. You can Set a time zone by sms command ...
- Page 5 2) Download iOS APP: app store search---dagps---Install the dagps APP 3.2: login platform positioning 1)Open www.gps110.org Use tracker ID login, default password 123456. You can tracker device,it is ok...
- Page 6 PC login APP login It is Real time positioning,every 1min upload position by default,you can change upload position time interval NOTE: If device online in platform, no need set apn commands If you insert the correct SIM card and open GPS device in outside, the device is still not online.
- Page 7 You can switch mode by APP anytime and anywhere. 【Mode 1】：Vibration Saving Power mode (no need set by default ) Send the position data when device is moving and do not send the data when device is static. This mode can save power and save GPRS cost It is every 1mins/1 times positioning when device is vibrating 【Mode 2】：real-time T mode( urgent mode) If you app setting upload time is 60s, It is every 1mins/1 times positioning...
- Page 8 Example REPLY INSTRUCTION Set time zone time zone123456 1(default no need set) Time zone ok (1 is east 1, -1 is west 1) Set time zone(half time zone) time zone123456 8 30default no need set Time zone ok (8 30 is east 8.5 time zone) gprs mode(default app tracking) Gprs123456(default no need set) Gprs ok set APP online position(set apn) APN123456 APN Name...
- Page 9 5.FAQ Instructions/Solutions Please check if device has electricity and charge cable Fail to turn on is rechargeable Please check if SIM card installed correctly and have No GSM signal money,have gprs there a mobile phone GSM signal Please check if SIM card is 2G or 3G/4gCompatible 2G Make sure the device can receive the GPS signal No GPS normally.
- Page 10 Content Specs Dim. 60*34*19MM Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -159dBm GPS accuracy 5-10m Cold status 45-85s Time To First Fix Warm status 35s Hot status 1s Work voltage Battery Chargeable changeable 3.7V, 800ma Storage Temp. -40°C to +85°C Operation Temp.
