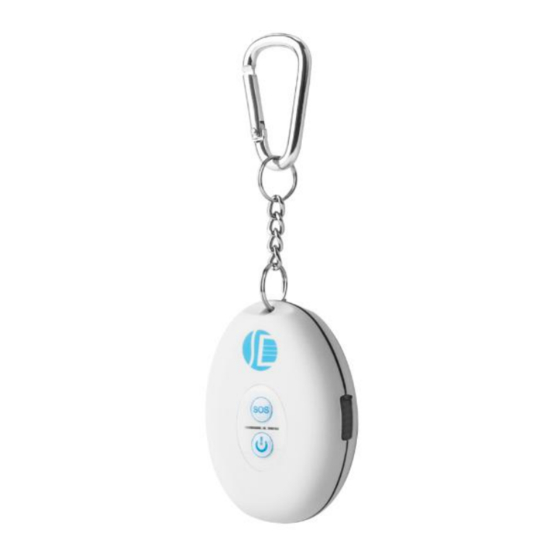

Sunsky TGPS0504B Manual

Gsm/gprs/gps tracker
Hide thumbs

Advertisement

Quick Links

Download this manual

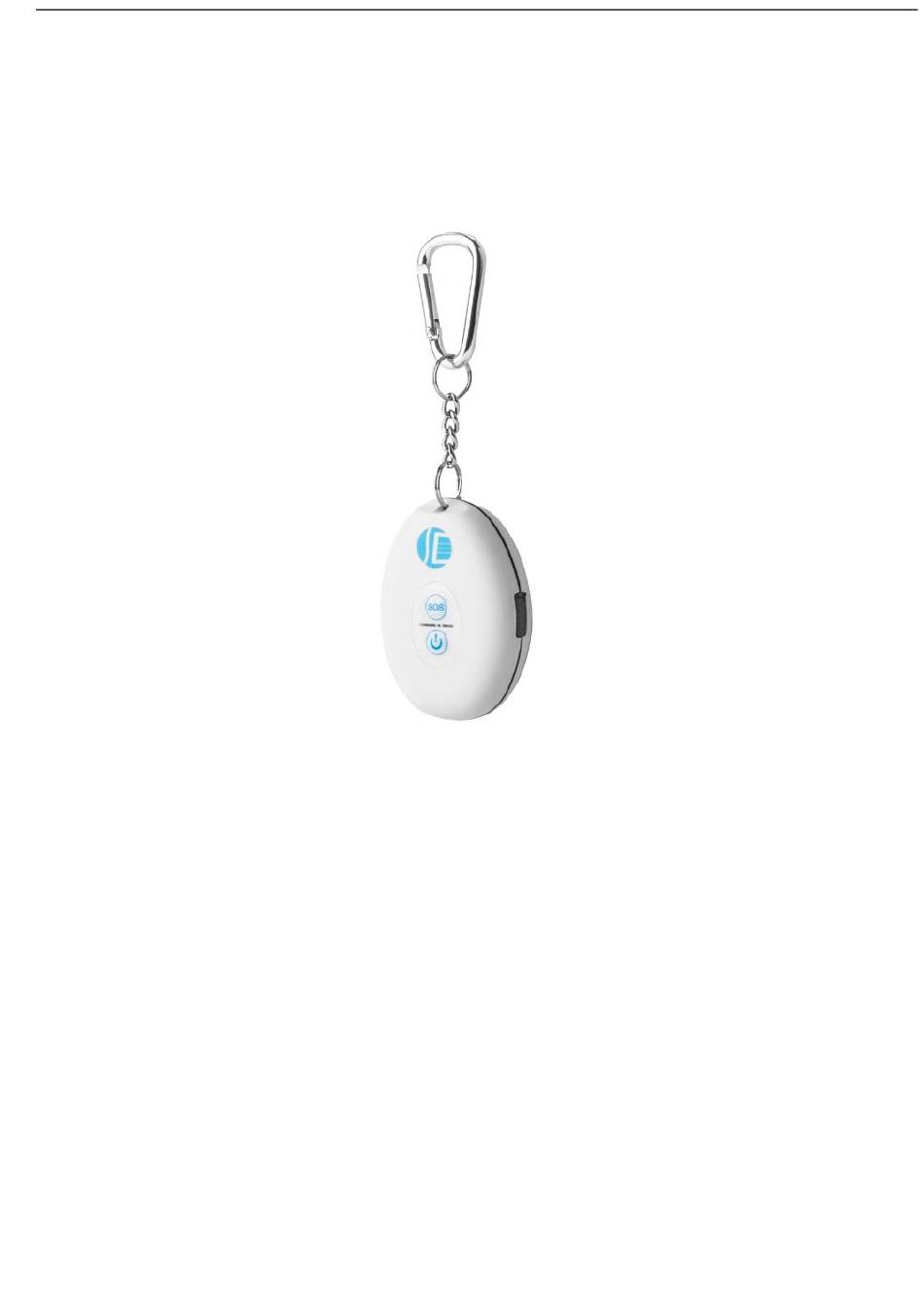

GSM/GPRS/GPS TRACKER
MANUAL
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in
the latest release. The manufacturer assumes no responsibility for any errors
or omissions in this document.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TGPS0504B and is the answer not in the manual?

Questions and answers

Related Manuals for Sunsky TGPS0504B

Summary of Contents for Sunsky TGPS0504B

  • Page 1 GSM/GPRS/GPS TRACKER MANUAL Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Specifications

    1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. Specifications Content Specs Dim. 63mm x 46mm x 21mm Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GSM chip MTK6261 GPS chip U-blox 7020...
  • Page 3 · Add Smart sleep save power Mode · Add AGPS function,receive GPS signals faster · Add built-in storage memory · Add WATERPROOF and dust proof · patented product · Add Roll call positioning · Add app set 2.Led indicator status LED INDICATOR STATUS MEANING RED LED continuously work...

  • Page 4: Quick Using

    3.2 Quick using Use mobile phone call the device and hang up or sending message “smslink123456” to sim card in tracker ,then send message “time zone123456 time”tracker reply positioning information,time is loca time zone...
  • Page 5 Picture (1) have gps signal Picture (2) no gps signal Pic(1)：Replied real-time tracking information  Lat:22.67533 lon:114.03913: Positioning of the latitude and longitude  Speed：000.1: device moving speed. The unit is km/h.  T:06/14/17 09:14 : real-tracking time, the Default is London time. You can Set a time zone by sms command ...
  • Page 6 2) Download iOS APP:login in app store---dagps---Install the dagps APP 4.2: login platform positioning 1)Open www.gps110.org Use tracker ID login, default password 123456. PC login APP login 4.3 register Administrator account and tracking multiple devices operation ： register APP accounts--- Fill in the APP---login in registered accounts device list----add device---fill in --OK...
  • Page 7 Registration fill in Click vehicle list add device If you add device more than two , continue to add ID number If device online in platform, no need set apn commands...

  • Page 8: Working Mode

    5. Set APN SMS1: APN123456+space+Apn name ( APN name pls ask the sim card company ,for example tell you the apn name is ABC,so send :APN123456 ABC) (If have the APN user name and password, need plus APN user name and password behind the APN name) APN123456+space+APN name+space+ APN user name+space+ APN password...
  • Page 9 sms mode positioning 【Mode 3】： Use mobile phone call the device and hang up,you will receive positioning or send “smslink123456 ”to sim card in tracker, you wil receive positioning (Standby time 12 days) 【Mode 4】：vibration save power mode (optional,The default do not have this function) Upload the positioning data when device vibration and not sending the data When device static,In order to save power and save gprs cost (can work 3days)
  • Page 10 INSTRUCTION Example REPLY position smslink123456 Get adress Set admin number admin123456 mobile number admin ok Cancel admin number noadmin123456 mobile number noadmin ok SOS alarm Long press SOS Help me Cancel SOS nohelp me nohelp Set time zone time zone123456 local time Time zone ok Set time zone(half time zone) Time zone123456 8 30 time zone ok...
  • Page 11 7.FAQ Instructions/Solutions Please check if device has electricity and charge line to Fail to turn on be rechargeable  Please check if SIM card installed correctly. No GSM signal  Please check if SIM card is 2G GSM network.  Cancel Sim card PIN code ...
  • Page 12 No uploading position time or no GPS signal,reply Platform position is position is last time. If it shows like Pic 2, pls make sure difference from the the device can receive the GPS signal normally.in actual position. outdoor,and take device to walk around...
