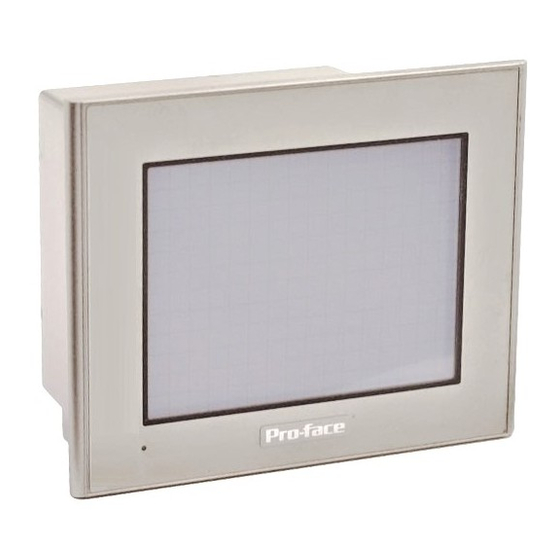

ST-3200 Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

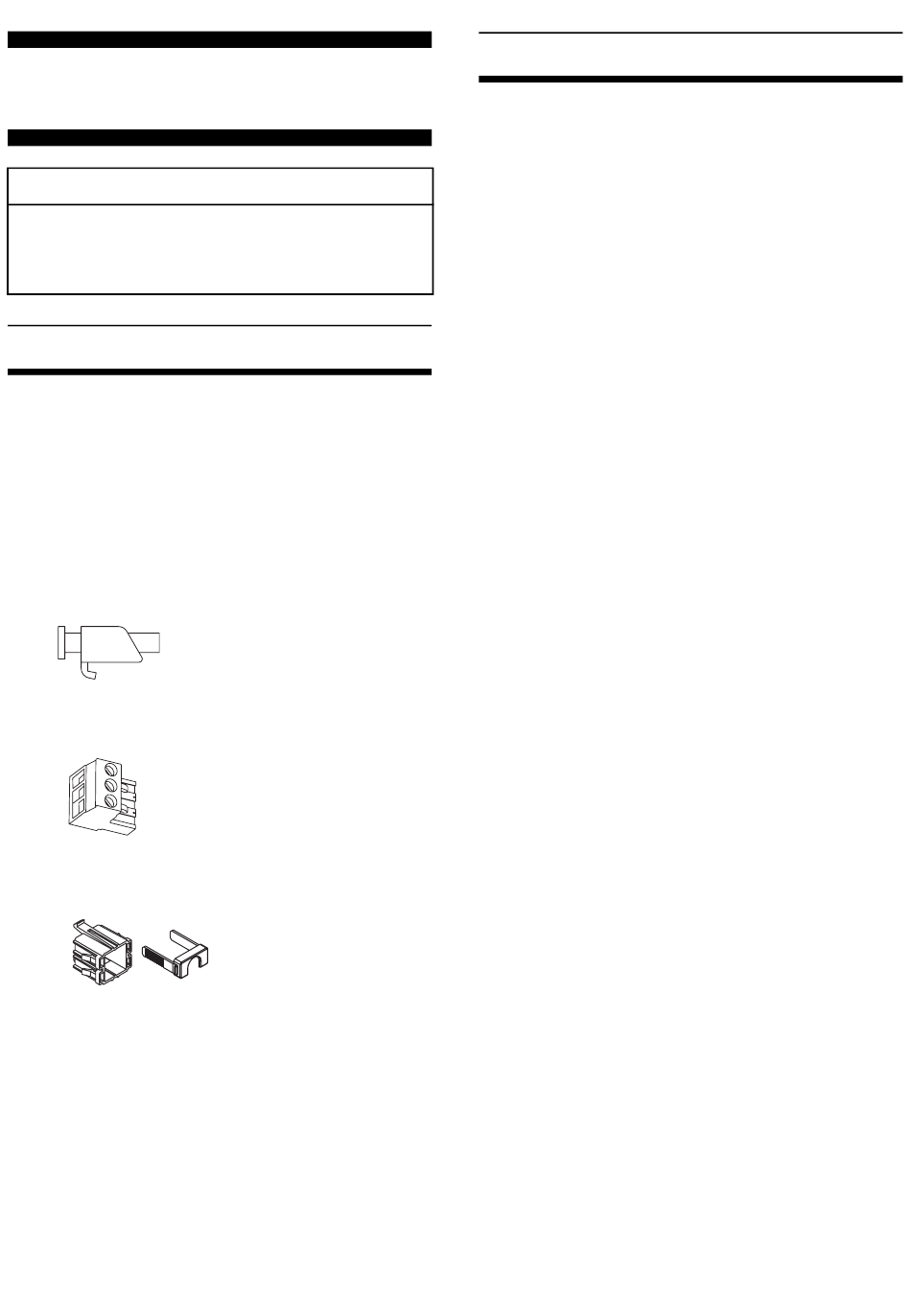

Package Contents
(1) ST Unit (1)
(2) English and Japanese Installation Guides
(one of each) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (1)
(Attached to the ST unit)
(5) Installation Fasteners (Set of 4)
(6) Power Connector (1)
(Attached to the ST unit)
(7) USB Cable Clamp (1 set)
(Holder: 1, Cover: 1)
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local ST distributor
immediately.
About the Manual
For the detailed information on ST3000
series, refer to the following manual.
• ST3000 Series Hardware Manual
• Maintenance/Troubleshooting
ST3000 Series Hardware Manual can be
selected from the help menu of GP-Pro EX or
downloaded from Pro-face Home Page.
URL
http://www.pro-face.com/otasuke/
1
