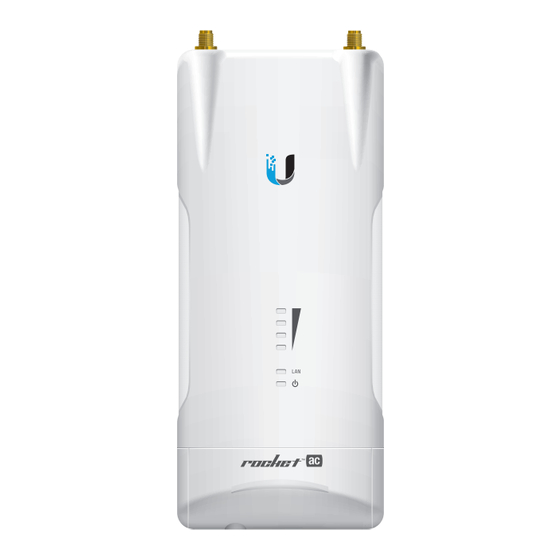

Ubiquiti Rocket R5AC-PTP Quick Start Manual

5 ghz airmax ac point-to-point backhaul with airprism active rf filtering technology
Hide thumbs Also See for Rocket R5AC-PTP:
Table of Contents

Advertisement

Quick Links

Download this manual
5 GHz airMAX
ac Point-to-Point
®
Backhaul with airPrism
Active
™
RF Filtering Technology
Model: R5AC-PTP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rocket R5AC-PTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti Rocket R5AC-PTP

Summary of Contents for Ubiquiti Rocket R5AC-PTP

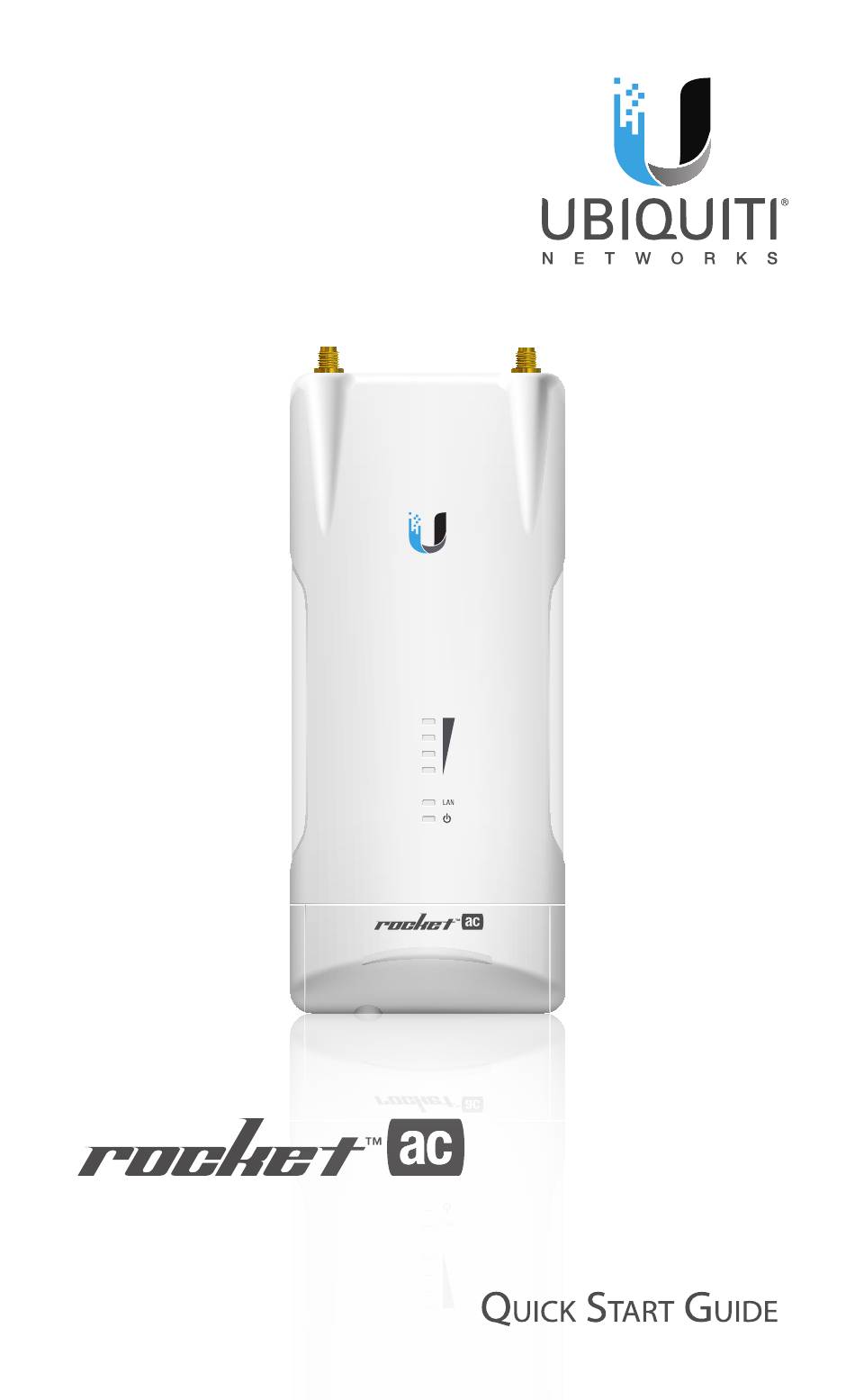

  • Page 1 5 GHz airMAX ac Point-to-Point ® Backhaul with airPrism Active ™ RF Filtering Technology Model: R5AC-PTP...

  • Page 2: Package Contents

    ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™...

  • Page 3: Hardware Overview

    Hardware Overview RP-SMA Antenna Connectors LED Panel Port Cover...
  • Page 4 LED Panel Signal The default wireless signal strength values are shown below: LED will light blue when the wireless signal strength is equal to or above ‑65 dBm. LED will light blue when the wireless signal strength is equal to or above ‑73 dBm. LED will light blue when the wireless signal strength is equal to or above ‑80 dBm.
  • Page 5 Ports Reset Button RESET LAN Port The Gigabit Ethernet port is used to connect the power and should be connected to the LAN. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the Rocket is already powered on.

  • Page 6: Hardware Installation

    Hardware Installation The Rocket5ac PtP is designed to mount directly onto a Ubiquiti airMAX RocketDish antenna. ™ 1. Press down on the Port Cover of the Rocket and slide it off. RESET 2. Connect an Ethernet cable to the LAN port.
  • Page 7 4. Connect the RF cables (included with the RocketDish) to the RP-SMA Connectors located on top of the Rocket. 5. Attach the Rocket to the RocketDish. a. Align the mounting tabs on the back of the Rocket with the four mounting slots on the RocketDish. b.
  • Page 8 6. Attach the other ends of the RF Cables to the RF connectors in this combination: Chain 1 to H and Chain 0 to V. 7. Attach the Protective Shroud. a. Align the hash mark on the top of the shroud with the notch on the RocketDish.

  • Page 9: Connecting Power Over Ethernet

    Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable from the Rocket to the Ethernet port labeled POE on the Gigabit PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the Gigabit PoE Adapter. 3.
  • Page 10 Accessing airOS Connect to the airOS® Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the Rocket. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.

  • Page 11: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional...

  • Page 12: Specifications

    Specifications Rocket5ac PtP Dimensions 198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74") Weight 295 g (10.41 oz) Operating Frequency Worldwide 5150 ‑ 5875 MHz 5725 ‑ 5850 MHz Networking Interface (1) 10/100/1000 Ethernet Port RF Connectors (2) RP‑SMA (Waterproof ) LEDs Power, LAN, (4) Signal Strength Enclosure...

  • Page 13: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 14: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 15 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.

  • Page 16: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...
  • Page 17 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

  • Page 18: Industry Canada

    Industry Canada CAN ICES‑3(B)/NMB‑3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that...
  • Page 19 CAN ICES‑3(B)/NMB‑3(B) Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s).

  • Page 20: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Alert Sign (!) Follows CE Marking Alert sign must be indicated if a restriction on use applied to the product and it must follow the CE marking.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

  • Page 23: Online Resources

    [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 24 ©2014‑2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, Rocket, RocketDish, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
