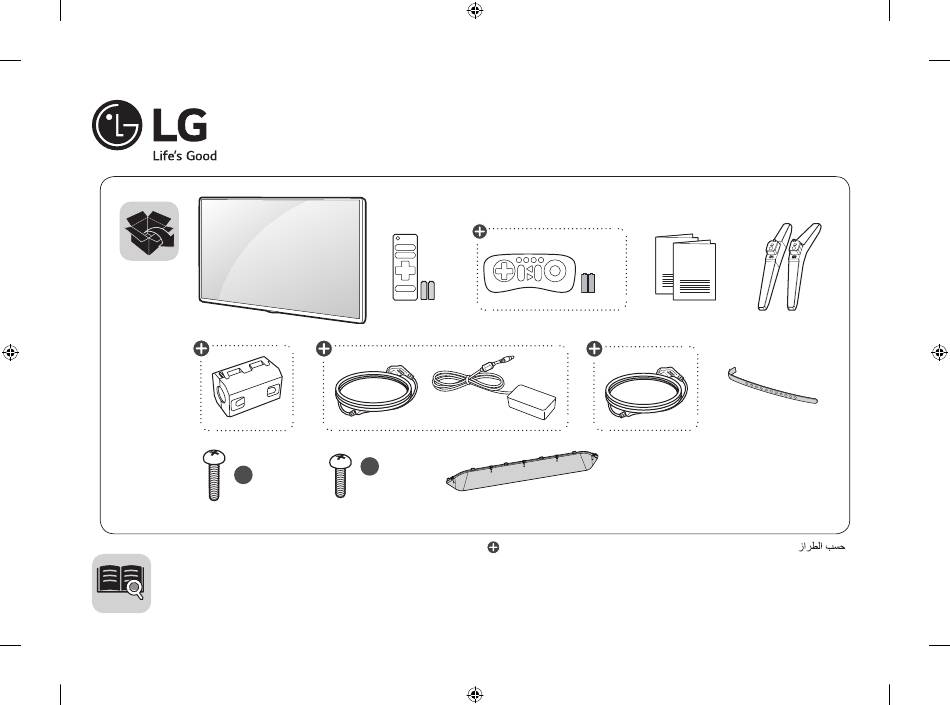

- Page 1 LED TV LJ51** LJ54** (M3 X L10) (M4 X L16) LJ548* LJ548* : Depending on model / Selon le modèle / Dependendo do modelo / P/No: MFL69674122 (1705-REV04) www.lg.com Printed in Korea...
- Page 3 32LJ51*, 32LJ542*...
- Page 4 32LJ548*...
- Page 5 ANTENNA/ CABLE IN HDMI IN USB IN H/P OUT Satellite IN...
- Page 6 H/P OUT Satellite IN COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
- Page 7 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 32LJ51*, 32LJ542* DC-IN (19 V...
- Page 9 32LJ548*...
- Page 11 32LJ510D-TB 32LJ510U-TA 4.90 4.85 32LJ510Z-TA 32LJ514D-TB 32LJ519D-TA 19 V 2.0 A 5.10 5.05 32LJ542D-TD 19 V 2.5 A...
- Page 12 92.6 5.90 5.85 32LJ548D-TG...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69730702* P/NO: MFL69730702 (1706-REV05) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
- Page 14 India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.) ATTENTION: This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices. When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.
- Page 15 Warning! Safety instructions • Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. • Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
- Page 16 • Only use an authorized AC adapter and power cord approved by make sure the connecting cables are long enough. Otherwise, LG Electronics. Otherwise, this may result in fire, electric shock, the product may fall over, which may cause injury or damage the malfunction or product deformation.
- Page 17 Preparing • Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. • Image shown may differ from your TV. • ...
-
Page 18: Lifting And Moving The Tv
Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being scratched (Depending on model) or damaged and for safe transportation regardless of its type and size. You can simply operate the TV functions, using the button. • ... -
Page 19: Mounting On A Table
Mounting on a table Securing the TV to a wall (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 20: Mounting On A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please... -
Page 21: Antenna Connection
Antenna connection CI module connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). (Depending on model) • Use a signal splitter to use more than 2 TVs. View the encrypted (pay) services in digital TV mode. • ... -
Page 22: Remote Control
Remote control Adjusts the volume level. Accesses your favourite programme list. (Some buttons and services may not be provided depending on models Shows programme guide. or regions.) (MUTE) Mutes all sounds. The descriptions in this manual are based on the buttons on the remote Scrolls through the saved programmes. - Page 23 Game remote functions Licenses (Depending on model) Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Game Hot Key works only in normal TV viewing mode. (Not in USB Playback) Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 24: Open Source Software Notice Information
• Eco/APS: [Depending on model] LG Electronics will also provide open source code to you on CD-ROM The Energy Saver feature changes settings on the TV to reduce for a charge covering the cost of performing such distribution (such power consumption. -
Page 25: Resetting Picture Settings
To set advanced controls Resetting picture settings (Settings) Picture Picture Mode Settings Advanced (Settings) Picture Picture Mode Settings Picture Controls / Expert Controls Reset Calibrates the screen for each picture mode; or adjusts picture settings Resets picture settings that the user customizes. Each picture mode is for a special screen. -
Page 26: Selecting Sound Mode
Selecting Sound Mode To synchronize audio and video (Settings) Sound Sound Mode Settings Sound Mode (Settings) Sound AV Sync Adjustment Adjusts TV audio to an optimal level based on a selected sound mode. [Depending on model] • Standard: Optimizes the sound for all types of content. Synchronizes video and audio directly when they do not match. - Page 27 To use Mosquito Away To use SIMPLINK [Depending on model] (Settings) General Mosquito Away SIMPLINK is a feature that enables you to control and manage various [Depending on model] multimedia devices conveniently via the SIMPLINK menu. Mosquito Away makes a sound only mosquitos can hear to make them 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI go away.
-
Page 28: Supported Audio Formats
My Media supporting file Supported Audio Formats • File type: mp3 • Maximum data transfer rate: 20 Mbps (Mega bit per second) [Bit rate] 32 Kbps - 320 Kbps • External supported subtitle formats: *.smi, *.srt, *.sub (MicroDVD, [Sample freq.] 16 kHz - 48 kHz SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMplayer), *.psb [Support] MPEG1, MPEG2, Layer2, Layer3 (PowerDivX) -
Page 29: To See Web Manual
• If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with To obtain detailed User Guide information, please visit www.lg.com. product. • This panel is an advanced product that contains millions of pixels. -
Page 30: Specifications
Model: DA-48G19 Model: DA-65F19 Manufacturer: Chicony Manufacturer: Chicony Model: A16-048N2A Model: A16-065N4A Manufacturer: LG Innotek Manufacturer: LG Innotek Model: PSAC-L655 Model: PSAD-L641 Input: AC 100 - 240 V ~ 50/60 Hz Input: AC 100 - 240 V ~ 50/60 Hz Output: DC 19 V 2.53 A... - Page 31 Component port connecting HDMI-DTV supported mode information Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) Component ports on the TV 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.25 50.00 37.50...
- Page 32 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. • ...
-
Page 33: Environmental Information
5. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-315- _ Provided sentence 9999 / 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties with LG Electronics India Pvt. Ltd. LGE Internal Use Only Merely as a facilitator. - Page 34 • Test conducted, three times at temperature of 27±2°C and humidity of 60±10%. • Test used two chambers size 3.5 m x 2.6 m x 2.2 m, the chamber with the LG Mosquito Away TV assumed to be inside (“inside chamber”) and the chamber without the LG Mosquito Away TV assumed to be outside (“outside chamber”).
- Page 36 Record the model number and serial number of the Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 37: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 38: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... -
Page 39: Usb To Serial Converter With Usb Cable
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 40: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 41: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 42: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 43 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 44 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 45 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 46 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 47 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 48 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
