: Depending on model / Abhängig vom Modell / Selon le modèle / In base al modello / En función del modelo / Dependendo do modelo / Afhankelijk van het model /
Ανάλογα με το μοντέλο / Odvisno od modela / Típusfüggő / Zależnie od modelu / Závisí na modelu / V závislosti od modelu / În funcţie de model /
В зависимост от модела / Sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / U zavisnosti od modela / Ovisno o modelu / Në varësi të modelit /
Ovisno o modelu / Во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan /
www.lg.com

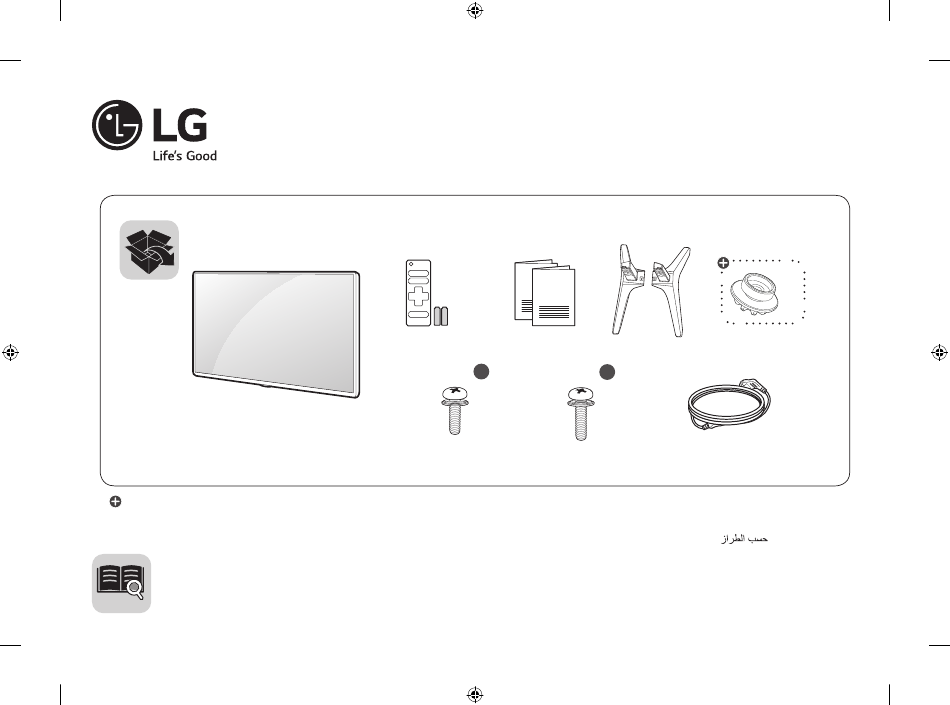

AAA
a
b
X 4
X 4
(M4 x L14)
(M5 x L17)
43UJ62**
65UJ62**
49LJ54**
49UJ62**
55LJ54**
55UJ62**
LED TV
LJ54**
UJ62**
X 4
P/No: MFL70219902 (1706-REV00)
Printed in Korea

Advertisement

Table of Contents
loading

Summary of Contents for LG LJ54 Series

  • Page 1 В зависимост от модела / Sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / U zavisnosti od modela / Ovisno o modelu / Në varësi të modelit / Ovisno o modelu / Во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan / P/No: MFL70219902 (1706-REV00) www.lg.com Printed in Korea...
  • Page 5 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT...
  • Page 6 H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R...
  • Page 7 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 9 241.4 95.9 43UJ620V-ZA 49LJ540V-ZA 1104 251.1 91.4 11.3 49UJ620V-ZA 55LJ540V-ZA 1243 251.1 91.1 13.7 55UJ620V-ZA 1467 301.3 91.4 22.2 21.4 65UJ620V-ZA...
  • Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69655013* P/NO: MFL69655013 (1708-REV01) Copyright © 2017 LG Electronics Inc. All Rights Reserved.
  • Page 14 Warning! Safety instructions • Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture. •...
  • Page 15 • Only use an authorized AC adapter and power cord approved by There is a danger of combustion/explosion or fire due to careless LG Electronics. Otherwise, this may result in fire, electric shock, handling of the inflammable substances. malfunction or product deformation.
  • Page 16 • Signal from Remote Control can be interrupted due to external/ • Avoid touching the screen or holding your finger(s) against it for internal lighting eg Sunlight, fluorescent lighting. If this occurs turn long periods of time. Doing so may produce some temporary or off lighting or darken viewing area.
  • Page 17: Lifting And Moving The Tv

    Preparing • Do not use any unapproved items to ensure the safety and product life span. • If the TV is turned on for the first time after it was shipped from • Any damage or injuries caused by using unapproved the factory, initialization of the TV may take a few minutes.
  • Page 18: Using The Button

    Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being scratched You can simply operate the TV functions, using the button. or damaged and for safe transportation regardless of its type and size. •...
  • Page 19: Mounting On A Wall

    Mounting on a table Securing the TV to a wall (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation.
  • Page 20: Antenna Connection

    Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to • When attaching the LG wall mount bracket to the TV, do not use the floor. When you attach the TV to other building materials, please wall mount spacers provided with the LG wall mount bracket.
  • Page 21: Remote Control

    Connections (notifications) Satellite dish connection (Only satellite models) Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s Connect the TV to a satellite dish to a satellite socket with a satellite RF connection, refer to the manual provided with each device.
  • Page 22: Troubleshooting

    Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (INPUT) Changes the input source. (Some buttons and services may not be provided depending on models (Q. Settings) Accesses the Quick Settings. or regions.) By zooming in on the selected area, you can view it in full screen.
  • Page 23: Specifications

    • If there is no signal while the TV is on, the TV will turn off LG Electronics will also provide open source code to you on CD-ROM automatically after 15 minutes of inactivity.
  • Page 24 Specifications Abnormal Display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with Wireless module specification product. • As band channels can vary per country, the user cannot change or •...
  • Page 25 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV Analogue TV...
  • Page 26 OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 27: External Control Device Setup

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 28: Key Codes

    (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 29 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 30: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 31: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 32: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 33 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 34 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 35 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 36 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 37 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
