Summary of Contents for LG 43LJ515V-ZE

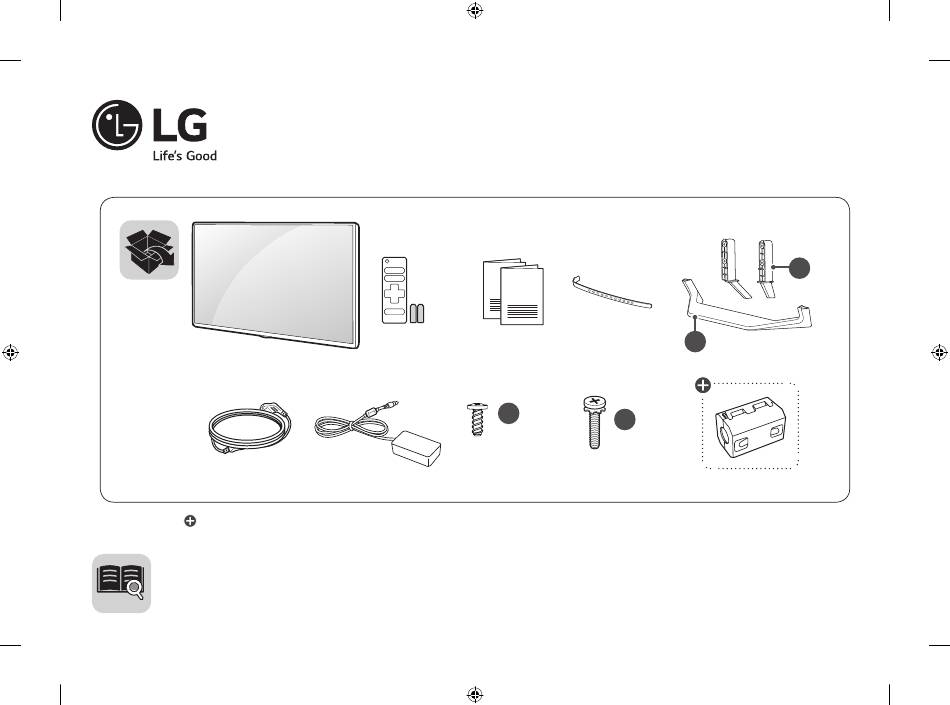

- Page 1 LED TV LJ51** (M4 X L10) (M4 X L14) : Depending on model / В зависимости от модели / Залежно від моделі / Үлгіге байланысты / Rusumiga qarab / Загвараас хамаарна P/No: MFL69653524 (1704-REV01) www.lg.com Printed in Korea...
- Page 4 ANTENNA/ CABLE IN HDMI IN USB IN Satellite IN...
- Page 5 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 6 DC-IN (19 V...
- Page 8 Power requirement 207.4 81.5 19 V 2.7 A 43LJ515V-ZE 1108 207.4 81.5 11.6 10.6 19 V 3.2 A 49LJ515V-ZE...
- Page 9 (Только для России) Данные по энергоэффективности для моделей телевизоров LG * Указанные модели телевизоров не имеют «выключенного режима». Для полного отключения телевизора - отсоедините его от сети питания. * Потребляемая мощность изделием в режиме ожидания: распространяется на заводской режим по умолчанию, только когда...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69672518* P/NO: MFL69672518 (1706-REV01) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety instructions • Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.
- Page 15 • Only use an authorized AC adapter and power cord approved by make sure the connecting cables are long enough. Otherwise, LG Electronics. Otherwise, this may result in fire, electric shock, the product may fall over, which may cause injury or damage the malfunction or product deformation.
- Page 16 • Please follow the installation instructions below to prevent the • When moving or unpacking the product, work in pairs because the product from overheating. product is heavy. Otherwise, this may result in injury. - The distance between the product and the wall should be more • ...
-
Page 17: Lifting And Moving The Tv
Lifting and moving the TV • How to use the ferrite core (Depending on model) - Use the ferrite core to reduce the electromagnetic interference in the power cord. Wind the power cord on the ferrite core once. Please note the following advice to prevent the TV from being scratched [Wall side] [TV side] or damaged and for safe transportation regardless of its type and size. -
Page 18: Using The Button
Using the button Mounting on a table You can simply operate the TV functions, using the button. 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 19: Mounting On A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 20: Antenna Connection
Remote control Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. (Some buttons and services may not be provided depending on models • ... -
Page 21: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 22: Automatically Setting Up Programme
Settings Fine-tuning Picture Mode (Settings) Picture Picture Mode Settings This feature allows you to adjust the selected picture mode in detail. Automatically Setting Up Programme • Backlight: Controls the level of screen brightness by adjusting the backlight. The closer to 100, the brighter the screen. (Settings) Programmes Auto Tuning... -
Page 23: Resetting Picture Settings
To set additional picture options To use Eye Comfort Mode feature (Settings) Picture Picture Mode Settings Picture (Settings) Picture Eye Comfort Mode Options If you turn this option on, colour temperature will be automatically adjusted to reduce eye strain. Adjusts detailed setting for images. • ... - Page 24 Optical audio output port. LG audio device allows you to enjoy rich powerful Digital Audio Out from the TV to Optical Digital Audio In of the sound easily.
- Page 25 SIMPLINK function description To remove the USB device • Direct Play: Plays the multimedia device on the TV instantly. Select the connected USB HDD from (HOME) Inputs and select • Controlling devices with the TV remote control: Manages the the Eject button to disconnect the USB HDD storage device. multimedia device with the TV remote control.
-
Page 26: Supported Audio Formats
My Media supporting file Supported Audio Formats • Maximum data transfer rate: 20 Mbps (Mega bit per second) • File type: .mp3 • External supported subtitle formats: *.smi, *.srt, *.sub (MicroDVD, [Bit rate] 32 Kbps - 320 Kbps SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMplayer), *.psb [Sample freq.] 16 kHz - 48 kHz (PowerDivX) [Support] MPEG1, MPEG2, Layer2, Layer3... -
Page 27: To See Web Manual
• If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with To obtain detailed User Guide information, please visit www.lg.com. product. • This panel is an advanced product that contains millions of pixels. -
Page 28: Specifications
Model: DA-65F19 AC/DC Adapter Manufacturer: Chicony Manufacturer: Chicony Model: A16-048N2A Model: A16-065N4A Manufacturer: LG Innotek Manufacturer: LG Innotek Model: PSAC-L655 Model: PSAD-L641 Input: AC 100 - 240 V ~ 50/60 Hz Input: AC 100 - 240 V ~ 50/60 Hz Output: DC 19 V 2.53 A... - Page 29 HDMI-DTV supported mode Component port connecting information Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) Component ports on the TV 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.25 50.00 37.50...
-
Page 31: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 32: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... -
Page 33: Usb To Serial Converter With Usb Cable
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 34: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 35: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 36: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 37 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 38 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 39 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 40 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 41 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 42 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
