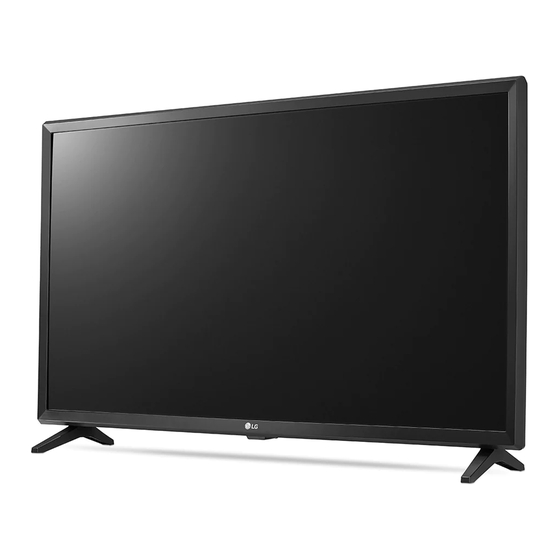

LG 32LJ510B-ZA Owner's Manual

LG 32LJ510B-ZA Owner's Manual

Lcd screen with led backlights
Hide thumbs Also See for 32LJ510B-ZA:

Advertisement

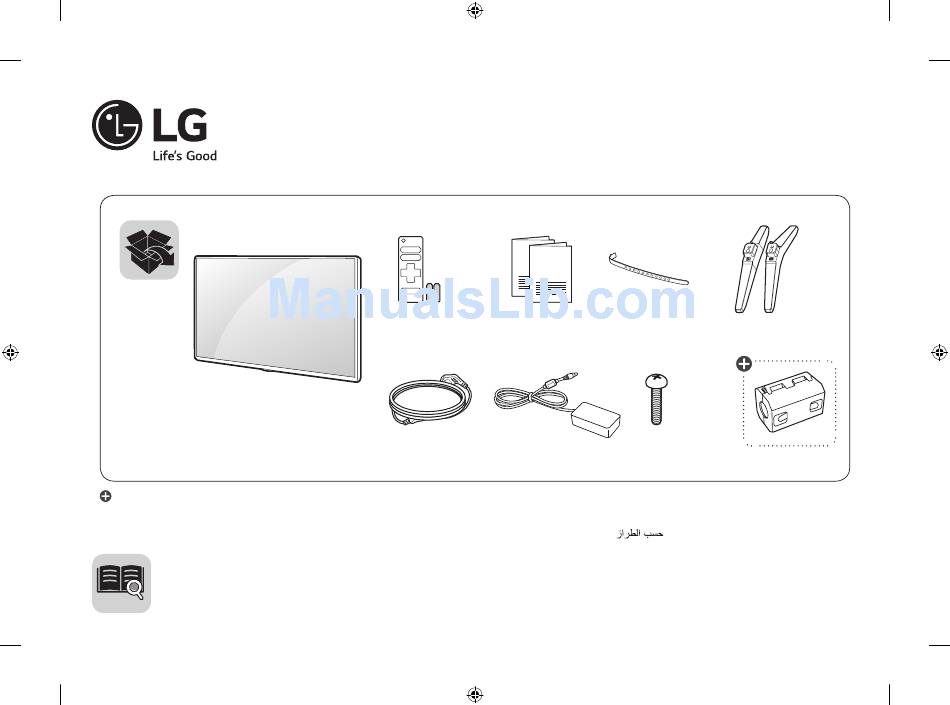

LED TV
LJ51**
AAA
X 2
(M4 X L16)
: Depending on model / Abhängig vom Modell / selon le modèle / in base al modello / En función del modelo / Dependendo do modelo / Afhankelijk van het model /
Ανάλογα με το μοντέλο / odvisno od modela / Típusfüggő / zależnie od modelu / Závisí na modelu / v závislosti od modelu / În funcţie de model / в зависимост
от модела / sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / u zavisnosti od modela / ovisno o modelu / Në varësi të modelit / ovisno o modelu / во
зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan /
P/No: MFL69653512 (1701-REv01)
www.lg.com
Printed in Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32LJ510B-ZA and is the answer not in the manual?

Questions and answers

Summary of Contents for LG 32LJ510B-ZA

  • Page 1 от модела / sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / u zavisnosti od modela / ovisno o modelu / Në varësi të modelit / ovisno o modelu / во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan / P/No: MFL69653512 (1701-REv01) www.lg.com Printed in Korea...
  • Page 5 ANTENNA/ CABLE IN HDMI IN USB IN Satellite IN...
  • Page 6 Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
  • Page 7 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 8 DC-IN (19 V...
  • Page 10 Power requirement 32LJ510B-zA 4.90 4.85 19 v 2.0 A 32LJ510u-zA 32LJ519u-zC...
  • Page 13 5. Language ENG (1) 6. Number of pages “This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification.
  • Page 14 Pagination sheet Front Back (Eng) Cover P/No. … … Blank Blank (Eng)
  • Page 15 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69672514* P/NO : MFL69672514 (1706-REV01) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
  • Page 16 Warning! Safety instructions •  Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. •  Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
  • Page 17 •  Only use an authorized AC adapter and power cord approved by •  Please follow the installation instructions below to prevent the LG Electronics. Otherwise, this may result in fire, electric shock, product from overheating. - The distance between the product and the wall should be more malfunction or product deformation.
  • Page 18 Preparing •  As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. •  When unplugging the cable, grab the plug and unplug it, by • ...
  • Page 19: Lifting And Moving The Tv

    Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being scratched You can simply operate the TV functions, using the button. or damaged and for safe transportation regardless of its type and size. • ...
  • Page 20 LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with 10 cm cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 21: Antenna Connection

    Antenna connection •  Remove the stand before installing the TV on a wall  mount by performing the stand attachment in reverse. Connect the TV to a wall antenna socket with an RF cable (75 Ω). •  Use a signal splitter to use more than 2 TVs. •  When installing the wall mounting bracket, it is recommended to  •  If the image quality is poor, install a signal amplifier properly to  cover the stand hole using tape, in order to prevent the influx of  improve the image quality. dust and insects. (Depending on model) •  If the image quality is poor with an antenna connected, try to  realign the antenna in the correct direction. •  An antenna cable and converter are not supplied. •  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,  HE-AAC Adapter connection Stand hole •  Please be sure to connect the TV to the AC-DC power  adapter before connecting the TV’s power plug to a  wall power outlet.  Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF  cable (75 Ω). CI module connection Connections (notifications) View the encrypted (pay) services in digital TV mode.
  • Page 22: Network Connection

    Network connection 2 Select the START CONNECTION. (Only LAN PORT model) Wired network connection Internet connection 3 The device automatically tries to connect to the network. Wired router Network setting 1 Select the (Settings) NETWORK Network Setting menu. 4 The connected network is displayed. Select the CLOSE to confirm the network connection.
  • Page 23: Remote Control

    Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Audio descriptions function will be enabled. (Some buttons and services may not be provided depending on models Resizes an image. or regions.) (INPUT) Changes the input source.
  • Page 24: Automatically Setting Up Programme

    Eye Care settings, which can also affect energy consumption. disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 25 Fine-tuning Picture Mode To set additional picture options (Settings) Picture Picture Mode Settings (Settings) Picture Picture Mode Settings Picture Options This feature allows you to adjust the selected picture mode in detail. Adjusts detailed setting for images. •  Backlight : Controls the level of screen brightness by adjusting the backlight.
  • Page 26 •  Clear Voice : Boosts voice clarity from the TV. audio output port. LG audio device allows you to enjoy rich powerful •  Music : [Depending on model] Optimizes the sound for music. sound easily.
  • Page 27 To set password To use SIMPLINK [Depending on model] (Settings) Safety Set Password SIMPLINK is a feature that enables you to control and manage various Sets or changes the TV password. multimedia devices conveniently via the SIMPLINK menu. •  The initial password is set to ‘0000’ . 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI • ...
  • Page 28: Supported Video Formats

    My Media supporting file Supported Audio Formats •  Maximum data transfer rate: 20 Mbps (Mega bit per second) •  File type : .mp3 •  External supported subtitle formats : *.smi, *.srt, *.sub [Bit rate] 32 Kbps - 320 Kbps (MicroDVD, SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMplayer), *.psb [Sample freq.] 16 kHz - 48 kHz (PowerDivX) [Support] MPEG1, MPEG2, Layer2, Layer3...
  • Page 29: To See Web Manual

    •  If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with To obtain detailed User Guide information, please visit www.lg.com. product. •  This panel is an advanced product that contains millions of pixels.
  • Page 30: Specifications

    AC/DC Adapter Manufacturer : Chicony Manufacturer : Chicony Model : A16-048N2A Model : A16-065N4A Manufacturer : LG Innotek Manufacturer : LG Innotek Model : PSAC-L655 Model : PSAD-L641 Input : AC 100 - 240 V ~ 50/60 Hz Input : AC 100 - 240 V ~ 50/60 Hz Output : DC 19 V 2.53 A...
  • Page 31 HDMI-DTV supported mode Component port connecting information Horizontal Vertical Resolution Frequency Frequency Component ports on the TV (kHz) (Hz) 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.25 50.00 37.50...
  • Page 34 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 35: External Control

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 36 KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 37: External Control Device Setup

    (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 38 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 39: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 40 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 41 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 42 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 43 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 44 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 45 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 46 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
