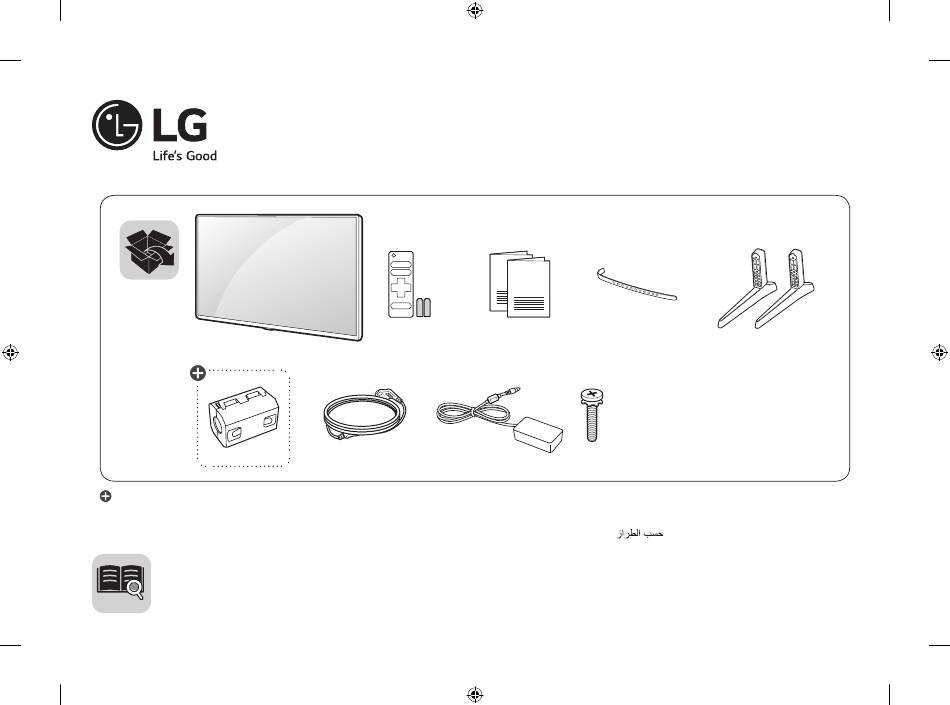

LED TV
LJ51**
AAA
X 4
(M4 X L14)
: Depending on model / Abhängig vom Modell / selon le modèle / in base al modello / En función del modelo / Dependendo do modelo / Afhankelijk van het model /
Ανάλογα με το μοντέλο / odvisno od modela / Típusfüggő / zależnie od modelu / Závisí na modelu / v závislosti od modelu / În funcţie de model / в зависимост
от модела / sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / u zavisnosti od modela / ovisno o modelu / Në varësi të modelit / ovisno o modelu / во
зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan /
P/No: MFL69653502 (1702-REv01)
www.lg.com
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 43LJ515V
Summary of Contents for LG 43LJ515V
- Page 1 от модела / sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / u zavisnosti od modela / ovisno o modelu / Në varësi të modelit / ovisno o modelu / во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan / P/No: MFL69653502 (1702-REv01) www.lg.com Printed in Korea...
- Page 5 ANTENNA/ CABLE IN HDMI IN USB IN Satellite IN...
- Page 6 Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
- Page 7 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 DC-IN (19 V...
- Page 10 Power requirement 43LJ510v-zD 43LJ515v-zD 217.9 81.5 19 v 2.7 A 43LJ5150-zD 43LJ519v-zF 49LJ510v-zD 1108 217.9 81.5 10.9 10.6 19 v 3.2 A 49LJ515v-zD 49LJ5150-zD...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69672514* P/NO : MFL69672514 (1706-REV01) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety instructions • Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. • Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
- Page 15 • Only use an authorized AC adapter and power cord approved by • Please follow the installation instructions below to prevent the LG Electronics. Otherwise, this may result in fire, electric shock, product from overheating. - The distance between the product and the wall should be more malfunction or product deformation.
- Page 16 Preparing • As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. • When unplugging the cable, grab the plug and unplug it, by • ...
-
Page 17: Lifting And Moving The Tv
Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being scratched You can simply operate the TV functions, using the button. or damaged and for safe transportation regardless of its type and size. • ... -
Page 18: Mounting On A Table
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with 10 cm cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 19: Connections (Notifications)
Antenna connection • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. • When installing the wall mounting bracket, it is recommended to • If the image quality is poor, install a signal amplifier properly to cover the stand hole using tape, in order to prevent the influx of improve the image quality. dust and insects. (Depending on model) • If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. • An antenna cable and converter are not supplied. • Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC Adapter connection Stand hole • Please be sure to connect the TV to the AC-DC power adapter before connecting the TV’s power plug to a wall power outlet. Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). CI module connection Connections (notifications) View the encrypted (pay) services in digital TV mode. -
Page 20: Wired Network Connection
Network connection 2 Select the START CONNECTION. (Only LAN PORT model) Wired network connection Internet connection 3 The device automatically tries to connect to the network. Wired router Network setting 1 Select the (Settings) NETWORK Network Setting menu. 4 The connected network is displayed. Select the CLOSE to confirm the network connection. -
Page 21: Remote Control
Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Audio descriptions function will be enabled. (Some buttons and services may not be provided depending on models Resizes an image. or regions.) (INPUT) Changes the input source. -
Page 22: Automatically Setting Up Programme
Eye Care settings, which can also affect energy consumption. disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 23: Resetting Picture Settings
Fine-tuning Picture Mode To set additional picture options (Settings) Picture Picture Mode Settings (Settings) Picture Picture Mode Settings Picture Options This feature allows you to adjust the selected picture mode in detail. Adjusts detailed setting for images. • Backlight : Controls the level of screen brightness by adjusting the backlight. -
Page 24: Selecting Sound Mode
• Clear Voice : Boosts voice clarity from the TV. audio output port. LG audio device allows you to enjoy rich powerful • Music : [Depending on model] Optimizes the sound for music. sound easily. - Page 25 To set password To use SIMPLINK [Depending on model] (Settings) Safety Set Password SIMPLINK is a feature that enables you to control and manage various Sets or changes the TV password. multimedia devices conveniently via the SIMPLINK menu. • The initial password is set to ‘0000’ . 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI • ...
-
Page 26: Supported Audio Formats
My Media supporting file Supported Audio Formats • Maximum data transfer rate: 20 Mbps (Mega bit per second) • File type : .mp3 • External supported subtitle formats : *.smi, *.srt, *.sub [Bit rate] 32 Kbps - 320 Kbps (MicroDVD, SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMplayer), *.psb [Sample freq.] 16 kHz - 48 kHz (PowerDivX) [Support] MPEG1, MPEG2, Layer2, Layer3... -
Page 27: To See Web Manual
• If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with To obtain detailed User Guide information, please visit www.lg.com. product. • This panel is an advanced product that contains millions of pixels. -
Page 28: Specifications
AC/DC Adapter Manufacturer : Chicony Manufacturer : Chicony Model : A16-048N2A Model : A16-065N4A Manufacturer : LG Innotek Manufacturer : LG Innotek Model : PSAC-L655 Model : PSAD-L641 Input : AC 100 - 240 V ~ 50/60 Hz Input : AC 100 - 240 V ~ 50/60 Hz Output : DC 19 V 2.53 A... - Page 29 HDMI-DTV supported mode Component port connecting information Horizontal Vertical Resolution Frequency Frequency Component ports on the TV (kHz) (Hz) 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.25 50.00 37.50...
-
Page 30: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 31: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... -
Page 32: Usb To Serial Converter With Usb Cable
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 33: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 34: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 35: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 36 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 37 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 38 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 39 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 40 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 41 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
