Summary of Contents for Zigen ZIG-POC-70L

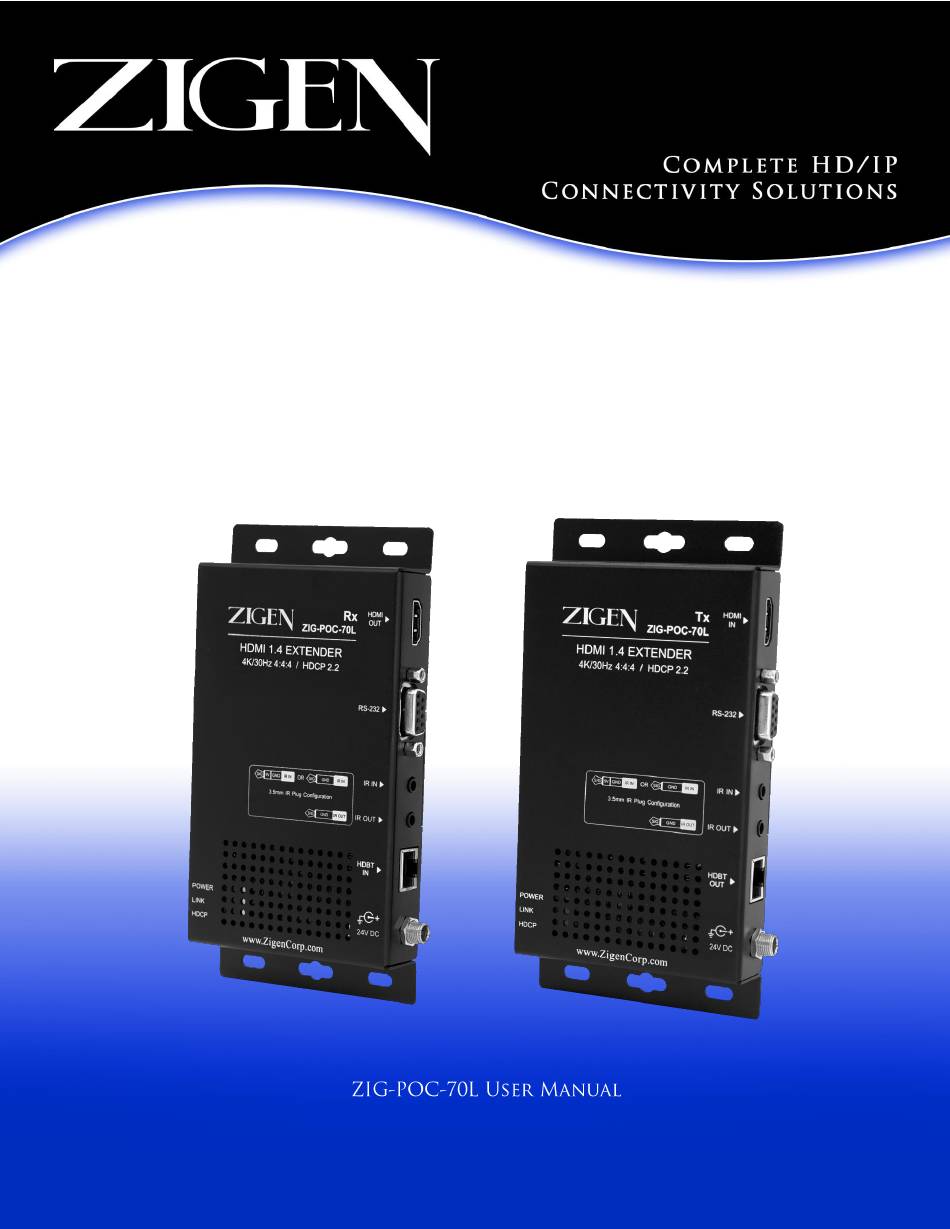

- Page 1 ZIG-POC-70L HDBaseT HDMI Extender...
- Page 2 Important Safety Instructions 1. Do not use this product near water. 2. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 3. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 Return Policy If you would like to return a Zigen product, it can be done within 30 days of purchase for a full refund, less shipping and handling. Zigen will not be responsible for shipping and handling of product returns. Returns will only be accepted of products with proof of purchase, products in the original packaging with zero to minimal use and a Return Merchandise Authorization RMA number provided by Zigen.
- Page 4 Contacting Zigen Technical Support Tel: (818) 654-5252 Fax: (818) 654-5355 8:00AM - 5:00PM (PST) Email info@zigencorp.com www.zigencorp.com Mailing Address Zigen Corp. c/o Customer Service 16135 Wyandotte Street Lake Balboa CA 91406...
- Page 5 Features • Autonomous EDID management • HDBaseT technology • Supports 10.2 Gbps • Supports HDR-8 • Supports HDMI 1.4 • HDCP 2.2 compliant • POC Technology • Supports CEC pass-through • Supports Bi-directional IR • Supports Bi-directional RS-232 • Extend 1080p signal up to 70 meters/ 230 ft. •...
- Page 6 Specifications Function HDMI Connector HDMI A-Type Female x 1 RJ-45 Connector RJ-45 Jack x 1 RS232 Connector DB9 Female x 1 3.5ψ Stereo Jack x 1 IR IN 3.5ψ Stereo Jack x 1 IR OUT LED x 3 DC Jack 12-v 12-v Max.
- Page 7 Zigen or your reseller. © 2019 Zigen, Corp. All Rights Reserved. All trademarks are the property of their respective owners. Zigen, Corp. Reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
-
Page 8: Table Of Contents
Table of Contents Introduction Introduction …………………………………………..………………………………… Transmitter Front Panel ..................10 Transmitter Back Panel ..................11 Receiver Front Panel ..................... 12 Receiver Back Panel ..................... 13 Get Started Installation ………………………………………………….…………………………… 14 System Diagram ……………………………………………………………………….. 15 Connection IR Receiver Cable Directions ................16 HDMI Connector Signal Pin Out ................ -
Page 9: Introduction
Introduction The ZIG-POC-70L is an ultra-thin HDMI1.4 Extender consist of transmitter and receiver set. It extends 1080p/4K HDMI signal including bi-directional IR and RS-232 over single CAT-5/6A cable up to 70m /35m using (PoC). This extender does not support compression and supports maximum resolution of up to... -
Page 10: Transmitter Front Panel
Transmitter Front Panel POWER - blue LED light LINK - blue LED light HDCP - blue LED light... -
Page 11: Transmitter Back Panel
Transmitter Back Panel 12-V DC Support bi-directional PoC. HDBT Connect using a CAT-5/6A cable. IR OUT Connect IR Emitter to send IR signal to source device. IR IN Connect to 3 party control processor IR out to control display device. RS-232 Connect an RS-232 cable from this port to an RS-232 device. -
Page 12: Receiver Front Panel
Receiver Front Panel POWER - blue LED light LINK - blue LED light HDCP - blue LED light... -
Page 13: Receiver Back Panel
Receiver Back Panel 24V DC Support bi-directional POC. HDBT Connect using a CAT-5/6A cable. IR OUT Connect IR Emitter to send IR signal to TV / Display. IR IN Uset provided IR receiver to control remote source devices. RS-232 Connect an RS-232 cable from this port to an RS-232 device. HDMI OUT Connect to HDTV Display. -
Page 14: Installation
Installation 1. Be sure to turn OFF source and TV. 2. Connect the HDMI extension cable between HD Source and HDMI In port of the Transmitter. 3. Connect the HDMI extension cable between the HDTV and the HDMI Out port of the Receiver. -
Page 15: System Diagram
System Diagram... -
Page 16: Ir Receiver Cable Directions
IR Receiver Cable Directions Plug the IR receiver into the ZIG-POC-70L-Tx “IR IN” port and place the IR receiver so you can point to it easily with your IR remote controller. IR Emitter Directions: Plug any third party IR emitter into the ZIG-POC-70L-Tx “IR OUT” port and place the IR... -
Page 17: Hdmi Connector Signal Pin Out
HDMI Connector Signal Pin Out Signal Signal TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock - TMDS data 2 - Reserved (N.C. on TMDS Data 1+ device) TMDS Data 1 Shield TMDS Data 1 - TMDS Data 0+ DDC/CEC Ground TMDS Data 0 Shield +5 power... -
Page 18: Rj-45 Wiring Information & Coding
RJ-45 Wiring Information & Coding Looking into connector Conductor RJ-45 Plug Pin Color Code for Identification Assignment Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown... -
Page 19: One-To-One System Connection Example
One-to-One System Connection Example...
