CONTENTS
A. BEFORE USING..........................................................................................2
B. SETTING THE TIME AND CALENDAR......................................................3
C. FUNCTIONS OF SOLAR POWERED WATCH ..........................................6
Insufficient Charge Warning Function..........................................................7
Quick Start Function ....................................................................................7
Overcharge Prevention Function .................................................................7
D. CARE AND HANDLING DURING CHARGING ..........................................8
E. ABOUT THE RECHARGEABLE CELL ......................................................9
F. TIME REQUIRED FOR CHARGING .........................................................10
G. IN THESE CASES .....................................................................................12
H. PRECAUTIONS.........................................................................................14
I. SPECIFICATIONS.....................................................................................20
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

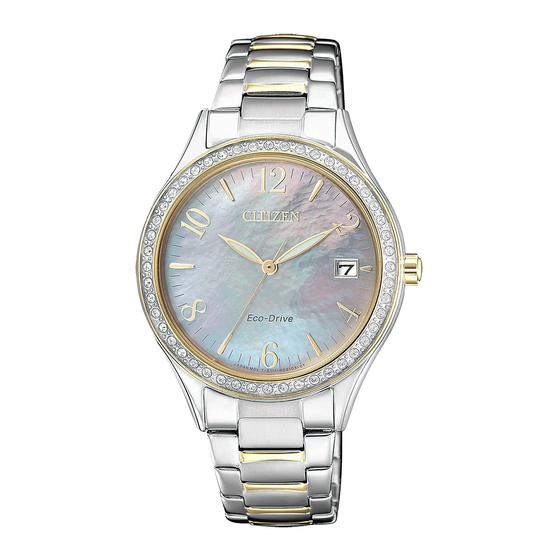

Related Manuals for Citizen EO1184-81D
Summary of Contents for Citizen EO1184-81D
-
Page 1: Table Of Contents
CONTENTS A. BEFORE USING..................2 B. SETTING THE TIME AND CALENDAR............3 C. FUNCTIONS OF SOLAR POWERED WATCH ..........6 Insufficient Charge Warning Function............7 Quick Start Function ..................7 Overcharge Prevention Function ..............7 D. CARE AND HANDLING DURING CHARGING ..........8 E. ABOUT THE RECHARGEABLE CELL ............9 F. -
Page 2: Before Using
A. BEFORE USING This watch is not powered by a conventional battery, but is powered by converting light to electrical energy. Before using, be sure to fully charge your watch by exposing it to light. (See “F. TIME REQUIRED FOR CHARGING”, for charge time reference) Once fully charged, the watch will continue to run for approximately 6 months without additional charging. -
Page 3: Setting The Time And Calendar
B. SETTING THE TIME AND CALENDAR [1] Three-hand models without calendar display * If your watch has a screw-type crown, lift up the crown to loosen it before operation. Be sure to press the crown down firmly after operation. Solar cell Time-setting position Crown Normal position... - Page 4 [2] Models with calendar (date and weekday) display * If your watch has a screw-type crown, lift up the crown to loosen it before operation. Be sure to press the crown down firmly after operation. [Date display models] [Date, day of the week display models] Solar cell Solar cell...
- Page 5 Setting the time 1. Stop the second hand by pulling the crown out to the 2nd click (time setting position). 2. Turn the crown to set the time. 3. The watch will start after the crown is firmly pushed back into its normal position.
-
Page 6: Functions Of Solar Powered Watch
C. FUNCTIONS OF SOLAR POWERED WATCH If the charge becomes insufficient, a warning function will operate and the display changes, as below. If insufficient charge continues Normal time Insufficient charge display warning display If insufficiently charged Stop If charged sufficiently One second Two second If insufficiently charged and time is set... -
Page 7: Insufficient Charge Warning Function
Insufficient Charge Warning Function The second hand changes to a two second interval movement to indicate insufficient recharging. Even in such a case, the watch keeps correct time, but about 4 days after the two second interval movement begins, the watch will stop. After exposing the watch to light, recharging takes place and the watch returns to one second interval movement. -
Page 8: Care And Handling During Charging
D. CARE AND HANDLING DURING CHARGING Notes on Use To maintain optimal performance, be sure to expose your watch to light regularly. Please note that if you wear long sleeves, your watch may be hidden from light and may result in insufficient charging. As such, additional exposure to light may be necessary. -
Page 9: About The Rechargeable Cell
E. ABOUT THE RECHARGEABLE CELL Unlike ordinary watches, the special rechargeable cell used in your watch does not need regular replacement. This is a clean energy cell that will last the life of the watch. CAUTION: The rechargeable cell should last the life of the watch. Never allow anyone other than an Authorized Service Center to replace this cell. -
Page 10: Time Required For Charging
F. TIME REQUIRED FOR CHARGING Time required for recharging may vary according to the design of the watch (color of the dial, etc) and operating environment. The following table will serve as an approximate reference: (Table of recharging) Time required Illuminance Environment One day... - Page 11 * The recharging time is the time the watch is continuously exposed to direct light. Full recharging time ...Time required to fully charge when the watch has (Empty to full) completely stopped. One day usage ..Time required to charge the watch sufficient for one-day use with one-second interval operation.
-
Page 12: In These Cases
G. IN THESE CASES [If the watch warns that the energy is running short] The second hand starts moving at two second intervals in order to warn that the watch will stop functioning after about 1 week. (Insufficient Charge Warning Function) In such a case, expose your watch to light for a while to cancel the warning. - Page 13 [If the watch warns you to set the time.] When the watch that has stopped is exposed to light, the second hand starts hitch movement. (Quick Start Function) The time elapsed before the second hand starts moving depends on the illuminance of the light. Even so, the second hand continues the hitch movement to tell you that the watch indicates an incorrect time because it had stopped.
-
Page 14: Precautions
H. PRECAUTIONS CAUTION: Water-resistance performance There are several types of water-resistant watches, as shown in the following table. Indication Specifications Case Dial (case back) Minor exposure to water (washing face, rain, etc.) WATER RESIST or WATER Water-resistant to 3 atmospheres No indication RESIST(ANT) WATER RESIST(ANT) - Page 15 For correct use within the design limits of the watch, confirm the level of water- resistance of your watch, as indicated on the dial and case, and consult the table. Examples of use Moderate exposure to water (washing, Marine sports (skin Scuba diving (with air Operation of the crown kitchen work,...
- Page 16 • If moisture has entered the watch, or if the inside of the crystal is fogged up and does not become clear within a day, immediately take the watch to your dealer or Citizen Service Center for repair. Leaving the watch in such a state will allow corrosion to form inside.
- Page 17 • If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, buttons, etc.) may come off. CAUTION: Keep your watch clean. •...
- Page 18 CAUTION: Operating environment • Use the watch within the operating-temperature range specified in the instruction manual. Using the watch where temperatures are outside the specified range, may result in deterioration of functions or even stoppage of the watch. • Do NOT use the watch in places where it is exposed to high temperature, such as in a sauna.
- Page 19 Your watch needs inspection once in every two or three years for safety and long use. To keep your watch water-resistant, the packing needs to be replaced regularly. Other parts need to be inspected and replaced if necessary. Ask for Citizen geuine parts upon replacement.
-
Page 20: Specifications
I. SPECIFICATIONS 1. Type: Analog solar powered watch 2. Accuracy: Within ±15sec/month (within a normal temperature range of 5°C/41°F to 35°C/95°F) 3. Quartz oscillator frequency: 32,768Hz 4. IC: C/MOS-LSI (1 pc.) 5. Operational temperature range: –10°C/14°F to +60°C/140°F 6. Display features: Time: hour, minute, second Calendar: date, day of the week (Models with calendar display)
