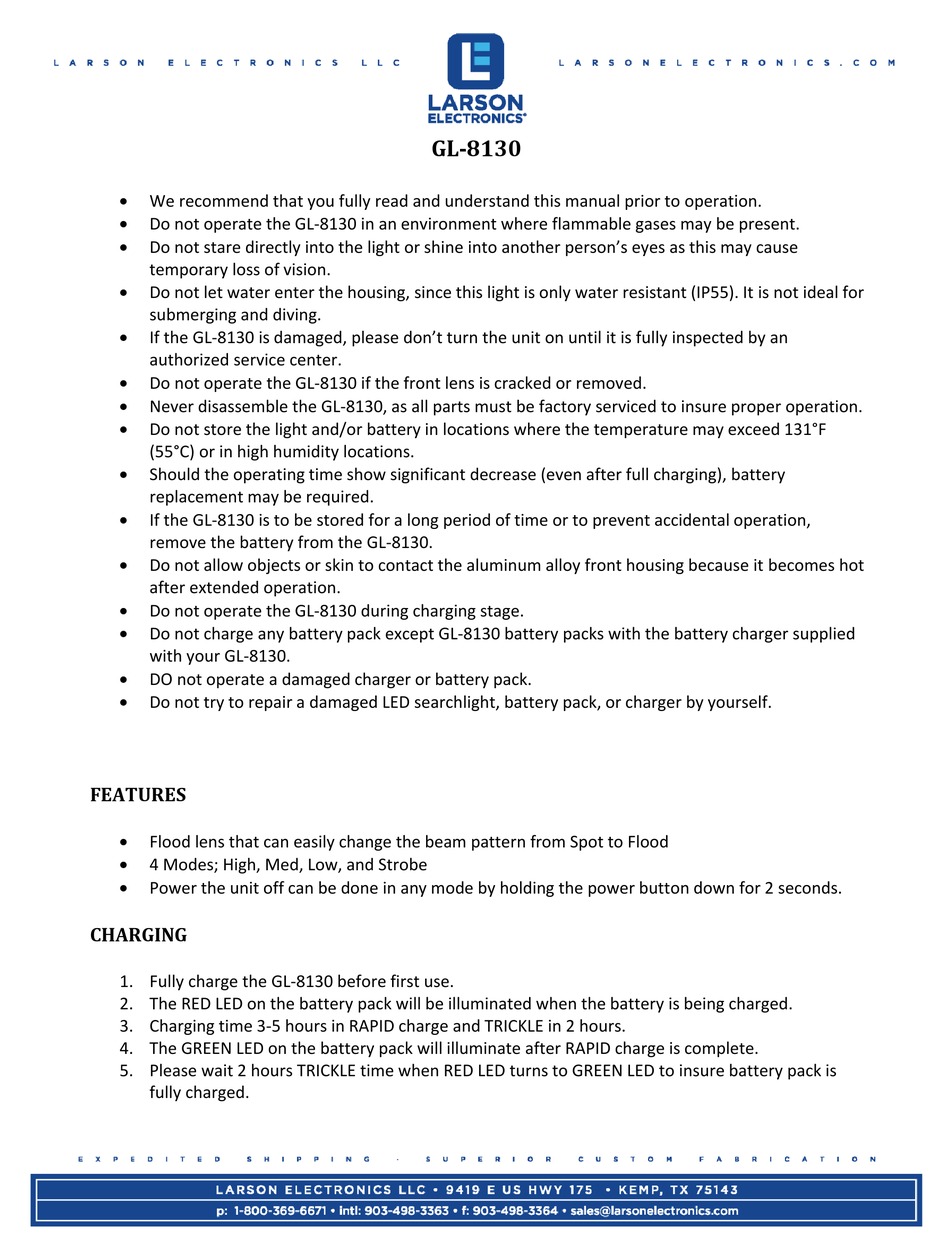

Larson Electronics GL-8130 Quick Start Manual


We recommend that you fully read and understand this manual prior to operation.
 Do not operate the GL-8130 in an environment where flammable gases may be present.

Do not stare directly into the light or shine into another person's eyes as this may cause
temporary loss of vision.

Do not let water enter the housing, since this light is only water resistant (IP55). It is not ideal for
submerging and diving.
If the GL-8130 is damaged, please don't turn the unit on until it is fully inspected by an

authorized service center.
 Do not operate the GL-8130 if the front lens is cracked or removed.
 Never disassemble the GL-8130, as all parts must be factory serviced to insure proper operation.

Do not store the light and/or battery in locations where the temperature may exceed 131°F
(55°C) or in high humidity locations.

Should the operating time show significant decrease (even after full charging), battery
replacement may be required.
 If the GL-8130 is to be stored for a long period of time or to prevent accidental operation,
remove the battery from the GL-8130.

Do not allow objects or skin to contact the aluminum alloy front housing because it becomes hot
after extended operation.
Do not operate the GL-8130 during charging stage.

Do not charge any battery pack except GL-8130 battery packs with the battery charger supplied

with your GL-8130.

DO not operate a damaged charger or battery pack.

Do not try to repair a damaged LED searchlight, battery pack, or charger by yourself.

FEATURES


Flood lens that can easily change the beam pattern from Spot to Flood

4 Modes; High, Med, Low, and Strobe

Power the unit off can be done in any mode by holding the power button down for 2 seconds.

CHARGING

1. Fully charge the GL-8130 before first use.
2. The RED LED on the battery pack will be illuminated when the battery is being charged.
3. Charging time 3-5 hours in RAPID charge and TRICKLE in 2 hours.
4. The GREEN LED on the battery pack will illuminate after RAPID charge is complete.
5. Please wait 2 hours TRICKLE time when RED LED turns to GREEN LED to insure battery pack is
fully charged.
GL-8130
