NEC MultiSync EA304WMi User Manual page 9

3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position.

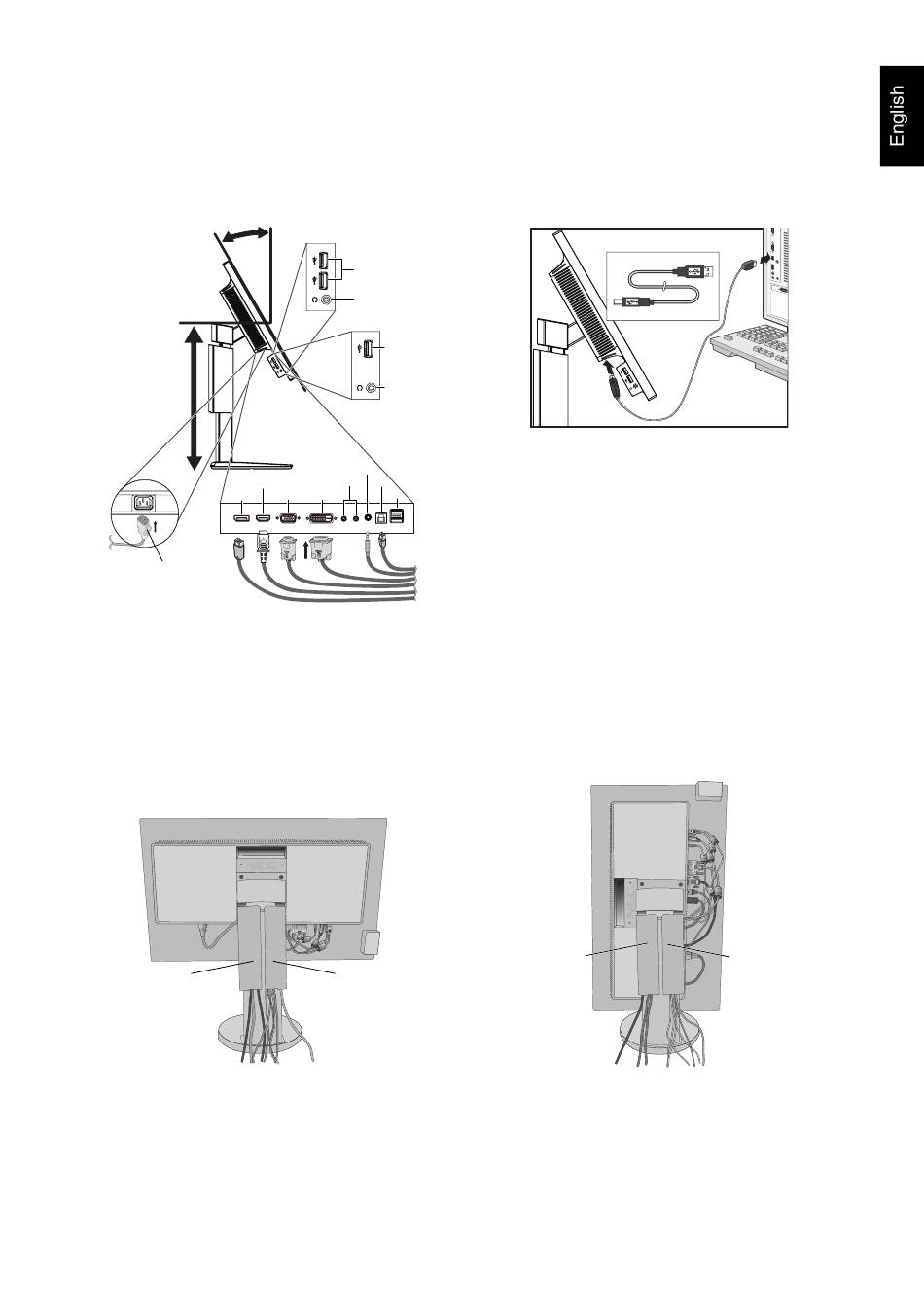

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into the downstream port of the monitor.
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of LCD module and/
or shorten the module's life.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
30° Tilt
Highest
Stand
Position
DisplayPort DisplayPort
Power cord
Figure C.1
*: See page 24.
1
* : DualLink.
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
NOTE: Cable cover is not removable.
6. Please check that you can still rotate, raise and lower the monitor screen after you have installed the cables.
Power Cord
DisplayPort Cable
HDMI Cable* 2
Figure C.2
* 2 : Cable not included.
* 3 : ø 3.5 stereo mini plug.
4
* : The type and number of cables included will depend on the where the LCD monitor is to be shipped.
7. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet.
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
EA274WMi
USB 2.0 Downstream
Headphone
USB 2.0 Downstream
Headphone
EA304WMi EA304WMi
Audio Input Audio Input
ControlSync IN/OUT* USB 3.0 Upstream
HDMI USB 3.0 Upstream
D-SUB DVI* 1 USB 3.0 Downstream USB 3.0 Downstream
DVI Cable* 4
D-SUB Cable* 2
2, 3
Audio Cable* *
ControlSync Cables
USB Cables
B Type
Power Cord
DisplayPort Cable
HDMI Cable* 2
English-7
A Type
A Type
B Type
Figure C.1a
DVI Cable*
D-SUB Cable*
Audio Cable*
ControlSync Cables
USB Cables
Figure C.3
4
2
2, 3
*
