MultiSync EA232WMi
User's Manual

Advertisement

loading

  Also See for NEC MultiSync EA232WMI

  Related Manuals for NEC MultiSync EA232WMI

  Summary of Contents for NEC MultiSync EA232WMI

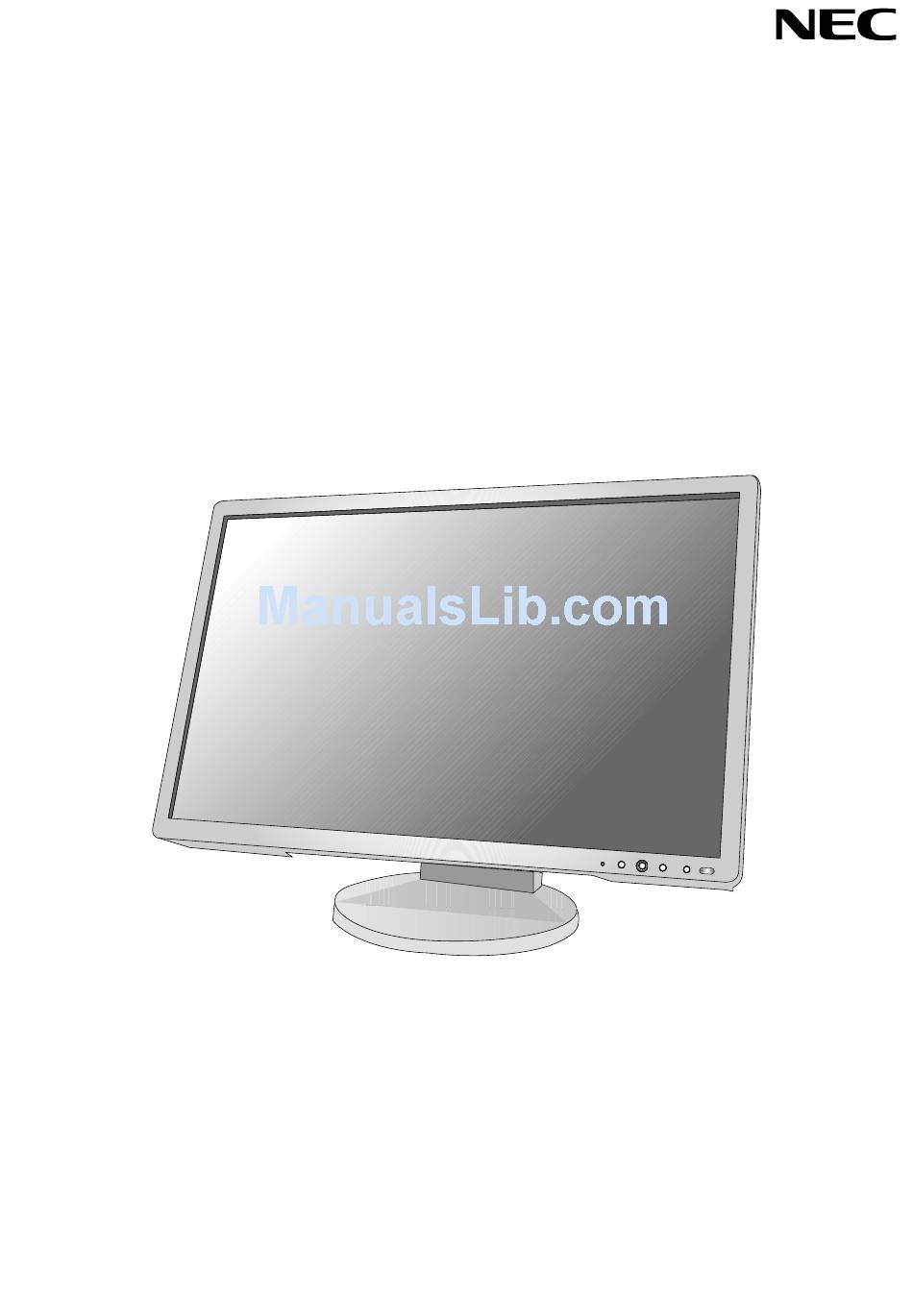

  • Page 1 MultiSync EA232WMi User’s Manual...
  • Page 2: Table Of Contents

    Index Warning, Caution ... English-1 Registration Information ... English-1 Recommended use ... English-3 Contents ... English-5 Quick Start ... English-6 Controls ... English-11 Specifications ...English-15 Features ...English-16 Troubleshooting ...English-17 Using the Auto Brightness function ... English-18 TCO Displays 5 ...English-19 Manufacturer’s Recycling and Energy Information ...
  • Page 3: Warning, Caution

    U.S.A./Canada Voltage 120* *When operating the MultiSync EA232WMi monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. NOTE: This product can only be serviced in the country where it was purchased.
  • Page 4: Canadian Department Of Communications Compliance Statement

    C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specified cables with the MultiSync EA232WMi (L230U1) color monitor so as not to interfere with radio and television reception.
  • Page 5: Recommended Use

    Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire. • Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
  • Page 6 For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
  • Page 7: Contents

    Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD monitor with tilt/swivel/pivot/height adjust stand • Power Cord • Cable cover • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) •...
  • Page 8: Quick Start

    USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the computer (Figure C.1a). If you can use the cord from the USB device, use one of the downstream ports on the side of the monitor.
  • Page 9 Place the D-Sub and the USB cables into the specific hooks, as indicated in Figure C.2/Figure C.3. 6. Make sure all cables are resting flat against the stand (Figure C.2/Figure C.3). Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables. DVI Cable...
  • Page 10: Raise And Lower Monitor Screen

    If you have any problems, please refer to the Troubleshooting section of this User’s Manual. Raise and Lower Monitor Screen The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
  • Page 11: Screen Rotation

    Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover (Figure S.1). 2. Disconnect all cables. 3. Place monitor face down on a non-abrasive surface (Figure S.2).
  • Page 12: Flexible Arm Installation

    2. Using the 4 screws from the stand removal, attach the arm to the monitor (Figure F.1). NOTE: 1. When mounting, use ONLY the screws (4 pcs) that were removed from the stand to avoid damage to the monitor or stand.
  • Page 13: Controls

    OSD must be closed in order to change signal input. Button Menu 1 Ambibright Sensor Detects the level of ambient lighting allowing the monitor to make adjustments to various settings resulting in a more comfortable viewing experience. Do not cover this sensor. 2 MENU Opens OSD main menu.
  • Page 14: Auto Brightness

    AUTO BRIGHTNESS OFF: No function. (AUTO BRIGHTNESS) 1: Automatically adjusts the brightness to the optimal setting by detecting the brightness level of the environment* (AUTO BRIGHTNESS) 2: Automatically adjusts the brightness to the optimal brightness setting based on the white display area.
  • Page 15: Menu Tools

    FIRST: The video input has to be switched to “FIRST” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.
  • Page 16: Eco Information

    Information The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated. OSD Warning OSD Warning menus disappear with Exit button.
  • Page 17: Specifications

    @ 60 Hz to 75 Hz 1400 x 1050* @ 60 Hz 1440 x 900* @ 60 Hz 1920 x 1080 @ 60 Hz... NEC DISPLAY SOLUTIONS cites recommended. 510 mm/20.0 inches 287 mm/11.3 inches 287 mm/11.3 inches 510 mm/20.0 inches USB Specification Revision 2.0...
  • Page 18: Features

    Carbon conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition). This monitor has a manufacturing carbon footprint of approximately 27.4 kg. Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC for its monitors.
  • Page 19: Troubleshooting

    To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
  • Page 20: Using The Auto Brightness Function

    BRIGHTNESS setting. Choose the desired brightness level (Figure 2). Figure 1 2. Set the DARK level. This is the level of brightness that the monitor will go down to when the ambient light level is low. Make sure the room is at its darkest when setting this level.
  • Page 21: Tco Displays 5

    TCO Displays 5 This display is designed for both you and the planet! TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide.
  • Page 22: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

This manual is also suitable for:

Ea232wmi-bk-rEa232wmi-bk
