Contents

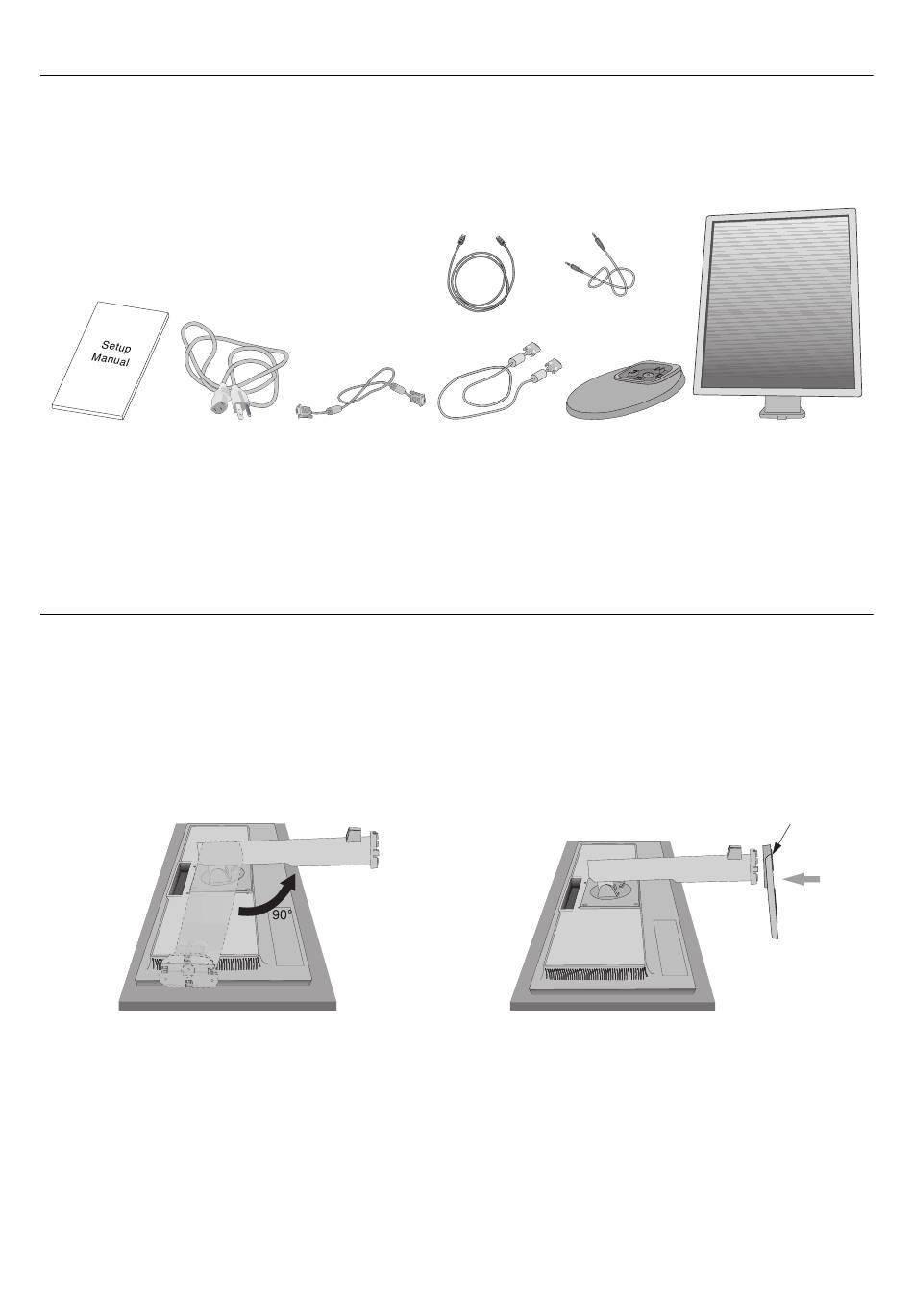

Your new NEC LCD monitor box* should contain the following:
• LCD monitor with tilt base
• Power Cord* 1
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)*
• Video Signal Cable (DVI-D to DVI-D cable)*
• Video Signal Cable (DisplayPort cable)*
• Setup Manual
• Base Stand
• Audio cable* 2, * 4
Setup Manual Power Cord*
* Remember to save your original box and packing material to transport or ship the monitor.
1
* Type of power cord included will depend on the where the LCD monitor is to be shipped.
* 2 E243WMi only.
* 3 For North America version.
* 4 For Europe version.

Quick Start

To attach the Base to the LCD stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
NOTE: Handle with care when monitor facing down, for avoiding damage to the front control buttons.
2. Please pivot base 90 degrees as shown in Figure 1.
NOTE: Handle with care when pulling the stand.
3. Attach the base stand to LCD monitor and properly lock screw of base stand bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
4
3
1 Mini D-SUB 15 pin to
Mini D-SUB 15 pin*
Figure 1
4
Audio Cable*
3
DisplayPort cable*
DVI-D to DVI-D
4 4
cable*
English-6
2, 4
*
Base Stand LCD monitor
(Base Stand not connected)
Figure 2
Screw
