Quick Start

To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read "Recommended Use" (page 3) before installation.
The accessories included will depend on the where the LCD monitor is to be shipped.
1. Turn off the power of your computer.

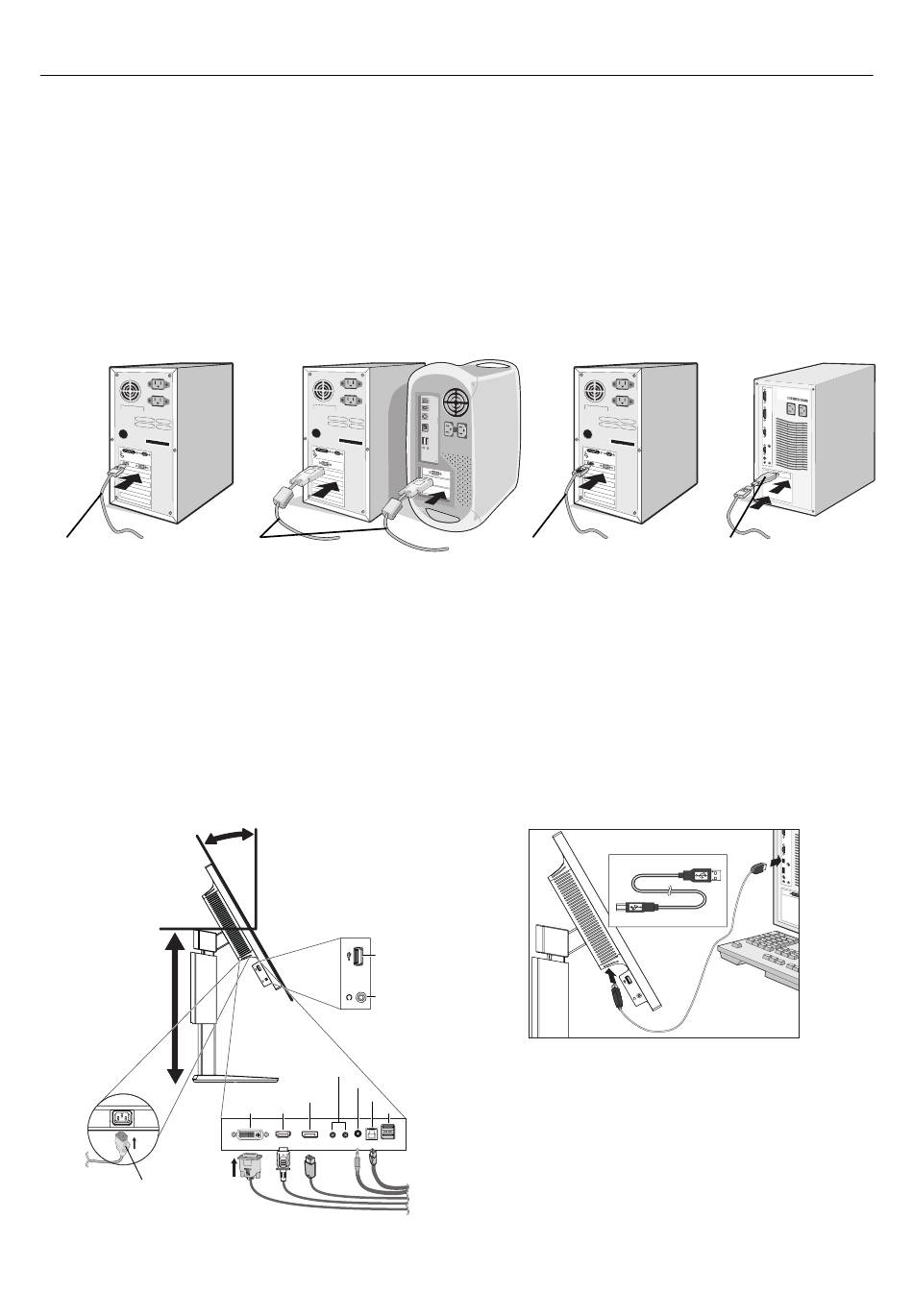

2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.1).
For a MAC with Thunderbolt output: Connect a Mini DisplayPort to DisplayPort adapter to the computer and then attach
the DisplayPort cable to the adapter and to the display (Figure A.4).
For a PC or MAC with DVI digital output: Connect the DVI cable to the connector of the display card in your system
(Figure A.2). Tighten all screws.
NOTE: Some Macintosh systems do not require any Macintosh cable adapter.
For a PC with HDMI output: Connect the HDMI cable to the connector of the display card in your system (Figure A.3).
DisplayPort cable DisplayPort cable
Figure A.1
NOTE: 1. Please use a High Speed HDMI cable with HDMI logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Please use a DisplayPort Certifi ed DisplayPort cable.
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position.
4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cable from a USB device, plug into one of the downstream ports of the monitor.
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of LCD module and/
or shorten the module's life.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
30° Tilt
Highest
Stand
Position
Power cord
Figure C.1
*: See page 25.
1
* : Dual Link.
DVI cable DVI cable
Figure A.2
USB 2.0 Downstream
Headphone
ControlSync IN/OUT* ControlSync IN/OUT*
Audio Input Audio Input
DisplayPort DisplayPort IN USB 3.0 Upstream USB 3.0 Upstream
1
DVI* HDMI USB 3.0 Downstream USB 3.0 Downstream
HDMI cable HDMI cable
Figure A.3
B Type
NOTE: Adjustment of the volume control as well as
the equalizer to other settings than the center
position may increase the ear-/headphones
output voltage and therefore the sound
pressure level.
English-6
Macintosh Cable Adapter Macintosh Cable Adapter
Figure A.4
A Type
A Type
B Type
Figure C.1a
