In order to continue serving our customers
and providing the best products, our
product information including our user
manuals may receive updates from time
to time. Please check our website for the
latest user manuals and product materials.
Version 4.0 6/05/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbolock TL114

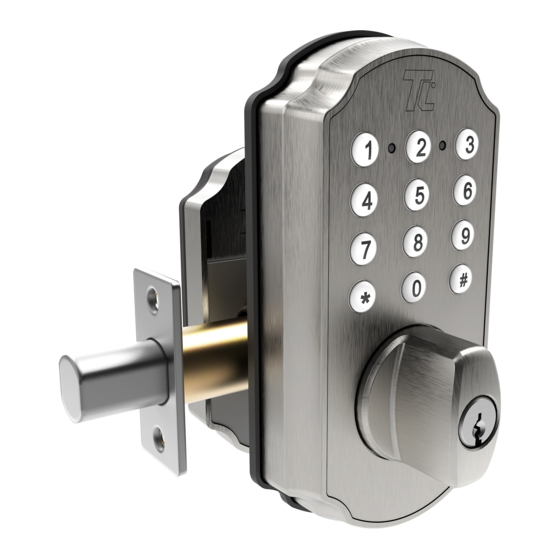

Summary of Contents for Turbolock TL114

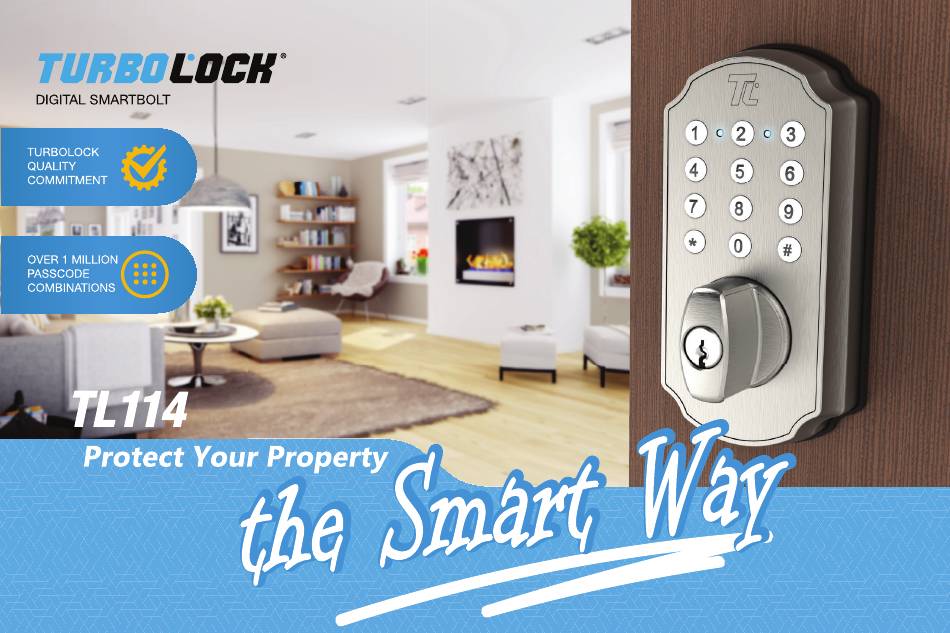

  • Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Version 4.0 6/05/20...
  • Page 2 Customer Service: 855-850-8031...

  • Page 3: Table Of Contents

    Table of Contents Section 1 Section 6 Section 12 Information & Safety Warnings Keypad Passcodes Warranty 1.1 Introduction 6.1 Changing the Admin Passcode 12.1 Violation 1.2 Safety Warnings 6.2 Adding Keypad Passcodes 12.2 Information 1.3 End-of-Life Disposal 6.3 Delete a Single Passcode 6.4 Delete All Passcodes Section 2 6.5 Passcode Disguise...

  • Page 4: Information & Safety Warnings

    1.1 Introduction This user manual will guide you through the functions and usage of your TURBOLOCK TL114. It is important that you follow all instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use your lock. If you have questions not answered by this manual or are in need of repair or non-routine service, contact customer service at 1-855-850- 8031.

  • Page 5: End-Of-Life Disposal

    The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any TURBOLOCK TL114 at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of certain types of batteries and/or products containing them will vary according to country, state, and local governments.

  • Page 6: Package Contents & Overview

    Section 2 Package Contents & Overview 2.1 Contents TL114 Lock x 1 Outside Knob x 1 Inside Knob x 1 Latch Assembly x 1 Wood Screws x 6 Mounting Screws x 2 Keys x 3 - Mounting screws may already be inside the lock upon opening.

  • Page 7: Battery Information

    2.4 Usage Overview When using keypad passcodes, the TL114’s backlight will turn on. The door can only be opened while the backlight is on. After a couple seconds of inactivity, the backlight will turn off and the TL114 will automatically lock. You can also use one of the included physical keys to open the lock directly.

  • Page 8: Installation (Retrofit)

    • For easier installation, have another person help to hold the lock. • Remove all parts of any old lock before installing the TL114. In some cases, the old strike plate and/or box may be used. • For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre- Installation and Main Installation.
  • Page 9 (Fig. 4) (Fig. 5) Part 3 - Installing the Strike In most cases, the existing strike plate and setup can be used. If you wish to use the one included with your lock, skip to Section 4.1, Part 3. TURBOLOCK TL114...

  • Page 10: Main Installation

    Step 6. Assemble the inside section on door by aligning mounting holes on the latch and inside section.Ensure the latch pin is HORIZONTAL when inserting it into inside section. Then secure the inside section on the door with mounting screws. (Fig. 11) TURBOLOCK TL114...
  • Page 11 After fully testing the lock, be sure to change the default admin passcode. If the lock doesn’t work properly, please disassemble and follow above instructions to install again. BATTERY Mounting Screws Fig. 11 Fig. 12 Fig. 13 TURBOLOCK TL114...

  • Page 12: Installation (New)

    This section details installation steps needed if you are installing the TL114 on a door without a cutout. If you are using the TL114 to replace an old lock or if your door otherwise already has a cutout, please go back to Section 3.
  • Page 13 During chiseling, it’s highly recommended to stop and reinsert the latch every once in a while to see if it sits flush. If not, chisel a little more and check again. Be careful not to chisel too deep; otherwise, the lock may not function correctly after installation. (Fig. 17) TURBOLOCK TL114...
  • Page 14 (Fig. 20). If using a spade bit, do not drill at high speeds as this may tear out extra wood and/or damage the door or doorframe. (Fig. 20) TURBOLOCK TL114...
  • Page 15 Set the strike and strike box aside and drill two small holes at each center point. Step 9. Position the strike and strike box. Add the two remaining Wood Screws and use a screwdriver (not included) to secure them (Fig. 20). TURBOLOCK TL114...

  • Page 16: Main Installation

    Step 6. Assemble the inside section on door by aligning mounting holes on the latch and inside section.Ensure the latch pin is HORIZONTAL when inserting it into inside section. Then secure the inside section on the door with mounting screws. (Fig. 11) TURBOLOCK TL114...
  • Page 17 After fully testing the lock, be sure to change the default admin passcode. If the lock doesn’t work properly, please disassemble and follow above instructions to install again. BATTERY Mounting Screws Fig. 11 Fig. 12 Fig. 13 TURBOLOCK TL114...

  • Page 18: Using The Lock

    Section 5 Using the Lock To unlock the TL114, use the keypad to enter the passcode, then press ‘#’. The TL114 will unlock after the voice confirmation (“Opened”) and will automatically lock again after a few seconds. The Admin Passcode must be changed from the default. See Section 6.

  • Page 19: Adding Keypad Passcodes

    Keypad passcodes can be generated so that more people can gain entry access as needed. USE WITH CAUTION. Anyone with the keypad passcode can unlock the TL114 until the keypad passcode is deleted. • The admin must create passcodes for users.

  • Page 20: Delete All Passcodes

    As long as the correct passcode sequence is entered, regardless of how many digits were entered before or afterwards, the TL114 will unlock. For example, if your user passcode is “080808”, you can successfully unlock the TL114 by entering “11354080808”, “11080808”, “10808081” and so on.

  • Page 21: Using The Mute Function

    “To activate mute function, please press 6.” Step 2. Press ‘6’ and then ‘#’. After the voice confirmation (“Mute mode activated”), the TL114 will be muted and will remain so until the feature is turned off. 7.2 Deactivating Mute Mode Step 1.

  • Page 22: Resetting The Lock

    “To restore the default factory setting, please press 5.” Step 2. Press ‘5’ followed by ‘#’ before the lock’s backlight turns off. The TL114 will confirm “Restore factory settings,” then flash three times. After the voice confirmation (“Success”), the TL114 is now reset.

  • Page 23: Specifications

    Warranty 1 Year Limited Section 10 Maintenance Proper cleaning and maintenance of your lock ensures it will continue to work as it should. • For most cleaning purposes, use clean (or purified) water and a soft, non-abrasive cloth. TURBOLOCK TL114...

  • Page 24: Troubleshooting

    After cleaning with a cleaner or detergent, wipe off any residue using a second non-abrasive cloth. Be sure to dampen the cloth with clean (purified) water. • The TL114 meets IP65 water-resistance. It can withstand splashes and contact with water once properly installed; however, do not submerge the lock. •...
  • Page 25 The batteries are entirely dead and/or Replace the batteries. were not replaced in a timely manner. Use one of the physical keys to lock and unlock the TL114. Replace the batteries. Use the emergency power port to power the lock so that the door opens.

  • Page 26: Warranty

    Once the reset is complete, all passcodes will be erased and the Admin Passcode will return to the default value (see Section 6). If none of the above resolves your issue, please visit our website at www.turbolock.com or contact customer service at 855-850-8031. Section 12 Warranty 12.1 Violation...
  • Page 27 Warranty services are provided by TURBOLOCK Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;...
  • Page 28 COPYRIGHT © 2020 TURBOLOCK. ALL RIGHTS RESERVED.
