Summary of Contents for Turbolock TL115
- Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Version 1.0 7/26/19...
- Page 2 Customer Service: 855-850-8031...
-
Page 3: Table Of Contents
2.4 Usage Overview 7.2 Deactivating Mute Mode 13.1 Violation 13.2 Information Section 3 Section 8 Installation (Retrofit) The TurboLock Plus App 3.1 Pre-Installation 8.1 App Installation 3.2 Main Installation 8.2 Pairing 8.3 App Usage Section 4 8.4 Generating Keypad Passcodes Installation (New) 8.5 Managing User Passcodes (E-Keys) -
Page 4: Information & Safety Warnings

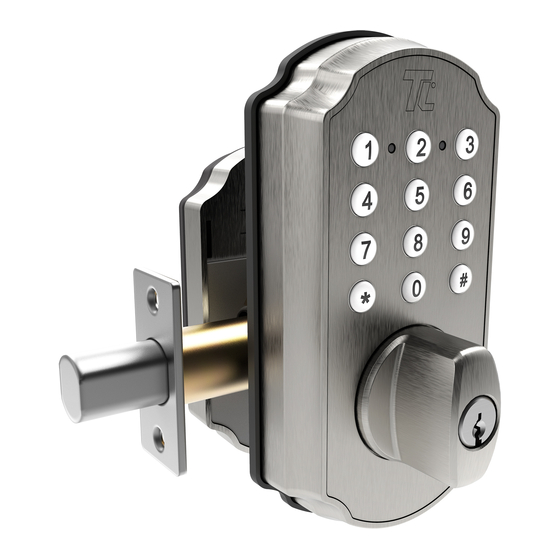

1.1 Introduction This user manual will guide you through the functions and usage of your TURBOLOCK TL115 Bluetooth-enabled Smartlock. It is important that you follow all instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use your lock. -
Page 5: End-Of-Life Disposal
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any TURBOLOCK TL115 at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of certain types of batteries and/or products containing them will vary according to country, state, and local governments. -
Page 6: Package Contents & Overview
Section 2 Package Contents & Overview 2.1 Contents TL115 Bluetooth-enabled Smartlock x 1 Outside Knob x 1 Inside Knob x 1 Latch Assembly x 1 Wood Screws x 6 Mounting Screws x 2 Keys x 3 - Mounting screws may already be inside the lock upon opening. -
Page 7: Battery Information
2.4 Usage Overview When using the app or passcodes, the TL115’s backlight will turn on. The door can only be opened while the backlight is on. After a couple seconds of inactivity, the backlight will turn off and the TL115 will automatically lock. You can also use one of the included physical keys to open the lock directly. -
Page 8: Installation (Retrofit)
• For easier installation, have another person help to hold the lock. • Remove all parts of any old lock before installing the TL115. In some cases, the old strike plate and/or box may be used. • For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre- Installation and Main Installation. - Page 9 (Fig. 4) (Fig. 5) Part 3 - Installing the Strike In most cases, the existing strike plate and setup can be used. If you wish to use the one included with your lock, skip to Section 4.1, Part 3. TURBOLOCK TL115...
-
Page 10: Main Installation
Step 4. Gently feed the other power cable through the hole of inside section to snap it into the cable connectors. Then feed the connected power cable into the hole of door (Fig. 10). Extended Retracted Fig. 7 Compartment Cover Fig. 8 Fig. 10 Fig. 9 TURBOLOCK TL115... - Page 11 Step 8. The lock should now be ready to use. It’s highly recommended to use the default passcode and the app to test the lock before closing the door. See Section 6 for information on the default admin passcode. See Section 8 for information on the app. TURBOLOCK TL115...
-
Page 12: Installation (New)
This section details installation steps needed if you are installing the TL115 on a door without a cutout. If you are using the TL115 to replace an old lock or if your door otherwise already has a cutout, please go back to Section 3. - Page 13 During chiseling, it’s highly recommended to stop and reinsert the latch every once in a while to see if it sits flush. If not, chisel a little more and check again. Be careful not to chisel too deep; otherwise, the lock may not function correctly after installation. (Fig. 17) TURBOLOCK TL115...
- Page 14 (Fig. 20). If using a spade bit, do not drill at high speeds as this may tear out extra wood and/or damage the door or doorframe. (Fig. 20) TURBOLOCK TL115...
-
Page 15: Main Installation
The latch pin must be horizontal while inserting the square hole in latch (Fig. 6). Horizontal Latch Pin Do NOT force the cable’s connector end through any part of the lock. Damaging the connector may make the lock unusable. Fig. 6 TURBOLOCK TL115... - Page 16 (Fig. 11). Always keep the bolt extended and the thumb turn vertical throughout the installation (Figs. 7 & 8). Compartment Cover Mounting Screws Fig. 10 Fig. 11 Fig. 9 TURBOLOCK TL115...
- Page 17 Step 8. The lock should now be ready to use. It’s highly recommended to use the default Passcode and the app to test the lock before closing the door. See Section 6 for information on the default admin Passcode. See Section 8 for information on the app. TURBOLOCK TL115...
-
Page 18: Using The Lock
Section 5 Using the Lock To unlock the TL115, use the keypad to enter the passcode, then press ‘#’. The TL115 will unlock after the voice confirmation (“Opened”) and will automatically lock again after a few seconds. The Admin Passcode must be changed from the default. See Section 6. -
Page 19: Adding Keypad Passcodes
Keypad passcodes can be generated so that more people can gain entry access as needed. USE WITH CAUTION. Anyone with the keypad passcode can unlock the TL115 until the keypad passcode is deleted. If more control is needed, refer to Section 8. -
Page 20: Delete A Single Passcode
This function is an added security feature aimed at preventing Passcode theft. With Passcode Disguise, you may enter 12 digits into the keypad. As long as the correct Passcode sequence is entered, regardless of how many digits were entered before or afterwards, the TL115 will unlock. TURBOLOCK TL115... -
Page 21: Using The Mute Function
“To activate mute function, please press 6.” Step 2. Press ‘6’ and then ‘#’. After the voice confirmation (“Mute mode activated”), the TL115 will be muted and will remain so until the feature is turned off. 7.2 Deactivating Mute Mode Step 1. -
Page 22: App Installation
Step 3. Open the app, tap the icon on the lock list screen, then select the lock. The app will begin pairing. Step 4. Tap any confirmation messages as needed. The TL115 might beep and open upon pairing for the first time. TURBOLOCK TL115... -
Page 23: App Usage
( ). Unlock Records: Tap to view recent unlock records, even if the Bluetooth status icon is lit off ( ). Reset Admin: Tap to reset admin passcode. Bluetooth status icon must indicate successful connection ( ). TURBOLOCK TL115... -
Page 24: Generating Keypad Passcodes
8.4 Generating Keypad Passcodes For users without the TurboLock Plus app, the Admin can generate a 6-digit passcode that users can manually enter on the TL115 keypad to unlock. This 6-digit code can be revoked at any time by the Admin. This is a temporary unlock code that can be used 1-3 times, as assigned by the Admin. -
Page 25: Managing User Passcodes (E-Keys)
8.5 Managing User Passcodes (E-Keys) User Passcodes (E-Keys) are generated on the TurboLock Plus app by the Admin and sent to a user. That user must install the TurboLock Plus app on their smartphone and register for a TURBOLOCK account. -
Page 26: Resetting The Lock
“To restore the default factory setting, please press 5.” Step 2. Press ‘5’ followed by ‘#’ before the lock’s backlight turns off. The TL115 will confirm “Restore factory settings,” then flash three times. After the voice confirmation (“Success”), the TL115 is now reset. -
Page 27: Specifications
Application Systems Requests IOS 9.0 or Android 5.1 above Micro USB 1 x USB (mobile power bank) Usage Temp. -4°F~140°F (-20°C~60°C) Door requirements 2.16” (5.5cm) diameter hole, 1.38” - 2.16” (3.5cm - 5.5cm) thickness Warranty 1 Year Limited TURBOLOCK TL115... -
Page 28: Maintenance
• After cleaning with a cleaner or detergent, wipe off any residue using a second non-abrasive cloth. Be sure to dampen the cloth with clean (purified) water. • The TL115 meets IP65 water-resistance. It can withstand splashes and contact with water once properly installed; however, do not submerge the lock. - Page 29 Replace the batteries. were not replaced in a timely manner. Use one of the physical keys to lock and unlock the TL115. Replace the batteries. Use the emergency power port to power the lock so that the door opens. Replace the batteries.
- Page 30 Section 6). You will need to pair the TL115 to your smartphone again. See Section 8.2 for details. If none of the above resolves your issue, please visit our website at www.turbolock.com or contact customer service at 855-850-8031. TURBOLOCK TL115...
-
Page 31: Warranty
Warranty services are provided by TURBOLOCK Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 32 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. TURBOLOCK TL115...
- Page 35 COPYRIGHT © 2019 TURBOLOCK. ALL RIGHTS RESERVED.
