Theory of Operation

The DXE-CC-8A has two easy to use rear panel connector plugs and sockets for control line
connections plus one connection for +12 Vdc. The two green plugs are easy to wire. Connections
are made with a screwdriver; no soldering is required. Not only does this make the CC-8A easy to
install, it also allows easy quick disconnect during periods of extended non-use for lightning
protection or if the CC-8A is relocated to another area of your operating position. The brightness
adjustment for the front antenna switch LED (Light Emitting Diode) indicators is also located on
the rear panel. The CC-8A has an attractive wear resistant laminated front panel to maintain
appearance even with constant use.

Installation

The CC-8A is designed for indoor use only. Mount the CC-8A at any convenient location but avoid
condensation, exposure to heat from amplifiers or other high power equipment. Constant exposure
to temperatures above 150 degrees F (65C) will shorten the life of the CC-8A, and should be
avoided.

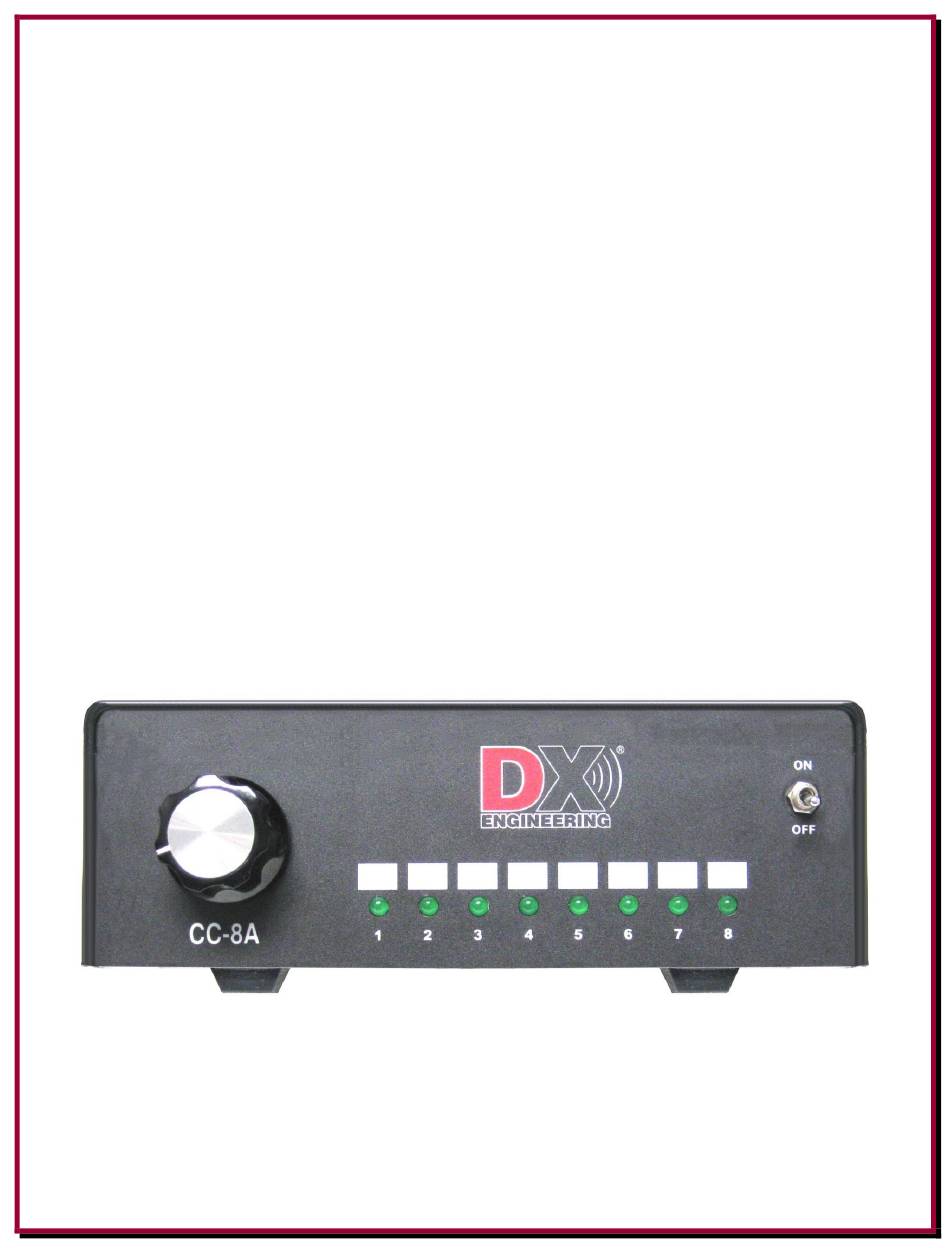

Front Panel

Eight Position Knob
Eight Green LEDs
Power On/Off Toggle Switch
Figure 1 - Front Panel
3
