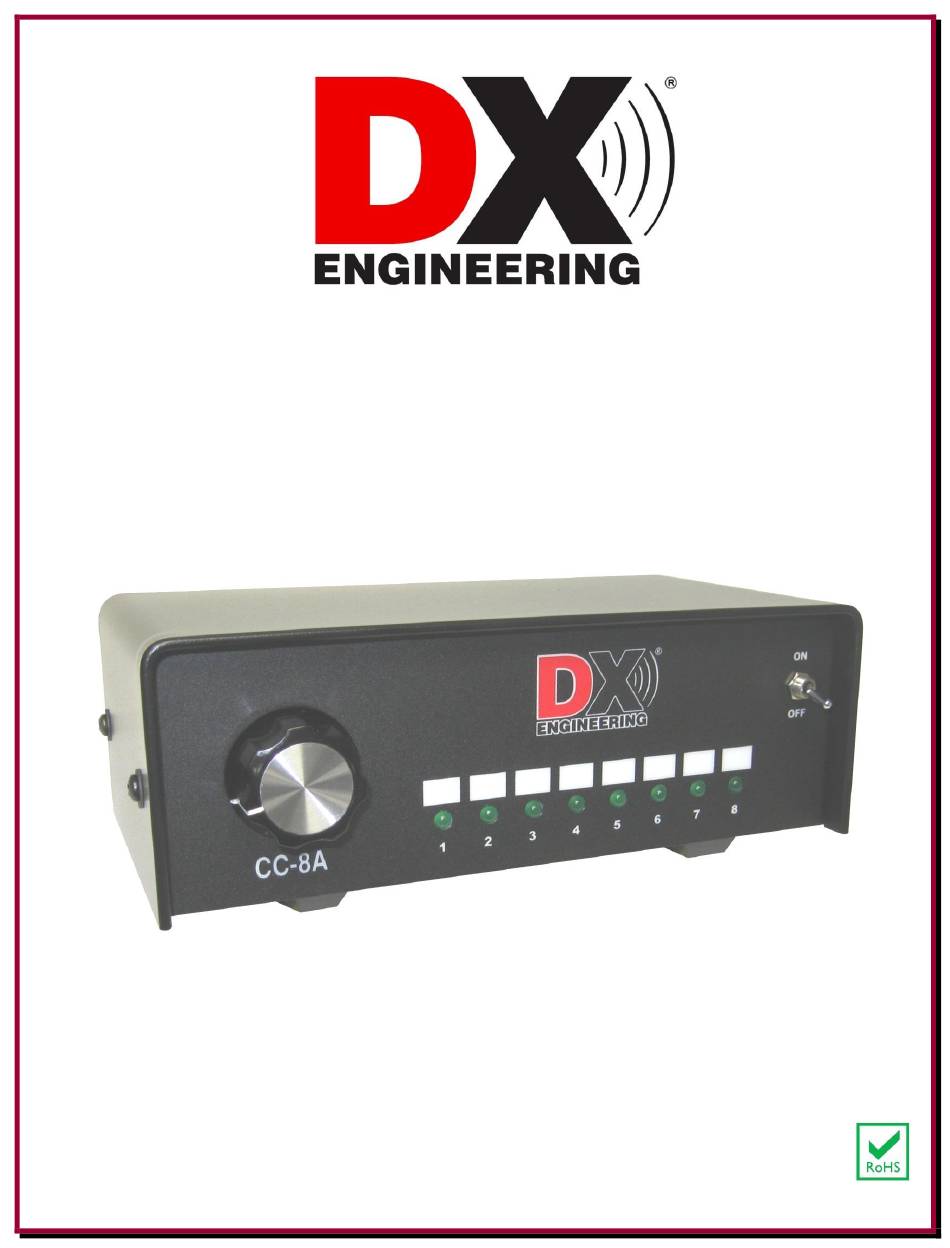

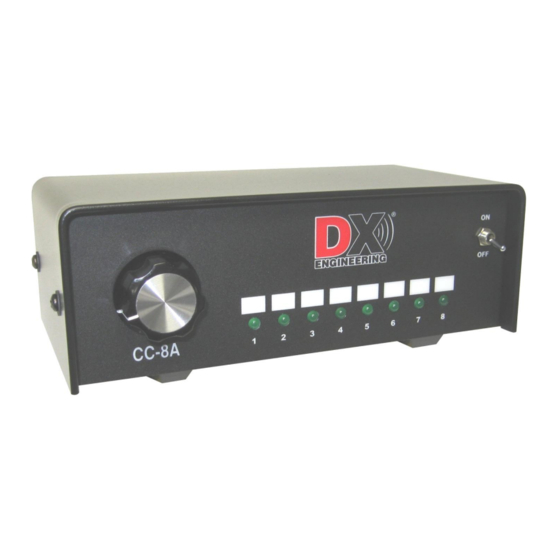

- Page 1 CC-8A Control Console DXE-CC-8A DXE-CC-8A-INS Revision 1c © DX Engineering 2017 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com...
- Page 2 DXE-FVC-1. Its universal nature allows operation with any 1-of-8 or BCD system of compatible voltage. We know you are anxious to get started but before you install the CC-8A, take a few minutes to read this brief user guide and familiarize yourself with the installation, operation and safety procedures.
- Page 3 +12 Vdc. The two green plugs are easy to wire. Connections are made with a screwdriver; no soldering is required. Not only does this make the CC-8A easy to install, it also allows easy quick disconnect during periods of extended non-use for lightning protection or if the CC-8A is relocated to another area of your operating position.
- Page 4 J2 - BCD Connector Figure 2 - Rear Panel The CC-8A has two removable plug and socket connectors for control line connections on the rear panel. Connections are made with a screwdriver; no soldering is required. Do not attempt to solder wires to the connector, and do not over-tighten the screws.
- Page 5 GND connection. The feedline shield can also be used for the ground path if the shield is attached to the GND on the CC-8A and to the station ground. Note: The total loop resistance of the control cable path must be under 30 ohms for reliable operation.
- Page 6 BCD and 1 of 8 Output Voltages The CC-8A supplies a 12 Vdc BCD or 1-of-8 control voltage to external devices. The DX Engineering RR8 remote 8-port RF switch requires a nominal 12 Vdc relay control voltage. If you are using another switch, ensure the proper control voltage is selected before you power-on the Control Console.
- Page 7 Maintenance The CC-8A requires virtually no maintenance as long as the unit is not exposed to direct sunlight, moisture, voltage or current overloads, or extreme temperatures. The CC-8A has high-friction rubber feet. These feet are soft, and should not be exposed to petroleum based cleaners or solvents.
- Page 8 Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
