Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the monitor
is able to plug-and-play. The DDC is a communication protocol through which the monitor
automatically informs the host system about its capabilities; for example, supported
resolutions and corresponding timing. The monitor supports the DDC2B standard.

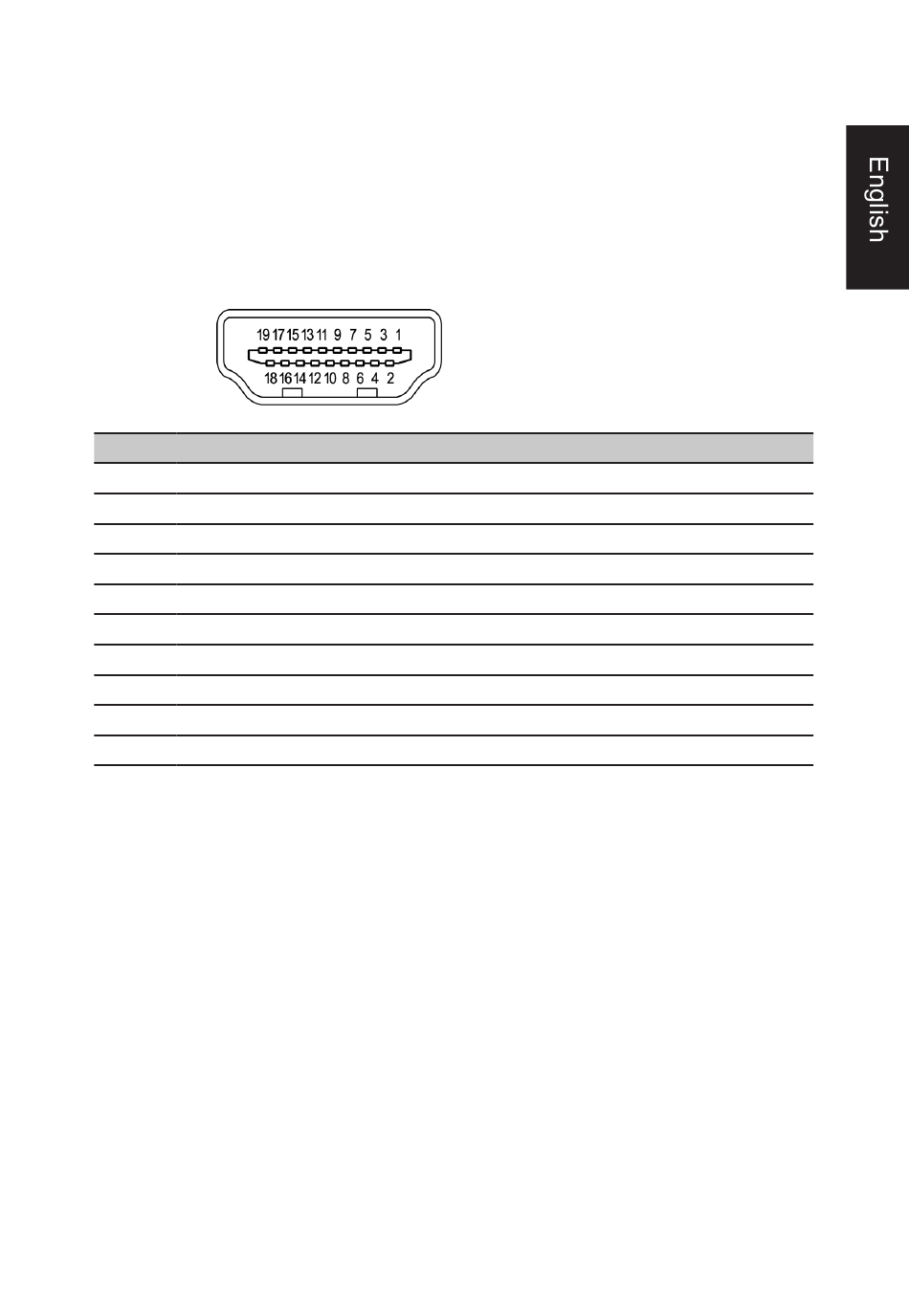

19-pin color display signal cable
PIN No. Description
1 TMDS Data2+
3 TMDS Data2-
5 TMDS Data1 Shield
7 TMDS Data0+
9 TMDS Data0-
11 TMDS Clock Shield
13 CEC
15 SCL
17 DDC/CEC Ground
19 Hot Plug Detect
PIN No. Description
2 TMDS Data2 Shield
4 TMDS Data1+
6 TMDS Data1-
8 TMDS Data0 Shield
10 TMDS Clock+
12 TMDS Clock-
14 Reserved (N.C. on device)
16 SDA
18 +5V Power
