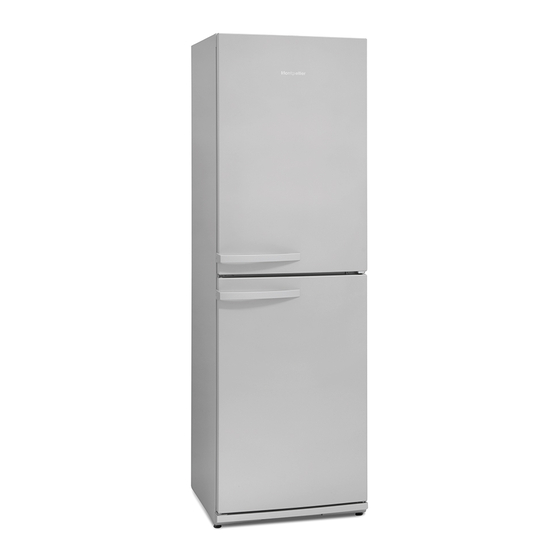

194.5cm Tall Combi Fridge Freezer
MS310-2 - White & Silver MS317-2W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MS310-2W
Summary of Contents for montpellier MS310-2W
- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 194.5cm Tall Combi Fridge Freezer MS310-2 - White & Silver MS317-2W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier fridge freezer. Our refrigeration products have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your fridge freezer to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
GUIDELINES CONCERNING THE SAFETY OF USE GENERAL INFORMATION DESCRIPTION OF THE APPLIANCE, BASIC PARTS INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE ELECTRONIC CONTROL PANEL DESCRIPTION. TEMPERATURE REGULATION USING THE REFRIGERATOR-FREEZER EFFICIENTLY DEFROSTING CLEANING AND CARE CHANGING THE DIRECTION OF THE DOOR OPENING TROUBLE-SHOOTING TRANSPORT ENVIRONMENTAL PROTECTION... -
Page 4: Guidelines Concerning The Safety Of Use
GUIDELINES CONCERNING THE SAFETY OF USE Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL. The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual. - Page 5 The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place.
-
Page 6: General Information
+3 °C is maintained in the cold section which is suitable for short-term storage of meat, fish and similar products. Model MS310-2W The appliance is a two–compartment refrigerator-freezer combination. The refrigerator compartment is designed for the brief storage of fresh food. The freezer compartment is designed for the freezing and long-term storage of food products. -
Page 7: Description Of The Appliance, Basic Parts
DESCRIPTION OF THE APPLIANCE, BASIC PARTS Model MS317-2W A – Refrigerator compartment B – Freezer compartment Control panel On / off switch for interior light Adjustable height shelves Shelf for bottles Cold section drawer (from -2°C to +3 °C) Glass shelf Fruit and vegetable boxes (2 pcs.) The transparent cold section... - Page 8 Model MS310-2W A – Refrigerator compartment B – Freezer compartment Thermostat knob Frozen products section(s) On / off switch for interior light Thaw water channel chamfer Adjustable height shelves Adjustable height door trays Shelf for bottles Egg tray Glass shelf Condenser Fruit and vegetable boxes (2 pds.)
-
Page 9: Installation And Operating Conditions Of
INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE Installation before using the appliance for the first time It is recommended to prepare the appliance for operation with a helper. Remove package. Lift the appliance away from foamed polystyrene base. Tear off •... - Page 10 Make sure that the plug of the electrical cord is not squeezed by the back wall of the • appliance or otherwise damaged. A damaged plug can be the cause of a fire! Positioning Place the appliance in a dry, well ventilated room. •...
-
Page 11: Electronic Control Panel Description
ELECTRONIC CONTROL PANEL DESCRIPTION. TEMPERATURE REGULATION. Model MS317-2W (fig. 1) When connecting the device to the mains for the first time, the blue temperature indicating segment lights up at +5 (factory temperature setting +5 °C, but you can select the preferred temperature according to your needs). - Page 12 The FAST FREEZE function automatically shuts off when a temperature below –18 °C is achieved. Model MS310-2W (fig. 2) The temperature in the refrigerator compartment is controlled using the thermostat knob 1 (fig. 1) by turning it to one side or the other. The temperature indication in digits is shown beside the thermostat knob.
-
Page 13: Using The Refrigerator-Freezer Efficiently
USING THE REFRIGERATOR-FREEZER EFFICIENTLY Storage zones in the refrigerator Due to the natural circulation of the air in the appliance, there are different • temperature zones in the refrigerator chamber. The coldest area is directly above the vegetables drawers. Use this area for all delicate •... - Page 14 After 24 hours, move the frozen food products from the FAST FREEZE section into the storage section drawer(s) (see Fig. 1). Model MS310-2W (fig. 2) When freezing large quantities of fresh food, the thermostat knob should be set to 7.
-
Page 15: Defrosting
Close the appliance door. Plug in and turn on the appliance. • Model MS310-2W (fig. 2) FREEZER COMPARTMENT of should be thawed not less than twice a year or when a layer of ice thicker than 5 mm forms in it. Do the actions below in the order they are listed: I M P O R T A N T ! Turn off the appliance –... -
Page 16: Cleaning And Care
CLEANING AND CARE REGULARLY CLEAN THE APPLIANCE! Note: before cleaning the cooling device and its rear compartment part, the device must be disconnected from the mains by unplugging. Protect the appliance inner surfaces and plastic parts from fats, acids and sauces. In •... - Page 17 3. Remove the middle bracket 4 together with the washers on the axle and the plastic spacer. Remove the freezer compartment door 3. 4. Remove the bottom cover 11 together with the small cover 10. 5. Remove the bottom bracket 2 together with the washers on the axle and the plastic spacer.
-
Page 18: Trouble-Shooting
OPERATION PROBLEMS AND THEIR SOLUTIONS (TROUBLESHOOTING). What if … The appliance is plugged in to the mains but it does not work. Check that your house • electricity supply installations are in order. Check that the plug is correctly inserted into the electricity supply socket. Model MS317-2W. -
Page 19: Transport
TRANSPORT THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OF THE APPLIANCE THAT RESULTS FROM NON-COMPLIANCE WITH THE INSTRUCTIONS FOR TRANSPORTATION. The appliance should be transported in the vertical position. • When being transported, the appliance should be protected from atmospheric •... -
Page 20: Product Fiche
PRODUCT FICHE Model MS310-2W MS317-2W Category ¹ 7 - Refrigerator-freezer Fridge net volume, L Cold section net volume, L Freezer net volume, L Actual consumption will depend on how the appliance is used and where it is located Energy efficiency class ²... - Page 21 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 22 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
