THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

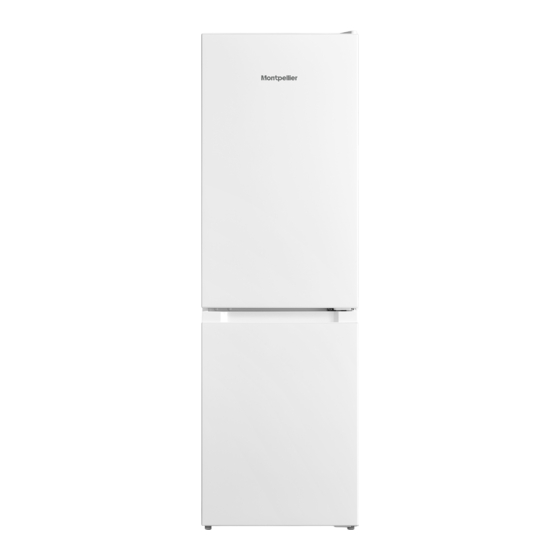

150cm Frost Free Fridge Freezer
MFF150W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MFF150W
Summary of Contents for montpellier MFF150W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 150cm Frost Free Fridge Freezer MFF150W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
Dear user THANK YOU and CONGRATULATIONS on your purchase of this high- quality Montpellier product. For future reference, please record your product model and serial number which can be found inside the fridge on the left hand side. Model Number________________________________________ Serial Number_________________________________________ SAFETY INSTRUCTIONS............... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Intended use Before switching on the appliance for the first time read the following safety hints! The appliance must be left to stand for a minimum of 4 hours before turning on for the first time or if the appliances is moved. This appliance is intended to be used in household and domestic applications only. - Page 5 WARNING Risk of fire/Flammable material This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care. • Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
- Page 6 Electrical safety WARNING Incorrect electrical installation or excessive mains voltage can lead to electric shocks! • Only connect your fridge-freezer to a properly installed earthed socket if the mains voltage of the socket corresponds to the specification on the rating label*. •...
- Page 7 Risk of injury and damage! CAUTION • Never put frozen food in your mouth immediately after taking it out of the freezer. • Avoid prolonged skin contact with frozen food, ice and the pipes in the freezer compartment. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Page 8 CAUTION To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
-
Page 9: Before The First Use
Before The First Use The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier. Remove transport cover The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent. -
Page 10: Notes For Cleaning
Notes For Cleaning CAUTION Disconnect the appliance from the power supply before cleaning. • Dust behind the product and on the floor must be cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 11: Disposal And Recycling
DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 12: Product Overview
PRODUCT OVERVIEW Names of components LED Lamp Upper freezer tray Temperature control knob Freezer drawer Shelf Big door tray Fruit and vegetables box Small door tray ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... -
Page 13: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table. • The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range. - Page 14 Space requirement diagram (when the door is open and when the door is closed) 150˚ 150˚ Width Depth Overall Width Depth doors open doors open Height 1500 Notice: All dimensions in mm...
-
Page 15: Doors Reversal
Doors reversal Parts included with the hinge kit: Left stopper (2) Spacer Parts already mounted on the refrigerator (as shipped): Right stopper Right stopper screw Hole cap (2) Top hinge cover Top hinge Middle hinge Middle hinge screw Top hinge screw Bottom hinge adjustable foot Steps:... - Page 16 4. Remove the freezer door, remove the bottom hinge , and adjustable foot on another side. 5. Exchange the fixed position of the adjustable foot and the bottom hinge , then fix them again. bottom hinge adjustable foot 6. Remove the screws and stoppers which are fixed on the bottom cover of the refrigerating door and the freezer door.
-
Page 17: Adjustable Foot
hole cap top hing Adjustable foot To avoid vibration, the appliance must placed horizontal. If required, adjust the adjustable foot to keep the appliance horizontal. The front should be slightly higher than the rear to avoid the door open. Adjustable foot can be turned easily by raising the appliance slightly. -
Page 18: Tips For Energy Saving
Tips for energy saving • Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. -
Page 19: Operation Instructions
OPERATION INSTRUCTIONS Control panel Display Button LED 1 : 6°C Temperature setting button of refrigerator compartment LED 2 : 4°C LED 3 : 3°C LED 4 : 2°C Display • Once initially powered on,the display screen is on full display for 3s, and then the refrigerator runs according to setting 2(4°C). - Page 20 Temperature setting • Each time the temperature setting button A is pressed once,the temperature setting changes one time. After the temperature setting has been completed, the refrigerator will run according to the set value after 30s. The shift regulation is: Super freeze mode •...
-
Page 21: Tips On Storing Food
Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long- term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing. - Page 22 Target Compartments Order storage Appropriate food TYPE temp. [°C] Eggs, cooked food, packaged food, fruits and Fridge +2 ≤ +8 vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (***)*-Freezer (recommended for 3 months, the longer the storage ≤-18...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. • Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. - Page 24 Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. Long-time nonuse: The appliance shall be unplugged and then cleaned;...
-
Page 25: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 26 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 27: Customer Services
CUSTOMER SERVICES Special for new European standard The ordered parts in the following table can be acquired from Service provider channel Minimum time required for Provision Ordered part Provided by Thermostats Professional maintenance At least 7 years after the last model is personnel launched on the market Temperature... - Page 28 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 29 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
