montpellier MFF186ALX Installation And Operating Instructions Manual

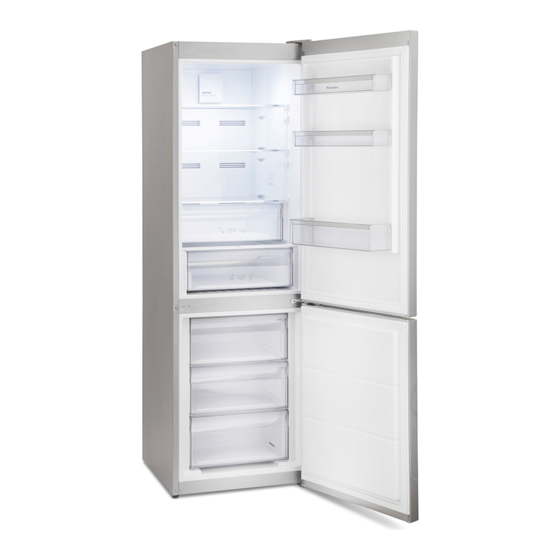

60cm combi fridge freezer, inox
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
60cm Combi Fridge Freezer
MFF186ALX - Inox
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFF186ALX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for montpellier MFF186ALX

Summary of Contents for montpellier MFF186ALX

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 60cm Combi Fridge Freezer MFF186ALX - Inox Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.

  • Page 3: Table Of Contents

    Index BEFORE USING THE APPLIANCE ......... 6 General warnings..............6 Old and out-of-order fridges............8 Safety warnings ................ 9 Installing and operating your fridge.......... 10 Electrical connection (For UK type plug) ........11 Before Using your Fridge ............12 Information about New Generation Cooling Technology ..12 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ............
  • Page 4 TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ................ 28 Repositioning the door ............. 28 BEFORE CALLING YOUR AFTER SALES SERVICE ... 29 TIPS FOR SAVING ENERGY .......... 32...

  • Page 5: Before Using The Appliance

    BEFORE USING THE APPLIANCE General warnings WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • Page 6 BEFORE USING THE APPLIANCE working environments. - farm houses and by clients in hotels, motels and other residential type environments. - bed and breakfast type environments; - catering and similar non-retail applications. • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

  • Page 7: Old And Out-Of-Order Fridges

    BEFORE USING THE APPLIANCE Old and out-of-order fridges • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC.

  • Page 8: Safety Warnings

    BEFORE USING THE APPLIANCE Safety warnings • Do not connect your Fridge Freezer to the mains electricity supply using an extension lead. • Do not plug in damaged, torn or old plugs. • Do not pull, bend or damage the cord. •...

  • Page 9: Installing And Operating Your Fridge

    BEFORE USING THE APPLIANCE Installing and operating your fridge Before using your fridge, you should pay attention to the following points: • The operating voltage for your fridge is 220-240 V at 50Hz. • We do not accept responsibility for any damages that occur due to ungrounded usage.

  • Page 10: Electrical Connection (For Uk Type Plug)

    BEFORE USING THE APPLIANCE Electrical connection (For UK type plug) For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.

  • Page 11: Before Using Your Fridge

    BEFORE USING THE APPLIANCE Before Using your Fridge • When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. •...
  • Page 12 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

  • Page 13: The Parts Of The Appliance And The Compartments

    THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 1) Wine rack * 2) Fridge shelves 3) Ionisier * 4) Chiller * 5) Crisper cover 6) Crisper 7) Freezer top baskets 8) Freezer bottom basket 9) Leveling feet 10) Ice tray 11) Freezer glass shelves 12) Bottle shelf 13) Door shelf (Adjustable door shelf *)

  • Page 14: The Various Function And Possibilities

    THE VARIOUS FUNCTION AND POSSIBILITIES Display and control panel Sr Alarm Indicator Cooler Set Button Cooler Set Button The temperature of the cooler compartment can be changed using this button. Super Cool and Economy mode can also be activated using this button.

  • Page 15: Operating Your Fridge

    THE VARIOUS FUNCTION AND POSSIBILITIES Operating your fridge Super cool mode How would it be used? • Push the Cooler Set Button until the Super Cool Symbol illuminates. The buzzer will sound twice and the mode will be set. During this mode: •...

  • Page 16: Accessories

    THE VARIOUS FUNCTION AND POSSIBILITIES • Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge. • Do not move to another adjustment before completing the current adjustment. • Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled.

  • Page 17: Chiller Shelf

    THE VARIOUS FUNCTION AND POSSIBILITIES Chiller Shelf (In some models) Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw...

  • Page 18: Adjustable Door Shelf

    THE VARIOUS FUNCTION AND POSSIBILITIES Adjustable Door Shelf (In some models) Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1).

  • Page 19: Cleaning And Maintenance

    CLEANING AND MAINTENANCE • Disconnect the unit from the power supply before cleaning. • Do not clean the appliance by pouring water. • Make sure that no water enters the lamp housing and other electrical components. • The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

  • Page 20: Defrosting

    CLEANING AND MAINTENANCE Defrosting Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there. • Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.

  • Page 21: Arranging Food In The Appliance

    ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough. • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

  • Page 22: Freezer Compartment

    ARRANGING FOOD IN THE APPLIANCE Freezer compartment • Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice. • To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section.
  • Page 23 ARRANGING FOOD IN THE APPLIANCE Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily. Important note: •...
  • Page 24 ARRANGING FOOD IN THE APPLIANCE Maximum Storing time Meat and fish Preparation (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes...
  • Page 25 ARRANGING FOOD IN THE APPLIANCE Maximum Vegetables and Storing Preparation Fruits time (months) String beans and Wash and cut to small pieces and 10 - 13 beans boil in water Beans Hull and wash and boil in water Cabbage Cleaned and boil in water 6 - 8 Clean and cut to slices and boil in Carrot...
  • Page 26 ARRANGING FOOD IN THE APPLIANCE Maximum Dairy Preparation Storing time Storing Conditions Products (months) Packet In its own Pure Milk – In its (Homogenize) 2 - 3 packet own packet Milk Original package may be used for Cheese- short storing period. excluding In slices 6 - 8...

  • Page 27: Transportation And Changing Of Installation Position

    TRANSPORTATION AND CHANGING OF INSTALLATION POSITION Transportation and Changing of Installation Position • The original packages and foamed polystyrene (PS) can be retained if required. • During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

  • Page 28: Before Calling Your After Sales Service

    BEFORE CALLING YOUR AFTER SALES SERVICE Check Warnings; Your fridge warns you if the temperatures for cooler and the freezer are at improper levels or if a problem occurs with the appliance. ERROR TYPE ERROR TYPE WHAT TO DO There is/are some Call an authorised service "Failure part(s) out of order...
  • Page 29 BEFORE CALLING YOUR AFTER SALES SERVICE If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically.
  • Page 30 BEFORE CALLING YOUR AFTER SALES SERVICE If the doors are not opened and closed properly; • Do the food packages prevent closing of the door? • Are the door compartments, shelves and drawers placed properly? • Are door gaskets broken or torn? •...

  • Page 31: Tips For Saving Energy

    TIPS FOR SAVING ENERGY 1. Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2. Allow warm food and drinks to cool down outside the appliance. 3.
  • Page 33 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
