DESCRIPTION
Demonstration circuit 2824A-A is a single output buck
converter with 4.5V to 20V input voltage range featuring
the
LTC
7131-1, a 25A monolithic synchronous step-
®
down converter with a PMBus interface. The output volt-
age is adjustable from 0.4V to 4V and the converter can
supply up to 25A of load current.
The DC2824A-A powers up to default settings and pro-
duces power based on configuration resistors without the
need for any serial bus communication, which allows easy
evaluation of the DC/DC converter.
To fully explore the extensive power system manage-
ment features of the part, download the GUI software
LTpowerPlay
onto your PC and use ADI's USB-to-PMBus
®
dongle
DC1613A
to connect to the board.

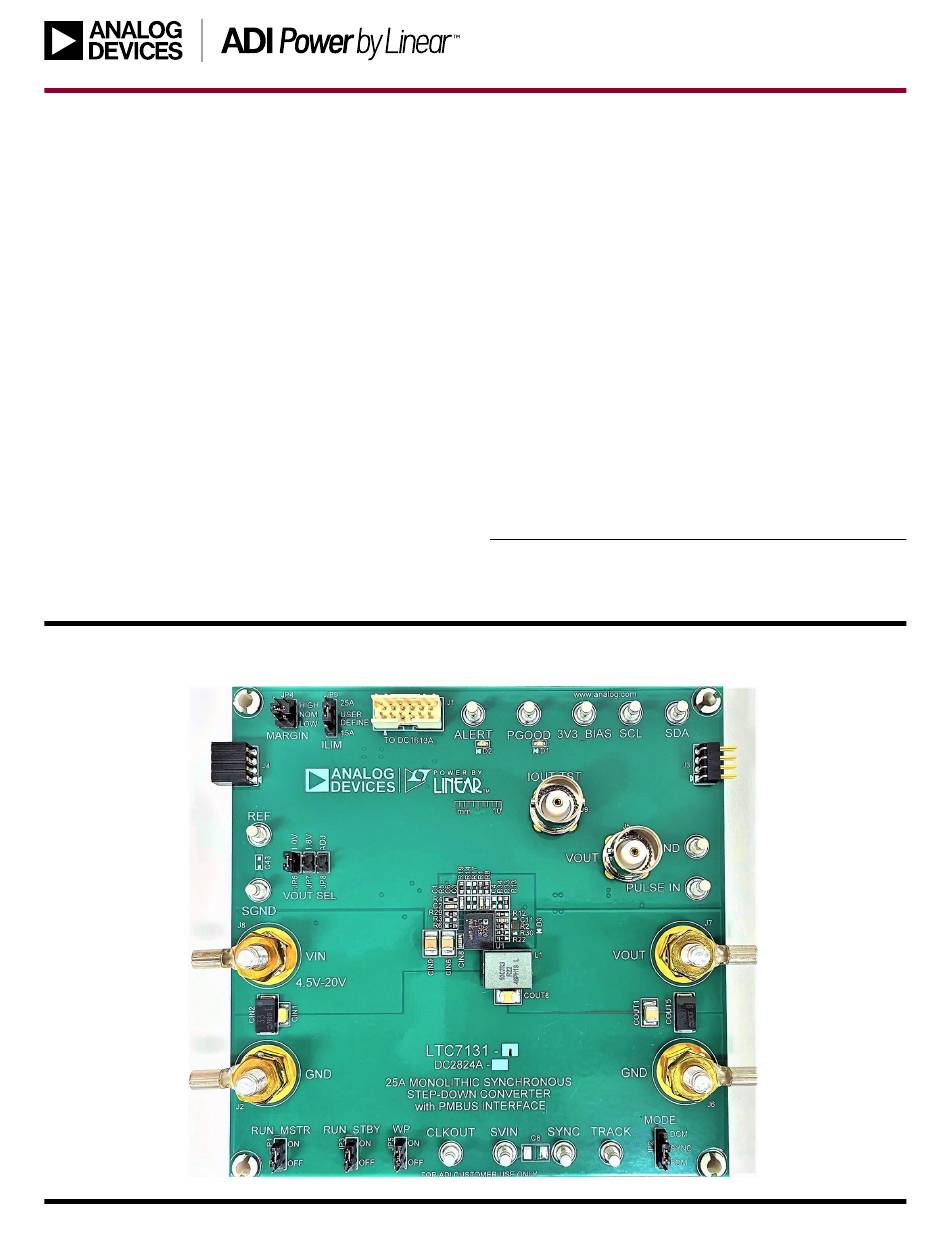

BOARD PHOTO
25A Monolithic Synchronous DC/DC Step-
Down Converter with PMBus Interface
DEMO MANUAL
LTpowerPlay allows users to monitor fault status and
real-time telemetry of input and output voltages, input
and output current, and internal IC die temperature.
Programmable parameters include device address, out-
put voltage, on/off control, and fault response to output
overvoltage and output overcurrent.
The LTC7131-1 data sheet gives a complete description
of this part, its operation and application information and
must be read in conjunction with this quick start guide
for DC2824A-A.
Design files for this circuit board are
All registered trademarks and trademarks are the property of their respective owners.
DC2824A-A
LTC7131-1
available.
Rev. 0
1
Advertisement
Table of Contents
Related Manuals for Linear ADI Power LTC7131-1
Summary of Contents for Linear ADI Power LTC7131-1
- Page 1 DEMO MANUAL DC2824A-A LTC7131-1 25A Monolithic Synchronous DC/DC Step- Down Converter with PMBus Interface DESCRIPTION Demonstration circuit 2824A-A is a single output buck LTpowerPlay allows users to monitor fault status and converter with 4.5V to 20V input voltage range featuring real-time telemetry of input and output voltages, input 7131-1, a 25A monolithic synchronous step- and output current, and internal IC die temperature.
-
