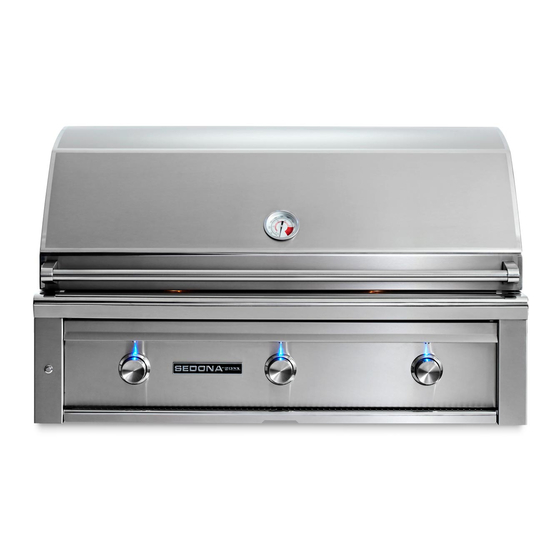

Summary of Contents for Lynx SEDONA L500PS

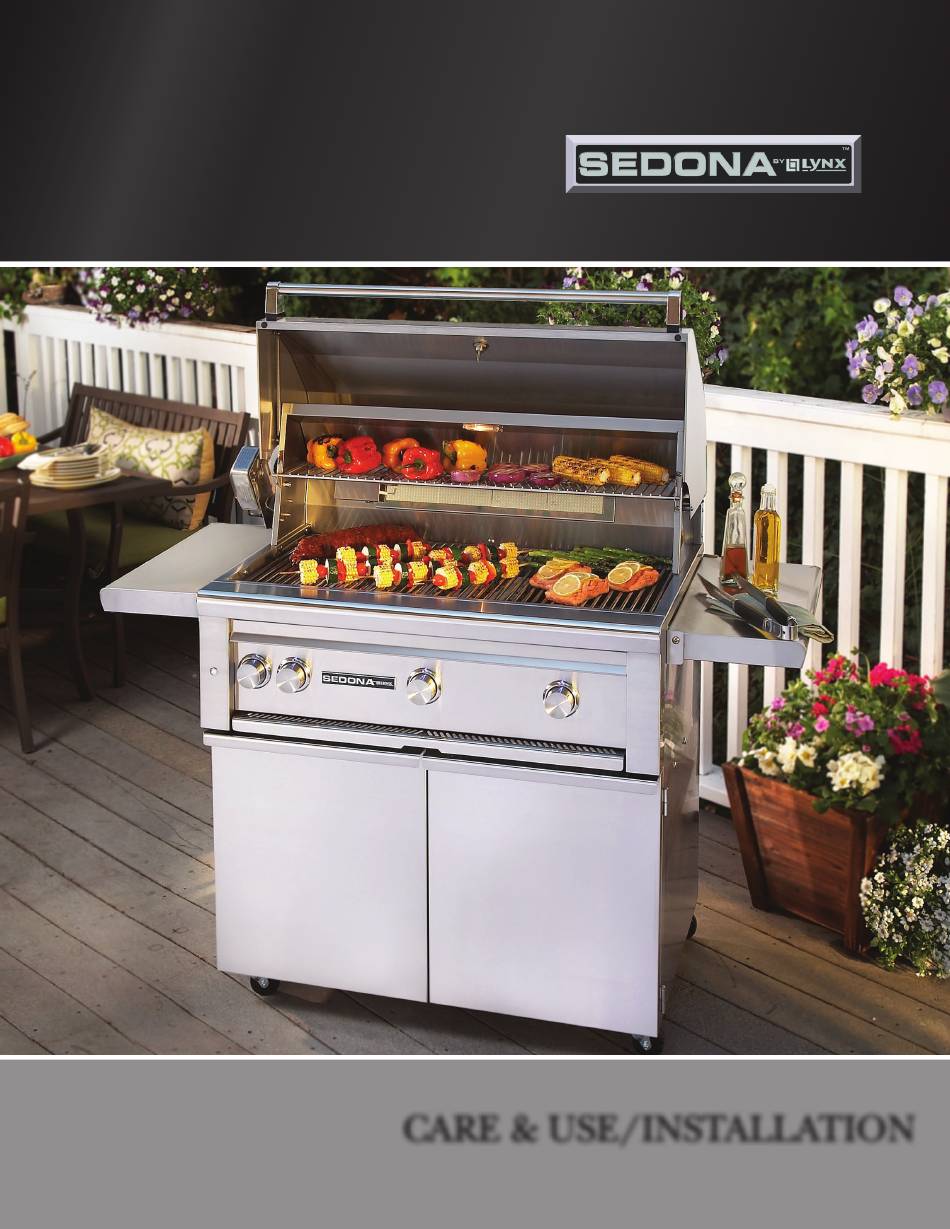

  • Page 1 MAKE THE MOST OF YOUR CARE & USE/INSTALLATION...
  • Page 2 13. THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA 1.6 latest edition and has been tested and approved by Intertek. To obtain replacement parts or service contact: Lynx Professional Grills 7300 Flores Street Downey, CA 90242 888-289-5969...
  • Page 3 WARNINGS WARNING Read this manual carefully and completely before using your grill to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. This product is designed for outdoor use only.
  • Page 4 WARNING WARNING 1. Always maintain the required clearances from combustible construction as detailed. The grill is designed for outdoor use only. NEVER use in a garage, building, shed, breezeway or other enclosed area. This grill shall not be used under any unprotected overhead combustible construction. 2.

  • Page 5: Table Of Contents

    Lighting Your Grill Basic Grilling Using the ProSear™ Burner Using the Optional Rotisserie Burner Cleaning Your Sedona Grill Troubleshooting Your Sedona Grill Contacting Lynx Customer Care Warranty INSTALLATION GUIDELINES Before You Start If shipment arrives damaged Built-In Installations Clearance to Combustibles...

  • Page 6: Sedona Grill Models

    SEDONA GRILL MODELS This manual covers the following models, with or without Rotisserie burners. MODEL DESCRIPTION L500PS 1 Stainless Steel Tube Burner and 1 ProSear™ Burner L600PS/L700PS 2 Stainless Steel Tube Burners and 1 ProSear™ Burner L500PSR 1 Stainless Steel Tube Burners and 1 ProSear™ Burner and Rotisserie L600PSR/L700PSR 2 Stainless Steel Tube Burners and 1 ProSear™...

  • Page 7: If Shipment Arrives Damaged

    We cannot assume extent of damage. responsibility for damage or loss incurred in transit. (See INDEX: “Contacting Lynx Customer Care” for further details.) IMPORTANT NOTES Where’s the Wind? How long is your run?

  • Page 8: Built-In Installations

    BEFORE YOU START... continued BUILT-IN INSTALLATIONS A minimum of 6” of clearance is needed on the left side of the grill above the counter top for the motor and skewer. Built-in grills are designed for easy installation into masonry If the grill is to be placed in a combustible enclosure an enclosures.

  • Page 9: Cut Out Dimensions

    19.00 20.00 If building an island that does not conform to the standard LSA636 33.75 19.00 20.00 properties listed in the following pages, please contact Lynx LUD517 17.25 12.75 20.00 Grills at 888-259-5969 to verify all safety requirements L500REF 21.50 34.00...

  • Page 10: Unpacking And Assembly

    Never connect a gas line directly to the grill. A rating plate. pressure regulator must be installed on all gas equipment. All local codes require it and Lynx supplies The rating plate The Rating plate lists serial numbers, model numbers the correct regulator with your grill.

  • Page 11: Natural Gas

    GAS CONNECTIONS... continued Ensure that the gas supplied meets with the minimum all the gas-fired equipment that will be connected to that line. pressure requirements. Do not operate the grill on any gas In no case should pipe less than ¾” inside diameter or 1” other than that for which the grill has been set.

  • Page 12: Lp Gas

    LP gas cylinders of Permanently plumbed LP connections, such as those in the U.S. Department of Transportation (DOT) and designed line with a bulk cylinder, require a 4/11 regulator. (Lynx for use with a Type 1 system only. P/N 30781)

  • Page 13: Gas Line Purging

    Do GAS CONVERSION KITS not over-tighten this connection. Gas conversion kits are available from Lynx Grills the grill to To disconnect the coupler, first make sure the main operate on either Natural gas (SEDNGK) or LPG (SEDLPK).

  • Page 14: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING - ELECTRICAL GROUNDING Product installation must meet local electric codes or, in the To protect against electric shock, do not immerse any part of absence of local codes, the latest edition of the National Elec- the power cord, an extension cord or any plugs in water or trical Code ANSI/NFPA No.

  • Page 15: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR GRILL. 1. NEVER LEAVE THE GRILL UNATTENDED WHILE 11. Cooking excessively fatty meats and oils will cause flare COOKING. ups. Internal fires or damage caused by them or by the grill being left unattended while cooking are not covered under the terms and conditions of our 2.

  • Page 16: Final Checks

    FINAL CHECKS LEAK TESTING Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the “LOW” setting. It could be either too high or too low. DANGER To adjust the burner low setting: •...
  • Page 17 Finally, for safety and for proper use & care, you must leave this manual with the owner. Make sure you advise them to keep it for future reference. For technical assistance call: Lynx Customer Care 888-289-5969 SEDONA CARE & USE/INSTALLATION...

  • Page 18: Using Your Sedona Grill

    USING YOUR GRILL Grilling requires high heat for searing and low, controlled outside. Some foods are cooked using direct heat and heat for slow cooking. Thinner cuts of food are often some using indirect heat. (See INDEX: “Types of Cooking”) cooked at a “HI”...

  • Page 19: Lighting Your Grill

    PRE-GRILL CHECKLIST... continued BEFORE EACH USE • … you know where the main gas supply shut-off is located. Before any use, always make sure that: • ... you do not smell gas before you light the grill. If you • … the burners are seated properly in the grill with do smell gas, shut everything off and have a qualified mounting legs in the slots.
  • Page 20 LIGHTING YOUR GRILL ... continued COLD WEATHER WARNING: PROPANE WARNING inside Extremely cold temperatures may cause your ProSear™ burner to light the burner instead of outside . Once lit, if you hear a ‘whooshing’ sound, immediately turn the burner knob off to extinguish the flame and then immediately re-light the burner.

  • Page 21: Basic Grilling

    BASIC GRILLING PRE-HEATING Pre-heating your grill every time you use it is extremely Then close the hood and allow the grill to heat for 10 to important. Pre-heating allows the briquettes to properly 15 minutes. Once you’ve reached your desired pre-heat heat up, providing more even and more consistent cooking temperature, turn off the burner that you won’t be using to results.

  • Page 22: Using The Prosear™ Burner

    USING THE PROSEAR™ BURNER HOW TO SEAR Professional restaurant chefs rely on a different type of heat ... infrared heat ... to create a higher searing temperature Searing locks in flavor and juices while allowing the food’s than what standard burners can achieve. So the ProSear™ outer surface to absorb smoke and food-born aromas infrared burner is provided for this purpose.

  • Page 23: Using The Optional Rotisserie Burner

    USING THE OPTIONAL ROTISSERIE BURNER Rotisserie cooking provides an even delivery of heat to The location of the rotisserie burner makes it more your foods. It has no equal. The constant rotation not only susceptible to strong wind conditions (more so than the cooks foods evenly, it also self bastes.

  • Page 24: Cleaning Your Sedona Grill

    USING THE OPTIONAL ROTISSERIE BURNER... continued The Rotisserie Burner To light the rotisserie infrared burner, first mount the skewered food item on the grill then follow the rotisserie lighting procedure. Once lit,the rotisserie burner should reach cooking temperatures in about 1 minute. It will glow evenly across its surface in about 5 minutes.
  • Page 25 Any remaining food items can be brushed off using a soft brush. DRIP TRAY Replacement briquette trays can be ordered from Lynx The drip tray should be cleaned periodically. After the Customer Care. grill is completely cool, remove the drip tray by pulling...
  • Page 26 CLEANING YOUR GRILL ...continued 3. Lift the burner up at the rear until the legs exit the frame. 4. Then pull to the rear of the grill so the burner head comes off the orifice at the front. 5. Angle the burner sideways and lift it out. Be careful not to change the air shutter position.

  • Page 27: Troubleshooting Your Sedona Grill

    TROUBLESHOOTING YOUR GRILL BEFORE YOU CONTACT LYNX CUSTOMER CARE Hold the bulb using a paper towel or other cloth and gently press it straight into the socket. The glass cover Please check a few things before calling for service: should be gently snapped back into place.
  • Page 28 If the burner will light with a match, then the igniter may (See INDEX: “Regulator Conversion” for further details.) not be functioning correctly. Contact Lynx Customer Care. The hose and regulator provided by the manufacturer must If the burner will not match light, and you know you are be used if your grill is set-up for an LP Gas Cylinder.

  • Page 29: Contacting Lynx Customer Care

    Correctly-installed burners should be seated firmly and level with no side-to-side movement. CONTACTING LYNX CUSTOMER CARE Before calling Lynx Customer Care, please make sure you have the following information: • Model number • Date of purchase • Proof of purchase by the original owner Your satisfaction is of the utmost importance to us.

  • Page 30: Warranty

    7) No one has the authority to add to or vary Lynx’s warranty, with the owner paying a processing fee and all other costs or to create for Lynx any other obligation or liability in including labor.
  • Page 31 THIS PROVISION EXCLUDES ALL COMMERCIAL 7) No one has the authority to add to or vary Lynx’s warranty, APPLICATIONS, INCLUDING, BUT NOT LIMITED TO or to create for Lynx any other obligation or liability in RESTAURANTS AND INSTITUTIONAL FOOD SERVICE connection with the sale or use of its products.

  • Page 32: Wiring Schematics

    WIRING SCHEMATICS L500 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...

  • Page 33: L500 Rotisserie Grill

    WIRING SCHEMATICS L500 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...

  • Page 34: L600/L700 Non-Rotisserie Grill

    WIRING SCHEMATICS L600/L700 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...

  • Page 35: L600/L700 Rotisserie Grill

    WIRING SCHEMATICS L600/L700 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...

  • Page 36: Sedona Grill Exploded Parts View

    SEDONA GRILL EXPLODED PARTS VIEW SEDONA CARE & USE/INSTALLATION...

  • Page 37: Sedona Grill Parts List

    SEDONA GRILL PARTS LIST SEDONA CARE & USE/INSTALLATION...

  • Page 38: Model Specific Btu Outputs

    BTU OUTPUTS & MAXIMUM RUNS MODEL-SPECIFIC BTU OUTPUTS MODEL TUBE BURNER ROTISSERIE PROSEAR™ TOTAL INPUT L500PS 1 @ 23,000 Btu/Hr 1 @ 23,000 Btu/Hr 46,000 Btu/Hr L500PSR 1 @ 23,000 Btu/Hr 1 @ 12,500 Btu/Hr 1 @ 23,000 Btu/Hr 58,500 Btu/Hr L600PS 2 @ 23,000 Btu/Hr 1 @ 23,000 Btu/Hr...

  • Page 39: Index

    Grilling in Windy Conditions ..6 Checklist Before Each Use .. 18, 19 Schematics, L600 Grill ..34, 35 Cleaning the Burner ....25 Service, contacting Lynx ..29 Cleaning Your Grill ....24 Clearance to Combustibles ..8 Coastal Use ......... 25 Important Safety Precautions ...
  • Page 40 The best outdoor kitchen products come from: Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 Service: (888)-289-5969 Fax: (562) 299-6789 www.lynxgrills.com PN #34170, Rev. E 09/17 SEDONA CARE & USE/INSTALLATION...
