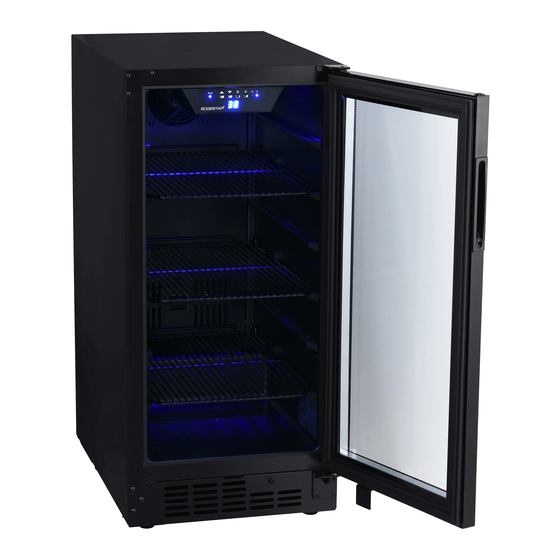

- Page 1 Built-in Beverage Cooler BBR901BL Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.0-08062018...
- Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar beverage cooler and / or injury to the user. This beverage cooler is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit.
- Page 3 General Safety To prevent back and other types of injuries, use at least two people to move and install the wine cooler. This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Door Ajar Alarm ................................ 14 ................................14 EFROSTING ..................... 15 REPARING THE BEVERAGE COOLER FOR TORAGE CLEANING AND MAINTENANCE .......................... 15 ..............................15 XTERIOR LEANING ..............................15 NTERIOR LEANING TROUBLESHOOTING ............................. 16 SPECIFICATIONS ..............................18 EDGESTAR LIMITED WARRANTY ........................19... -
Page 5: First Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar beverage cooler. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Front View Back View Internal Fan This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Tip: Gather the model and serial number from the product label and write them down before installing the Beverage Cooler. -
Page 7: Installing The Beverage Cooler
Installing the Beverage Cooler The beverage cooler should be installed in accordance with local electrical code requirements. The beverage cooler should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 8: Installation Clearance Requirements
Installation Clearance Requirements Important Notes Choose a location that has ambient temperatures above 50° F and below 95° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. - Page 9 The beverage cooler should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the beverage cooler to be level in order to work properly. If needed, you can adjust the height of the beverage cooler by rotating the feet.
-
Page 10: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your beverage cooler into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National... -
Page 11: Installing And Removing The Shelves
Note: some wine coolers do not have decorative plugs installed. Caution: Do not over-tighten the screws as this may cause damage to the handle or to the stainless steel door. Installing and Removing the Shelves To prevent damaging a door gasket, make sure to open the door all the way before pulling the shelves out of their track. -
Page 12: Reversing The Door Swing
Reversing the Door Swing Follow the instructions below to reverse the door swing. Important: Before you begin, unplug the refrigerator. To Reverse the Door from Right Swing to Left Swing Open the door and using a Phillips screwdriver, remove the bottom screws from the lower hinge. - Page 13 Install the lower hinge and bushing on the bottom left support bracket. Carefully insert the door into the upper right corner hinge, then slide the door on top of the lower hinge and secure the door by installing the lower screws.
-
Page 14: Operation
Operation Installation Check List Before Operation Have all packing materials and tape been removed from the interior and exterior of the beverage cooler? Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the beverage cooler? Has the machine been leveled? Is the beverage cooler in a site where the ambient temperature is between 50°... -
Page 15: Normal Sounds
32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar for support. Door Ajar Alarm This beverage cooler includes a door ajar alarm, which will sound if one of the doors is open for more than five (5) minutes. -
Page 16: Preparing The Beverage Cooler For Storage
Preparing the beverage cooler for Storage If the beverage cooler will not be used for a long time, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior. Disconnect the wine cooler from the power supply by removing the power plug from the wall socket. -
Page 17: Troubleshooting
Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 18 Symptoms Possible Causes Solutions The body of the beverage The unit is not grounded Contact your local electrician cooler is electrified. properly. to test your electrical grounding system. Frost is forming in the wine The environment is humid. Though the unit uses an “auto-defrost”...
-
Page 19: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the beverage cooler for the most accurate information. Description of product Built-in Beverage Cooler Model BBR901BL Voltage / Frequency AC 115V~60Hz Amperage 1.5 A Input Power... -
Page 20: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
