This kit can be used for cars which were equipped
with the following factory radios:
• Chorus Gen.II+
• Concert Gen.II+
• Symphony II
• Symphony II+
• RNS-E
• RNS-low (BNS 5.0)
If the car was equipped with a 1 DIN radio like Radio Chorus II, Concert II or
Symphony II, you need to change the center console to 2 DIN.
Your Audi partner can support you.
6.
Connect all required circuit points
Place the Alpine 8 inch unit in
dash board and fix it with 2 OEM
Torx screws
7.
Connect switches and place facia
plate to finish installation
• Audi A3 (8P) 07/2008 – 01/2010
(with single switch panel)
Compatible with these Alpine navigation devices
Alpine 8 inch
5
3
4
1

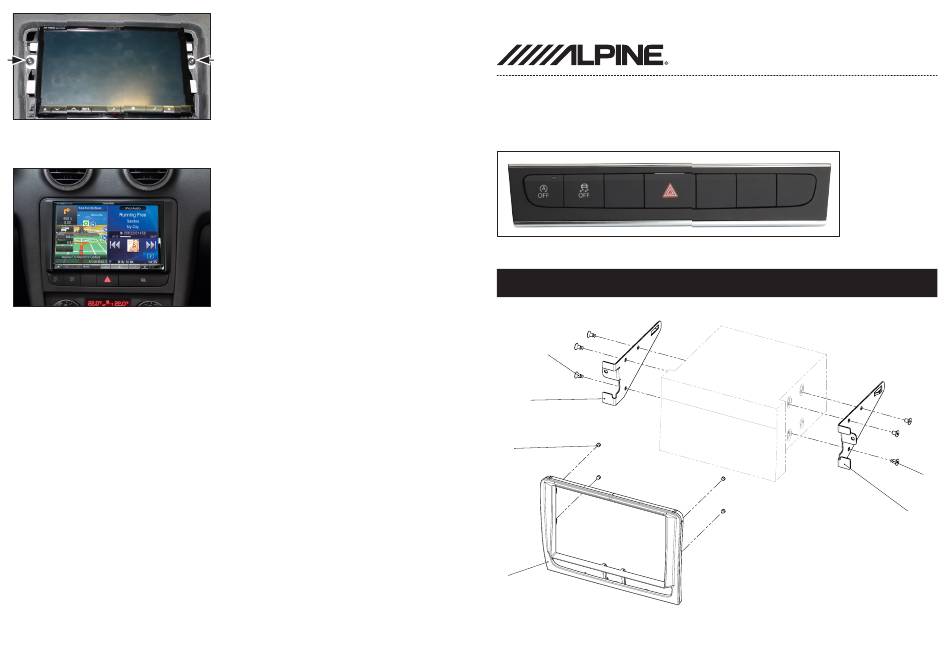

Installation Manual
Alpine 8 inch Kit
colour / part-no.:
black: KIT-8A3F/FD
5
2

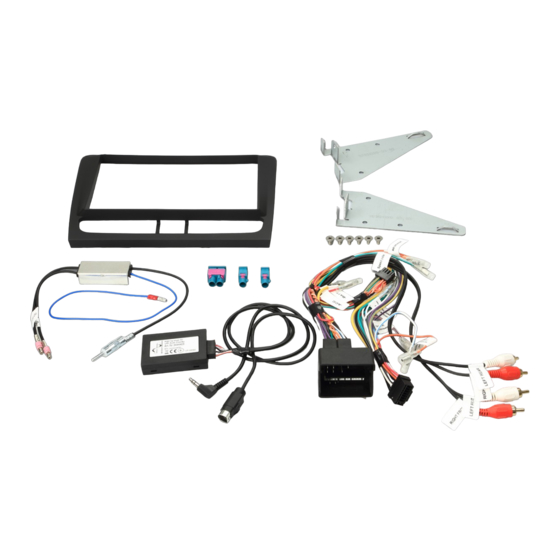

Double DIN Kit contents
(1) Facia Plate
(2) Mounting Bracket Right
(3) Mounting Bracket Left
(4) Magnet
(5) Hexagon Socket Countersunk Flat Head Screw
