ENGLISH
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.

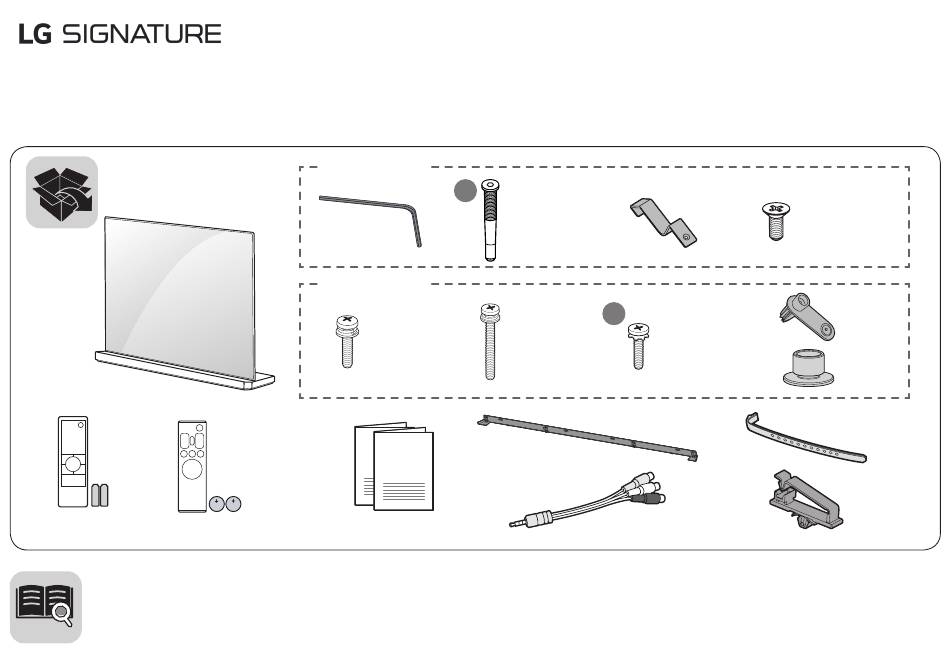

AA
CR2032
www.lg.com
Easy Setup Guide
Guía Rápida de Configuración
Guide de configuration rapide
OLED65G7P
a
OLED77G7P
X 2
(M8 x L25)
X 4
(M10 x L70)
b
X 2
X 18
(M8 x L77)
(M4 x L12)
P/No: MFL69648410 (1701-REV00)
OLED TV
OLED65G7P
OLED77G7P
X 2
X 2
(M4 x L10)
X 2
X 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLED65G7P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LG OLED65G7P

  • Page 1 OLED TV ENGLISH Easy Setup Guide Please read this manual carefully before operating your set and retain it for future reference. OLED65G7P ESPAÑOL Guía Rápida de Configuración OLED77G7P Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
  • Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
  • Page 3 OLED65G7P 5 mm...
  • Page 4 OLED77G7P...
  • Page 5 ENGLISH Easy TV Connect Guide (Animation) ESPAÑOL Guía Rápida de Conexión de TV (Sólo en Inglés) FRANÇAIS Guide simplifié pour la connexion du téléviseur (Offert en anglais seulement)
  • Page 8 : mm (inches / pulgadas / po) : kg (lbs / libras / lb) 1,461 1 461 31.7 31,7 OLED65G7P-U 5.0 A / 500 W 5,0 A / 500 W (57.5) (57,5) (34.7) (34,7) (9.5) (9,5) (35.1) (35,1) (2.6) (2,6) (69.8)
  • Page 9 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. OLED65G7P OLED77G7P *MFL69707622* www.lg.com P/NO : MFL69707622 (1701-REV00)
  • Page 10 Warning! Important Safety • Only use attachments/accessories specified by the manufacturer. instructions • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution Read these instructions. Keep these instructions. when moving the cart/apparatus combination to Heed all warnings.
  • Page 11 LG • Use only an authorized AC adapter and power Electronics. Unauthorized modification could cord approved by LG Electronics. Otherwise, this void the user’s authority to operate this product. may result in fire, electric shock, malfunction, or •...
  • Page 12 • Handle the adapter carefully to avoid dropping • New features may be added to this TV in the or striking it. An impact could damage the future. adapter. • The items supplied with your product may vary • Keep the product away from direct sunlight. depending upon the model.
  • Page 13: Lifting And Moving The Tv

    Lifting and Moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not place the product on the floor with its front facing down without padding. When moving or lifting the TV, read the following Failure to do so may result in damage to the to prevent the TV from being scratched or screen.
  • Page 14: Adjusting The Menu

    Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. 2 Connect the power cord to a wall outlet.
  • Page 15: Connections (Notifications)

    • If you record a TV program on a DVD recorder or wall mount. VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. (For OLED65G7P) For more information about recording, refer to the manual provided with the connected device. Provided Item •...
  • Page 16: Connecting To An Antenna Or Cable

    Other Connections • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh Connect your TV to external devices. For the best rate to another rate or adjust the brightness and picture and audio quality, connect the external contrast on the Picture menu until the picture is...
  • Page 17: Magic Remote Functions

    Battery Installation • DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. • The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100 °C (212 °F). Replace the battery part no.
  • Page 18 Adjusts the volume level. (Mute) Mutes all sounds. (Voice recognition) Press the button and speak when the voice display window appears on the TV screen. • Network connection is required to use the voice recognition function. * (Search) Shows the search mode. Scrolls through the saved channels.
  • Page 19: Registering Magic Remote

    How to Register the Magic Remote LG Electronics will also provide open source code To use the Magic Remote, first pair it with your TV. to you on CD-ROM for a charge covering the cost...
  • Page 20: Specifications

    • Abnormal Display Television System - If the TV feels cold to the touch, there may be a ATSC, NTSC-M, 64 & 256 QAM small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some minute Program Coverage dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.
  • Page 21 Regulatory FCC RF Radiation Exposure Statement [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with FCC radiation FCC NOTICE exposure limits set forth for an uncontrolled environment. This transmitter must not be (For USA) colocated or operating in conjunction with any other antenna or transmitter.
  • Page 22 WARNING! (For Canada) [For product having the wireless function using 5 Never place a television set in an unstable GHz frequency bands] location. A television set may fall, causing serious • The device for operation in the band 5150–5250 personal injury or death. Many injuries, particularly MHz is only for indoor use to reduce the to children, can be avoided by taking simple potential for harmful interference to co-channel...
  • Page 23: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 24 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Model OLED65G7P-U, 1-800-984-6306 OLED77G7P-U 1-888-542-2623 CANADA Responsible Party LG Electronics Inc. Register your product Online! Address 1000 Sylvan Ave. Englewood www.lg.com Cliffs NJ 07632 U.S.A...
  • Page 25: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 26: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 27 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 28 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 29: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 30: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 31 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 32 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 33 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 34 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 35 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 36 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
  • Page 38: Network Settings

    Wheel (OK). Accessibility 5 If the connection is completed, Connected to Internet is displayed. NETWORK Picture TV Name Sound [LG] webOS TV WEBOS3.5 Wired Connection (Ethernet) Channels 3 Select the Network Wired Connection Not Connected (Ethernet) or Wi-Fi Connection. Wi-Fi Connection...
  • Page 39: Troubleshooting Network Problems

    Fi Settings. NETWORK Picture TV Name When X appears next to Gateway: Sound [LG] webOS TV WEBOS3.5 1 Unplug the power cord of the AP (Router) or cable Wired Connection (Ethernet) Channels modem, wait 5 seconds. Reapply power. Not Connected 2 Initialize (Reset) the AP (Router) or cable modem.
  • Page 40: Updating The Tv Firmware

    SmartShare PC SW Installation & Setting Install the SmartShare PC SW program on your PC. 1 Go to www.lg.com . Then, select your region. 2 Select Support. 3 Select Software & Drivers. Then, select SmartShare. 4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is complete.
  • Page 41 (Screen Share) 1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program. * LG TVs do not need to register. * For more information on Intel® WiDi, visit http://intel.com/go/widi . 2 It detects LG Smart TVs available, which supports WiDi.
  • Page 42 Troubleshooting Wi-Fi Network Problems Checkpoints • Make sure that you have the latest version of the software. - If you are using a Wi-Fi router, check whether you have the latest firmware installed. - If there are any available updates, update the firmware according to the manufacturer's instructions. - Check the current software version and if there is an available update, install it.
  • Page 43 • Interference Factors If there is any interference from surrounding equipment, the network connection may be weak or unstable. - Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth - Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth - Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth - Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate in the 2.4 GHz or 5 GHz bandwidth.
