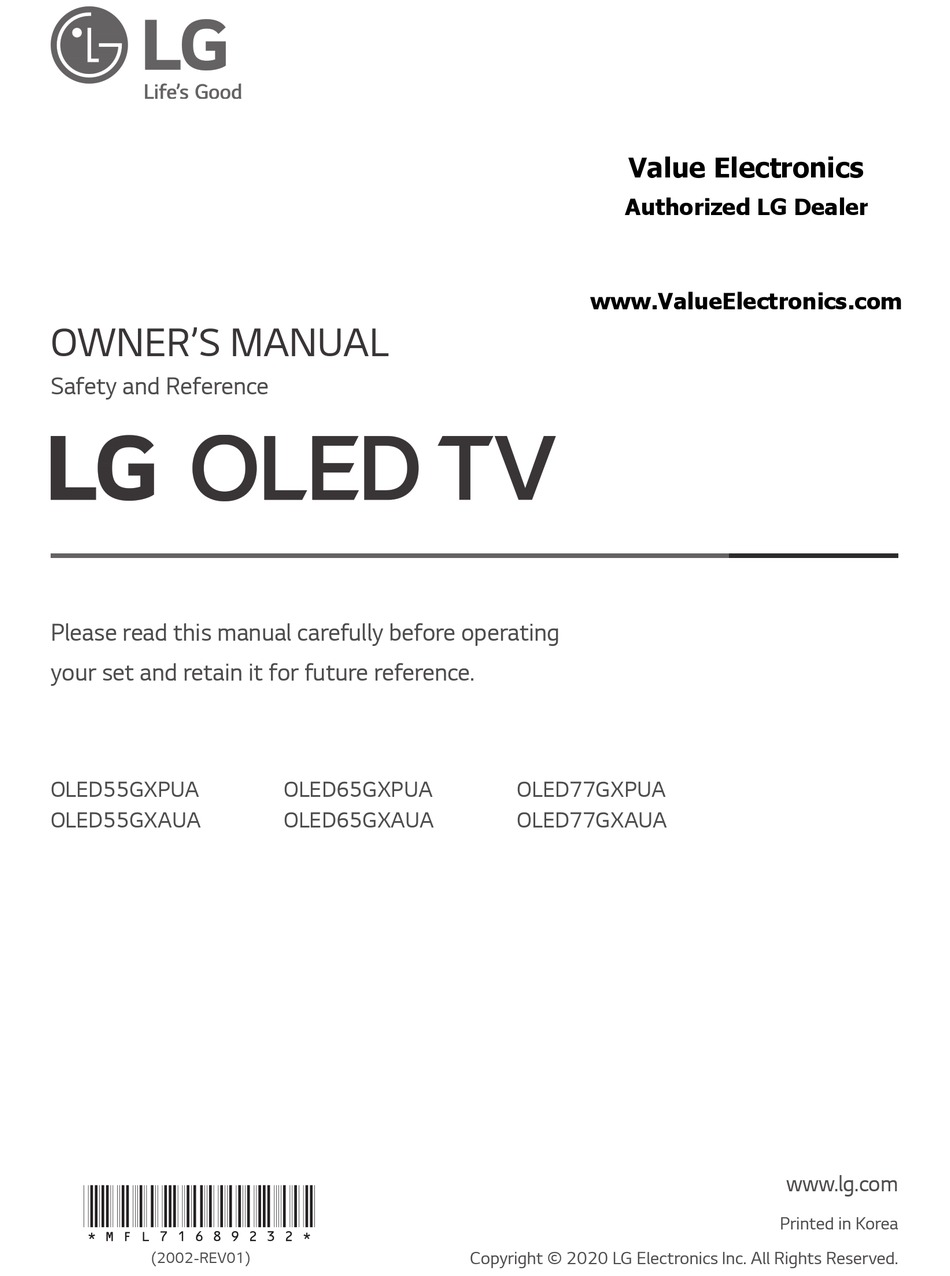

OWNER'S MANUAL
Safety and Reference
Please read this manual carefully before operating
your set and retain it for future reference.
OLED55GXPUA
OLED55GXAUA
*MFL71689232*
(2002-REV01)
OLED65GXPUA
OLED65GXAUA
Value Electronics
Authorized LG Dealer
www.ValueElectronics.com
OLED77GXPUA
OLED77GXAUA
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com
Printed in Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLED55GXPUA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG OLED55GXPUA

Summary of Contents for LG OLED55GXPUA

  • Page 1 OWNER’S MANUAL Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. OLED55GXPUA OLED65GXPUA OLED77GXPUA OLED55GXAUA OLED65GXAUA OLED77GXAUA www.lg.com *MFL71689232* Printed in Korea (2002-REV01) Copyright © 2020 LG Electronics Inc. All Rights Reserved.

  • Page 2: Important Safety Instruction

    By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not limited to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration agreement (including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.com/ca_en/arbitration...
  • Page 3 Antenna grounding according to the National Electrical Code, the TV to direct air conditioning. ANSI/NFPA 70 - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, combustion/ explosion, malfunction or product deformation. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 4 • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

  • Page 5: Optional Extras

    HDMI cable, the screen may not display or a connection error may occur. • Recommended HDMI cable types (3 m (9.84 ft) or less) - Ultra High Speed HDMI /™ cable ® Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 6: Wall Mounting Bracket

    • When holding the TV, the screen should face away from you to When attaching the stand to the TV set, place the screen avoid damage. facing down on a cushioned table or flat surface to protect the screen from scratches. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 7 When installing on a cabinet or a shelf using a stand, make sure its width is greater than that of the TV. Do not fasten the screws with excessive force otherwise they may strip and become loose. Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 8: Mounting To The Wall

    Detailed instructions will be included with the wall mount. proper installation. We recommend that you use an LG brand wall mount. The LG wall • Professional installers should forward this manual to customers mount is easy to adjust or to connect the cables. When you do not use after installation and encourage them to read and store it in a LG’s wall mount bracket, use a wall mount bracket where the device is...

  • Page 9: Before Installation

    Do not wipe the product with a wet towel or use any LG is not responsible for problems caused by improper installation heating equipment or humidifier under the place where of the product, e.g., heavily tilted walls and ceilings.
  • Page 10 • Use a Ø 8 mm (0.31 inches) drill bit and hammer (impact) drill for concrete. 5 Tighten screws for fixing the wall mount to the holes. At this time, tighten the screws to a torque of between 45 kgf/cm (39.06 lbf/in) to 60 kgf/cm (52.08 lbf/in). Wall mounting screw Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 11: After Installation

    After installing the product, be sure to use it adhered to quality, connect the external device and the TV with the HDMI cable. the wall. - Using the product while it is not adhered to the wall may damage or shake the product. Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 12: External Devices

    (MVPD). Remote RS-232C setup To obtain the RS-232C external control setup information, please visit www.lg.com . Download and read the manual, (Depending upon model). Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

  • Page 13: Using Button

    When the TV is turned on, press the button one time. You can adjust the Menu items using the button. Turns the power off. Changes the input source. Adjusts the volume level. Scrolls through the saved channels. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 14 (INPUT) Changes the input source. (INPUT) Accesses the [Home Dashboard]. These access special functions in some menus. , (Control buttons) Controls media contents. (Some buttons and services may not be provided depending upon models or regions.) Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 15: Registering Magic Remote Control

    Please contact your local authorities for disposal or recycling information. Batteries inside or inside the product shall not be exposed to excessive heat such as sunshine, fire or the like. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 16 Make sure to wring any excess water or cleaner from the cloth. Do not spray water or cleaner directly onto the TV screen. Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen. Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 17: Specifications

    0 °C to 40 °C (32 °F to 104 °F) Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 18: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com .
  • Page 19 → → [Picture] → [Picture Mode Settings] → [Picture static image on the screen for a long time. LG OLED TVs incorporate Mode] → [APS] dedicated functions that protect the screen from possible image →...
  • Page 20 Regulatory Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 21 Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 22 Value Electronics Authorized LG Dealer www.ValueElectronics.com...

  • Page 23: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES TUNE IN TO SAFETY ALWAYS ALWAYS NEVER NEVER ALWAYS ALWAYS WALL OR CEILING MOUNT YOUR TELEVISION ALWAYS ALWAYS ALWAYS ALWAYS MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME ALWAYS NEVER...
  • Page 24 Cliffs, NJ 07632 Telephone (201)266-2215 LG Customer Information Center For inquires or comments, visit www.lg.com or The model and serial number of the product are located call; on the back and on one side of the product. Record them below in case you ever need service.

  • Page 25: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. Value Electronics Authorized LG Dealer www.lg.com www.ValueElectronics.com P/NO : MFL71445401 (1901-REV00)

  • Page 26: Key Codes

    R/C Button TV / PC R/C Button SOUND R/C Button * Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan, North America, Latin America except Colombia models) Value Electronics www.ValueElectronics.com Authorized LG Dealer...
  • Page 27 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C) RS-232C IN converter which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 28 Press the Navigation buttons to scroll to SET ID and press OK. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99. When you are finished, press EXIT. * (Depending on model) Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 29 * Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not executed and treated as NG. With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on. Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 30 01 00 : Step 256 0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998 10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999 Value Electronics Authorized LG Dealer www.ValueElectronics.com...
  • Page 31 ► To select screen mute on/off. Value Electronics Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Authorized LG Dealer Video mute off 01 : Screen mute on (Picture off) 10 : Video mute on www.ValueElectronics.com...
  • Page 32 Value Electronics released. * In the standby mode (DC off by off timer or ‘ka’, Authorized LG Dealer ‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.
  • Page 33 Value Electronics channel number. The Physical number is the actual digital channel number, the Major is the number that Authorized LG Dealer the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a www.ValueElectronics.com...
  • Page 34 Set ID = All = 00 Value Electronics Data 00 = Channel Data is 35 = 23 Authorized LG Dealer Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00...
  • Page 35 Control Panel Light (Command: m g) • For Plasma TV ► To control the panel light. Value Electronics Transmission [m][g][ ][Set ID][ ][Data][Cr] Authorized LG Dealer Data Min : 00 to Max : 64 Ack [g][ ][Set ID][ ][OK/NG][Data][x] www.ValueElectronics.com...
  • Page 36 00 : Right to Left 01 : Left to Right Value Electronics 2) When [Data 00] is 01, 02 Authorized LG Dealer Data Min: 0 - Max: 14 (*transmit by Hexadecimal code) Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model) www.ValueElectronics.com...
  • Page 37 Value Electronics Authorized LG Dealer www.ValueElectronics.com...
