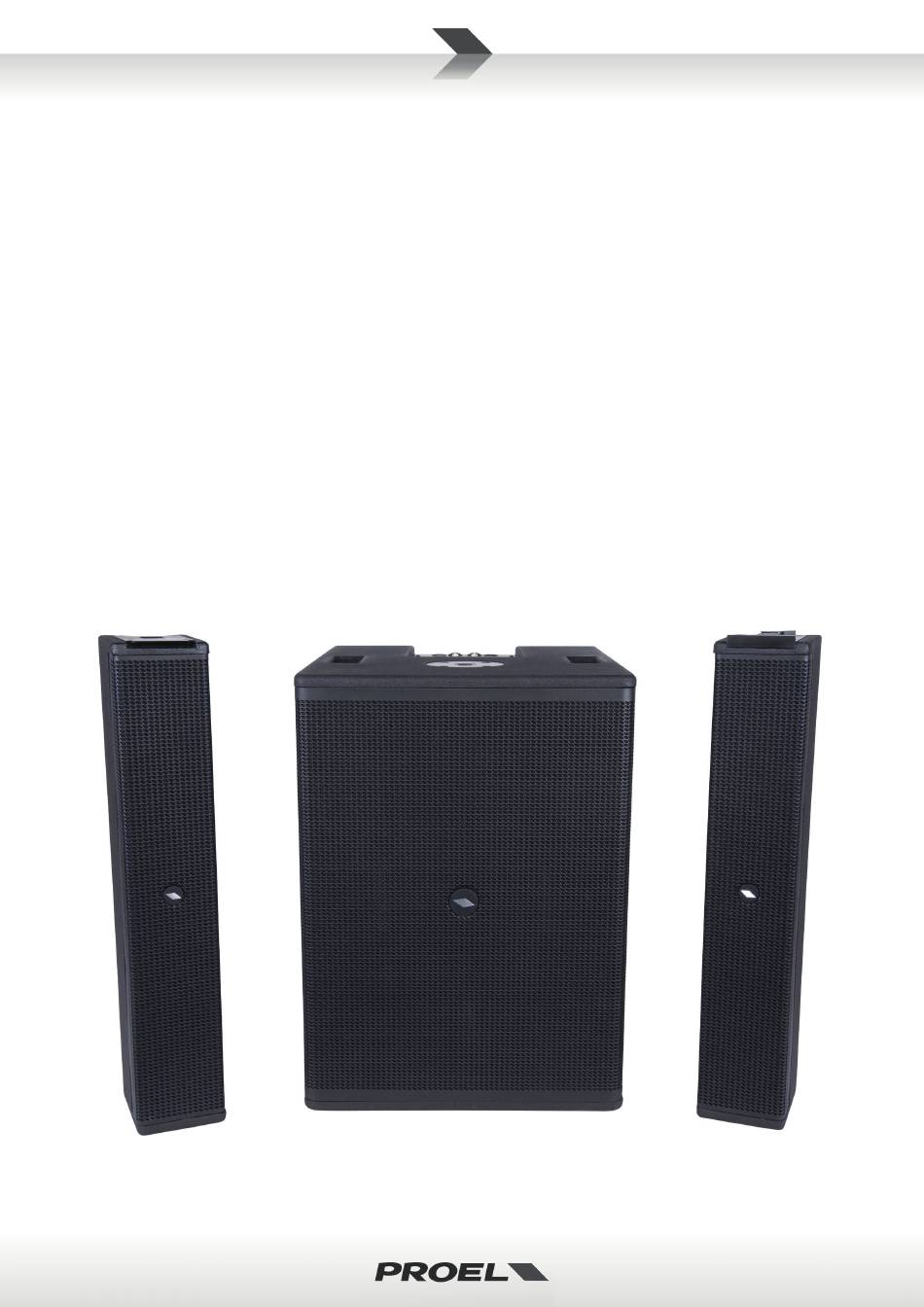

  • Page 1 SESSION6 compact portable line array USER MANUAL MANUALE D'USO...
  • Page 3 PROEL. PROEL reserves the right to make any aesthetic, functional or design modification to any of its products without any prior notice.

  • Page 4: Quick Start: Stereo Mode

    Quick Start: STEREO MODE Avvio Rapido: MODO STEREO 1) Connect a line level sound source to inputs LEFT & RIGHT. Collegate una sorgente a livello linea agli ingressi LEFT & RIGHT. 2) Connect the TOPS to the TOP LEFT and TOP RIGHT outputs. Collegate i TOPS alle uscite TOP LEFT e TOP RIGHT.

  • Page 5: Quick Start: Dual Mode

    Quick Start: DUAL MODE Avvio Rapido: MODO DUAL 1) Connect the sound sources to CH1 and/or CH2 inputs, for example a microphone 2) Connect the TOPS to the TOP LEFT and TOP RIGHT outputs. Collegate i TOPS alle uscite TOP LEFT e TOP RIGHT. 3) Arrange the system at the correct height, with the TOP’s lower speaker at the same height of the lower listener’s ears.

  • Page 6: Quick Start: Mono Mode

    Quick Start: MONO MODE Avvio Rapido: MODO MONO 1) Connect the sound sources to CH1 and/or CH2 inputs, for example a microphone Connect TOP A to the LEFT TOP OUTPUT using the supplied 4-wire cable. Collegate tra loro i due TOPS con il TOP A in basso e il TOP B in alto (vedi pagina 14). in dotazione.

  • Page 7: Quick Start: Double Mode

    Quick Start: DOUBLE MODE Avvio Rapido: MODO DOUBLE 1) Connect a line level sound source to the CH 1 input of both systems. Collegate una sorgente a livello linea all’ingresso CH1 di entrambi i sistemi. TOP B on top (see page 14). Connect TOP A to the LEFT TOP OUTPUT using the supplied 4-wire cable.

  • Page 8: Table Of Contents

    INDEX INDICE Quick Start: STEREO MODE ....4 Avvio Rapido: MODO STEREO ....4 Quick Start: DUAL MODE .

  • Page 9: Supplied Accessories

    ESO1500LU10 Professional SPEAKON cable (2 x 4 mm ), length: 10 m. Cavo SPEAKON professionale (2 x 4 mm ), lungh.: 10 m. COVERSESSION6 COVERSESSION6 Protection cover for the subwoofer. Copertura di protezione per il subwoofer. FRE300BK ESO1500LU10 COVER SESSION6...

  • Page 10: Connections (Fig.1)

    CONNECTIONS (FIG.1) CONNESSIONI (FIG.1) ring - cold cold sleeve - ground ground MIC/LINE IN INGRESSO MIC/LINE LINE IN LINE Jack (balanced) Jack (bilanciato) Balanced male XLR XLR bilanciato maschio ground cold cold ground MIC/LINE IN INGRESSO MIC/LINE LINK (output) LINK (uscita) Jack (unbalanced) Jack (sbilanciato) Balanced female XLR...

  • Page 11: Control Panel (Fig.2)

    CONTROL PANEL (FIG.2) PANNELLO DI CONTROLLO (FIG.2) IGLASS IGLASS...

  • Page 12: Dsp Operations (Fig.3)

    DSP OPERATIONS (FIG.3) FUNZIONI DSP (FIG.3) STEREO 1-MUSIC VOLUME: 0dB CH1:LINE CH2:LINE VOLUME: 0dB VOLUME: MUTE PUSH TO EDIT SETUP PAGE 1/8 STEREO PUSH TO EDIT SETUP PAGE 1/9 DUAL IN LEVEL PAGE 2/9 GAIN 1: LINE PUSH TO EDIT LEVEL1: GAIN 2: LINE...
  • Page 13 PUSH TO EDIT BLUETOOTH PAGE 5/8 PUSH TO EDIT PAGE 6/8 CONTRAST: 9 CONTRAST: 0 CONTRAST=5 PUSH TO EDIT INFO PAGE 7/8 CORE LT DSP Model: SESSION6 FWR rel: 1.0 PROEL EXIT PAGE 8/8 EXIT PUSH AND RETURN TO MAIN PAGE...

  • Page 14: Stereo & Dual Mode Connection

    STEREO & DUAL MODE CONNECTION CONNESSIONE MODO STEREO & DUAL Note: in this configuration the system works properly also if TOPS A and B are inverted. You can use equally the supplied 4-wire cable + one optional 2-wire cable or two optional 2-wire cables.
  • Page 15 must NEVER be inverted and the supplied 4-wires SPEAKON cable must ALWAYS with the subwoofer. IMPORTANTE: quando si collegano i due TOPS, la posizione di A & B non deve MAI SEMPRE per la connessione con il subwoofer. 4 WIRES SPEAKON CABLE lenght = 2 m (SUPPLIED WITH THE PRODUCT) CAVO SPEAKON 4 FILI lunghezza = 2 m (FORNITO CON IL PRODOTTO)

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS SPECIFICHE TECNICHE SYSTEM System type Portable Powered 2.1 System with Two Line Array Tops and One Subwoofer Maximum SPL Output 128 dB peak system output (pink noise) Frequency Response (-10dB) 38Hz – 20kHz SPEAKERS LF Driver 2 x 10” (254mm) woofer in Bass-Reflex configuration HF Driver 12 x 3.25”...

  • Page 17: Dimensions

    DIMENSIONS DIMENSIONI 49 cm 42 cm 19.3" 16.5" M20 pole adaptor A - B connection and interlocking (used with MONO setup only) ø35mm Pole Adaptor 11.2 cm 4.4" 13.2 cm 5.2"...

  • Page 18: Safety And Precautions

    • Sometimes it helps to plug all audio equipment into the same AC circuit so they share a common ground. CE CONFORMITY • Proel products comply with directive 2014/30/CE (EMC), as stated in EN 55103-1 and EN 55103-2 standards and with directive 2014/35/CE (LVD), as stated in EN 60065 standard.

  • Page 19: Packaging, Shipping And Complaint

    This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage"...

  • Page 20: General Information

    SPL. The system is powered by a 3-channel 2400W Class D amplifier and it’s controlled by the powerful PROEL CORE LT DSP, able to deliver an outstanding sound definition. The signal processing includes a sophisticated Dynamic EQ and 4 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH) to adapt the speakers to any kind of application.
  • Page 21 WARNING: REPLACE THE PROTECTION FUSE ONLY WITH SAME TYPE AS SHOWN ON THE PRODUCT. IF, AFTER THE REPLACEMENT, THE FUSE BLOWS AGAIN, DO NOT REPLACE IT AGAIN BUT CONTACT THE NEAREST PROEL SERVICE CENTER. 12. AC~ socket Here’s where you plug in your speaker’s mains supply cord. You should always use the mains cord supplied with the speaker.

  • Page 22: Dsp Settings ( Fig.3 )

    START section (pages 3-6). The available modes are the following: 1 - STEREO: SESSION6 is set as a standard stereo system and connected to a device (usually a mixing console) with a STEREO LINE output. LEFT and RIGHT inputs are set with LINE sensitivity and sent to amplifier's left and right channels.
  • Page 23 BLUETOOTH devices could connect to the SESSION6. After you turn ON the BLUETOOTH, "SESSION6" should appear in the list of the available devices in your BLUETOOTH player: choose to connect it and, after a few seconds, you can play your music thru the system.

  • Page 24: Avvertenze Per La Sicurezza

    AC, in modo che tutti gli apparati condividano la stessa presa di terra. CONFORMITÀ CE • I Prodotti Proel sono conformi alla direttiva 2014/30/CE (EMC), secondo gli standard EN 55103-1 ed EN 55103-2 ed alla direttiva 2014/35/CE (LVD), secondo lo standard EN 60065.

  • Page 25: Imballaggio, Trasporto E Reclami

    Sono esclusi dalla garanzia difetti causati da uso improprio o manomissione. Proel SpA constata tramite verifica sui resi la difettosità...

  • Page 26: Informazioni Generali

    2.5" , in grado di fornire bassi molto veloci e dinamici, insieme ad una risposta estesa alle basse frequenze. Il sistema è alimentato da un amplificatore a 3 canali da 2400W in classe D ed è controllato dal potente PROEL CORE LT DSP, in grado di fornire una straordinaria definizione audio.
  • Page 27 CARATTERISTICHE RIPORTATE SUL PRODOTTO. SE DOPO LA SOSTITUZIONE, IL FUSIBILE INTERROMPE NUOVAMENTE IL FUNZIONAMENTO DELL'APPARATO, NON INSISTERE E CONTATTARE IL SERVIZIO ASSISTENZA PROEL. 12. AC~ (presa di alimentazione di rete) In questa presa va inserito il cavo di alimentazione di rete dell'altoparlante. Si raccomanda di utilizzare esclusivamente il cavo di alimentazione in dotazione all'altoparlante.

  • Page 28: Impostazioni Dsp ( Fig.3 )

    2-DUAL: SESSION6 è impostato come un sistema mono, con i due TOPS installati su due supporti separati. Gli ingressi CH1 e CH2 possono essere impostati con sensibilità LINEA o MICROFONO (per cui possono accettare strumenti e/o microfoni), sono sommati insieme ed inviati ad entrambi i canali sinistro e destro dell'amplificatore.
  • Page 29 BLUETOOTH è spento, per evitare che altri dispositivi BLUETOOTH indesiderati possano cercare di collegarsi al sistema. Dopo aver attivato il BLUETOOTH, "SESSION6" dovrebbe apparire nella lista dei dispositivi disponibili sul proprio riproduttore BLUETOOTH: selezionatelo per collegare il dispositivo e, dopo qualche secondo, sarà possibile riprodurre la musica attraverso il sistema.
  • Page 32 PROEL S.p.A. (World Headquarter) Via alla Ruenia 37/43 64027 Sant’Omero (TE) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.proel.com REV. 10/19 CODE 96MAN0147...
