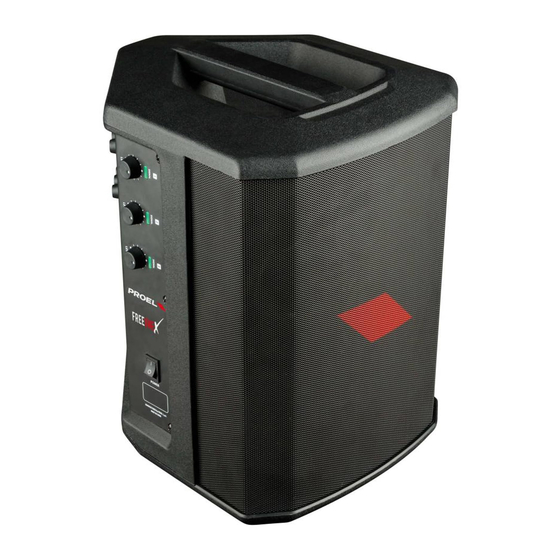

All-in one battery powered personal pa

Advertisement

Available languages

Available languages

Quick Links

ALL-IN ONE BATTERY POWERED PERSONAL PA
USER'S MANUAL
MANUALE D'USO
ENGLISH
ITALIANO
96MAN0190-REV.47/23

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Free One X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PROEL Free One X

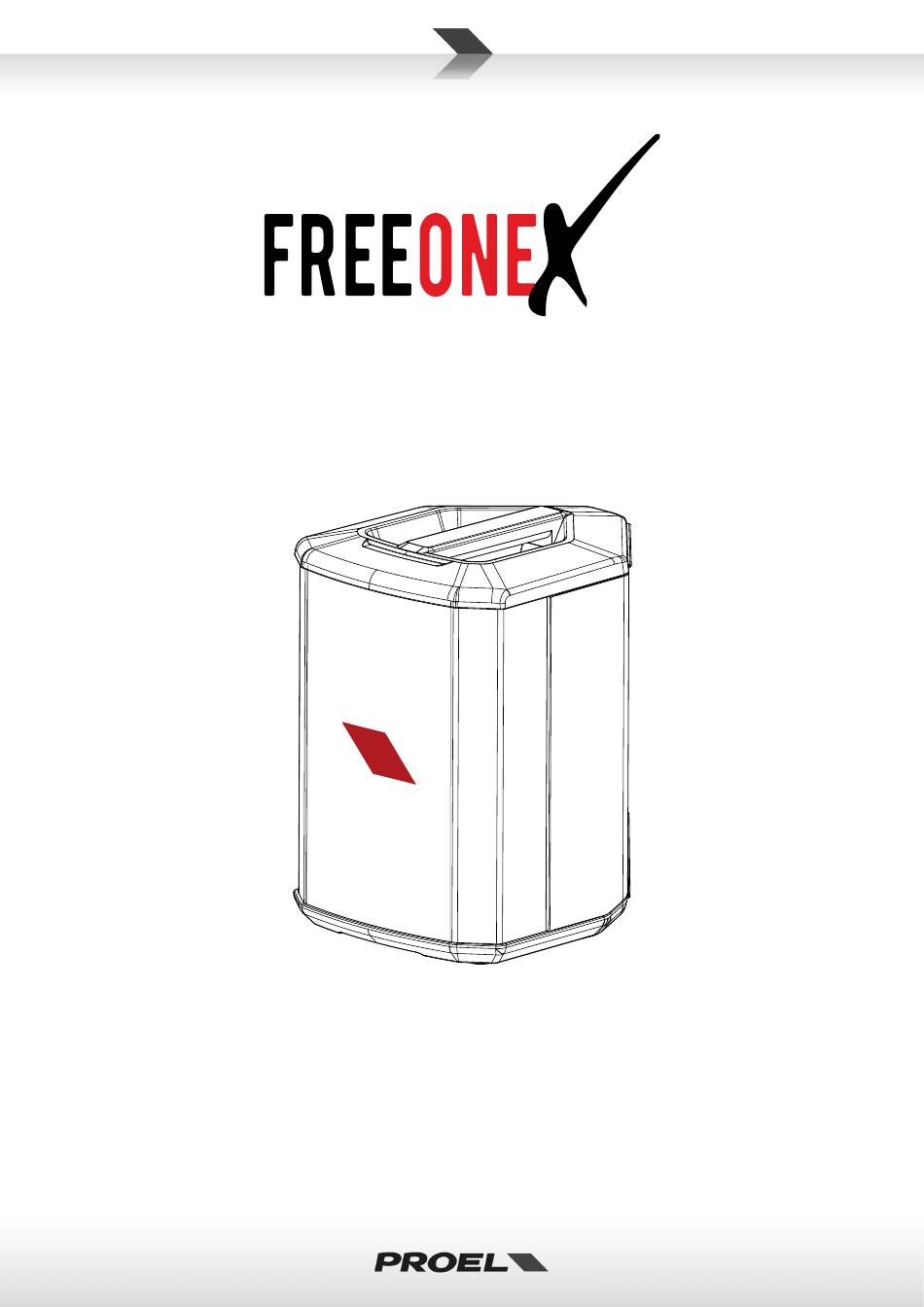

  • Page 1 ALL-IN ONE BATTERY POWERED PERSONAL PA USER’S MANUAL MANUALE D’USO ENGLISH ITALIANO 96MAN0190-REV.47/23...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to • the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3: Federal Communications Commission (Fcc) Statement

    This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired.
  • Page 4: Table Of Contents

    TECHNICAL SPECIFICATIONS ________________________________________________________ 10 INTRODUCTION Thank you for choosing a PROEL product. Please take some time to read this manual to understand all the features of your system and take advantage of all its performance capabilities. All PROEL products are CE approved and designed for continuous use in professional applications.
  • Page 5: Main Panel

    MAIN PANEL...
  • Page 6: Main Panel Operations

    MAIN PANEL OPERATIONS CH1 /CH2 INPUT These are a COMBO connectors that accept XLR plugs or JACK plugs. The balanced XLR input is wired as follows: Pin 1 = shield or ground Pin 2 = + positive or "hot" Pin 3 = - negative or "cold" It accepts any MIC level signal from a dynamic microphone connected using an XLR cable.
  • Page 7 10. LINE OUT (JACK) This female JACK connector provides an unbalanced line-level signal with the mix of all the inputs. Connect it to the input of another audio system or powered speaker. 11. USB PORT This USB port can be used to supply or recharge the user tablet/smartphone, or for service operation. 12.
  • Page 8: Connection Examples

    CONNECTION EXAMPLES The following images show some connection possibilities. Vocal mike, acoustic guitar and tablet or smartphone via bluetooth. Vocal mike, electric guitar with pedals and personal computer with minijack connection. As personal monitor using a DI BOX to connect your instrument to a main mixer and to FREEONEX, also using the second input to listen the other musicians from an output of main mixer.
  • Page 9: Positioning Examples

    POSITIONING EXAMPLES The FREEONEX cabinet is designed to be used in several positions to obtain the best result for your application. On the ground tilted backwards For performances where your audience is close to you, tilt the FREEONEX onto its back edge and stand or sit to one side of the loudspeaker to avoid blocking the sound.
  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS System type 2-way vented enclosure with HF array High Frequency Device 3 x 2” HF speakers Low Frequency Device 1 x 6” woofer Frequency response (-3 dB) 60 Hz - 18 kHz Max. SPL 115 dB Coverage angle (H x V) 120°...
  • Page 11: Istruzioni Di Sicurezza Importanti

    ISTRUZIONI DI SICUREZZA IMPORTANTI Guarda questi simboli: • Il lampo con la freccia all'interno di un triangolo equilatero ha lo scopo di avvisare l'utente della presenza di "tensione pericolosa" non isolata all'interno della custodia del prodotto, che può essere di ampiezza sufficiente a costituire un rischio di scossa elettrica per le persone.
  • Page 12: Dichiarazione Di Conformità

    GARANZIA LIMITATA Proel garantisce tutti i materiali, la lavorazione e il corretto funzionamento di questo prodotto per un periodo di due anni dalla data di acquisto originale. I difetti rilevati entro il periodo di garanzia sui prodotti venduti, attribuibili a materiali difettosi o difetti di costruzione, devono essere tempestivamente segnalati al proprio rivenditore o distributore, allegando evidenza scritta della data di acquisto e descrizione del tipo di difetto riscontrato.
  • Page 13: Indice

    SPECIFICHE TECNICHE _____________________________________________________________ 19 INTRODUZIONE Grazie per aver scelto un prodotto PROEL. Dedicate del tempo alla lettura di questo manuale per comprendere tutte le funzionalità del vostro sistema e sfruttare al massimo le sue possibilità operative. Tutti i nostri prodotti sono conformi alle normative CE per un utilizzo continuo in applicazioni professionali.
  • Page 14: Pannello Principale

    PANNELLO PRINCIPALE...
  • Page 15: Funzioni Del Pannello Principale

    FUNZIONI DEL PANNELLO PRINCIPALE CH1 / CH2 INPUT Si tratta di connettori COMBO che accettano connettori XLR o JACK. L'ingresso XLR bilanciato è cablato come segue: Pin 1 = schermo o terra Pin 2 = + positivo o "caldo" Pin 3 = - negativo o "freddo" Accetta qualsiasi segnale di livello MIC da un microfono dinamico collegato tramite un cavo XLR.
  • Page 16 Ring (anello) = segnale positivo del canale destro Sleeve (manicotto) = schermo o massa 10. LINE OUT (XLR) Connettore JACK femmina che fornisce un segnale non bilanciato a livello linea con il mix degli ingressi. Collegarlo all’ingresso di un altro sistema audio o diffusore attivo. 11.
  • Page 17: Esempi Di Connessione

    ESEMPI DI CONNESSIONE Le immagini seguenti mostrano alcune possibilità di connessione. Microfono per voce, chitarra acustica e tablet o smartphone tramite bluetooth. Microfono per voce, chitarra elettrica con pedaliera e personal computer con connessione minijack. Come monitor personale utilizzando una DI BOX per collegare uno strumento al mixer principale e al FREEONEX, utilizzando anche il secondo ingresso per ascoltare altri musicisti da un'uscita del mixer principale.
  • Page 18: Esempi Di Posizionamento

    ESEMPI DI POSIZIONAMENTO Il FREEONEX è progettato per essere utilizzato in diverse posizioni, per ottenere il miglior risultato nelle diverse applicazioni. A terra inclinato all'indietro Per le esibizioni in cui il pubblico è vicino a te, inclina FREEONEX sul bordo posteriore e posizionati o siediti su un lato dell'altoparlante per evitare di ostacolare il suono.
  • Page 19: Specifiche Tecniche

    SPECIFICHE TECNICHE Tipo di Sistema 2-vie bass reflex con array HF Altoparlante per Alti 3 x 2” altoparlanti per alte frequenze Altoparlante per Bassi 1 x 6” woofer Risposta in Frequenza (-3 dB) 60 Hz - 18 kHz SPL Massima 115 dB Copertura Angolare (O x V) 120°...
  • Page 20 PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia 37/43 64027 Sant’Omero (Te) – Italy Tel: +39 0861 81241 Fax: +39 0861 887862 https://soundsystems.proel.com/...
