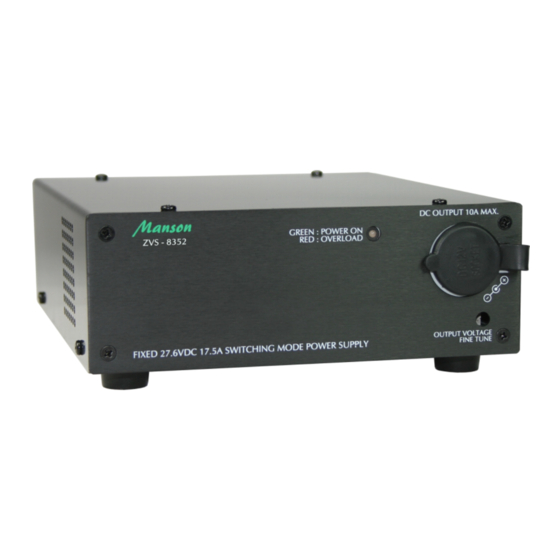

ZVS-8350 / 8352 / 8354 Fixed Voltage
INTRODUCTION
This fixed voltage switching mode power supply is designed with high RFI stability especially for DC operated radio
equipment. It is also suitable for a variety of applications that need a clean DC source.
The concealed trimmer allows fine tuning of output voltage range of 12 ~ 14.5V for ZVS-8350, 24 ~ 29V for ZVS-8352 &
48 ~ 57V for ZVS-8354.
Constant current circuitry is used for overload and short circuit, red indicator will turn ON. Over temperature protection will
shut down the output and the indicator will turn off. This power supply also has Over Voltage Protection to prevent your
connected equipment from damage by abnormal high output voltage.
With the optional accessory, unit can be easily converted to 19" rack mount construction.
Please read through this manual and pay special attention to the caution and safety precautions.
Keep this manual in an easy to find place for future reference.
CAUTIONS
DO NOT use this power supply for high inductive load such as solenoid or motorized equipment because of the inductive kick
back from the output may damage the power supply.
DO NOT operate power supply immediately with a newly replaced fuse before the fault has been found and rectified. Make
sure to use the same rating and type as the original fuse.
SAFETY PRECAUTIONS
Never remove the casing when the power supply is connected to AC or load.
Never touch the unit when your hands are wet.
Never block any of the grille openings or allow foreign object to get inside .
Must use a mains AC 3 pin socket with effective grounding.

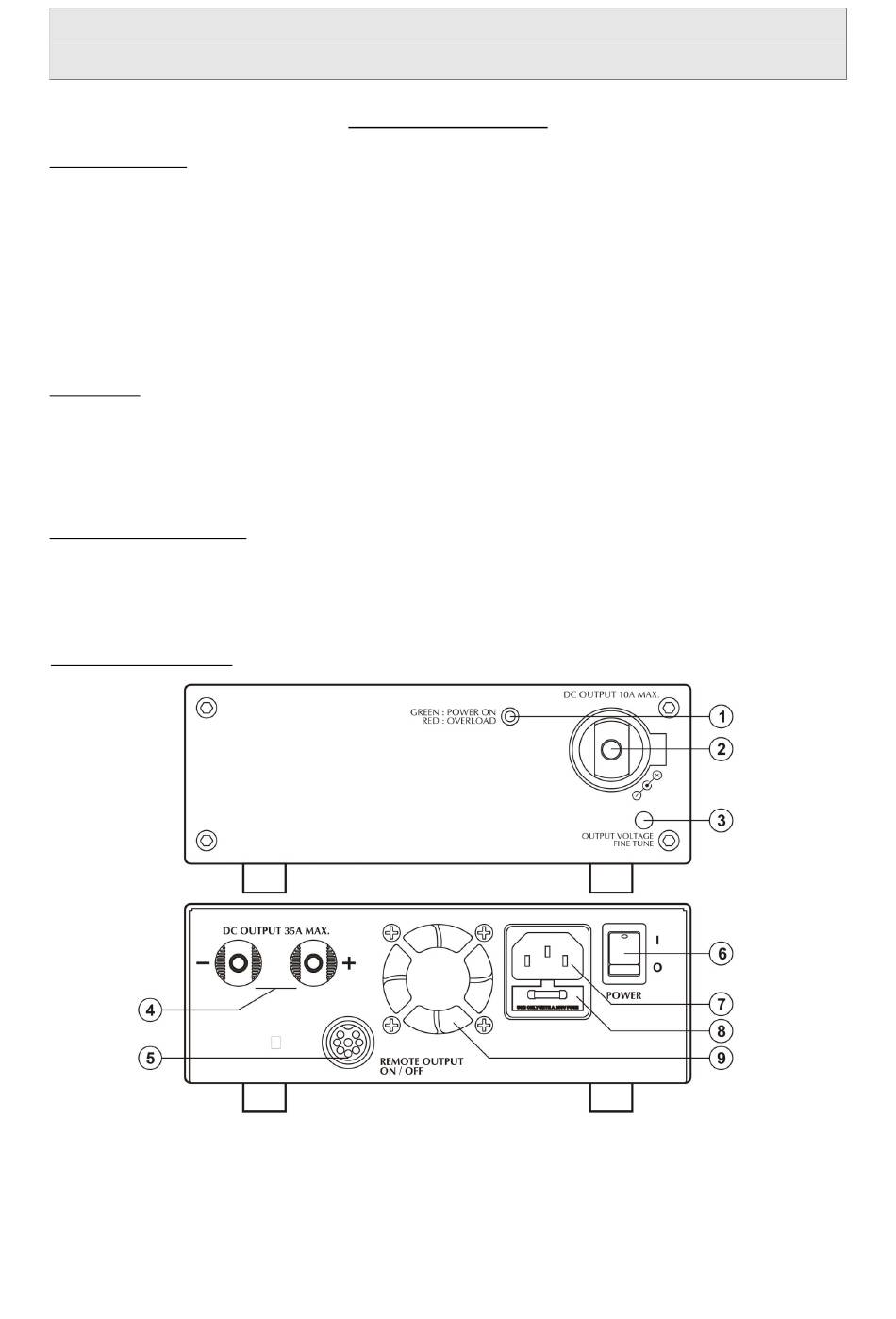

PANEL DESCRIPTION
1.Indicator: GREEN - Power ON, RED - Overload & Output Short Circuit Protection,
OFF - Over Temperature
2. Cigar Socket with center positive (10A max.) only for ZVS-8350/ZVS-8352
3. Fine tune access port.
4. Main DC Output Binding Post
6. ON / OFF Switch
8. Cover Fuse Holder
Switching Mode Power Supply
USER'S MANUAL
(Range : 12-14.5V for ZVS-8350, 24 -29V for ZVS-8352 & 48-57V for ZVS-8354)
5. Remote Output ON/OFF socket
7. AC Power Input Connector
9. Cooling Fan (Variable speed)
Advertisement
Table of Contents
Related Manuals for Manson Engineering Industrial ZVS-8354
Summary of Contents for Manson Engineering Industrial ZVS-8354
- Page 1 2. Cigar Socket with center positive (10A max.) only for ZVS-8350/ZVS-8352 3. Fine tune access port. (Range : 12-14.5V for ZVS-8350, 24 -29V for ZVS-8352 & 48-57V for ZVS-8354) 4. Main DC Output Binding Post 5. Remote Output ON/OFF socket 6.
- Page 2 INSTALLATION 1. This power supply is designed for indoor use only , put the unit in a well ventilated place and allow at least 50mm(2 in.) space on two sides and the back to allow sufficient fan cooling. 2. Check for the correct input AC voltage with the rating label on the power supply Make sure your mains plug is of 3 pin version and the ground pin is effective as the grounding of the power supply will prevent electrical shock caused by leakage.
- Page 3 FINE TUNING THE OUTPUT VOLTAGE (12 ~14.5V for ZVS-8230, 24 ~ 29V for ZVS-8232 & 48 ~ 57V for ZVS-8354 ) This regulated power supply has been factory preset at a stable DC output. Rarely you need to do any fine tuning under normal operation .
