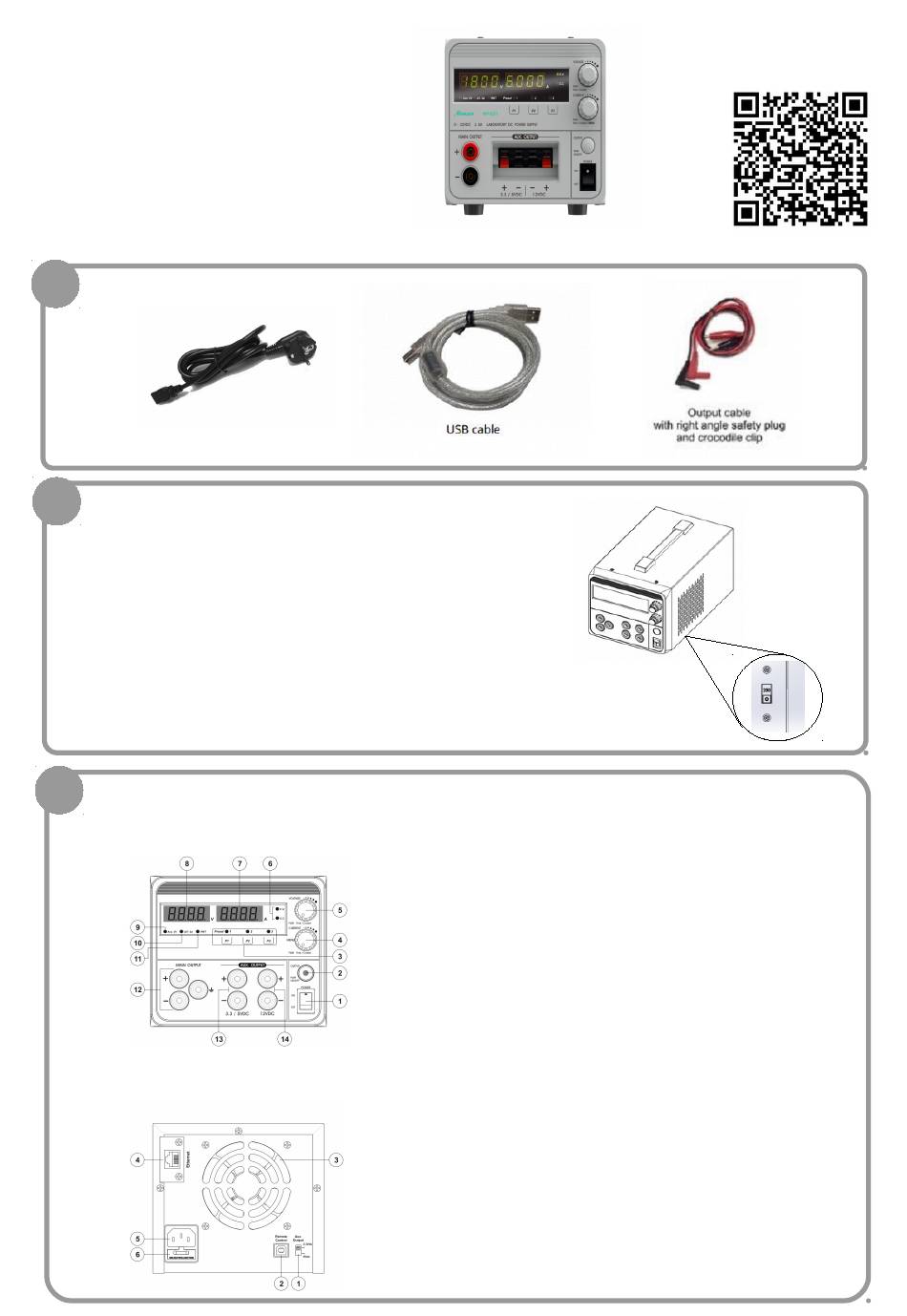

Quick
Start
Guide

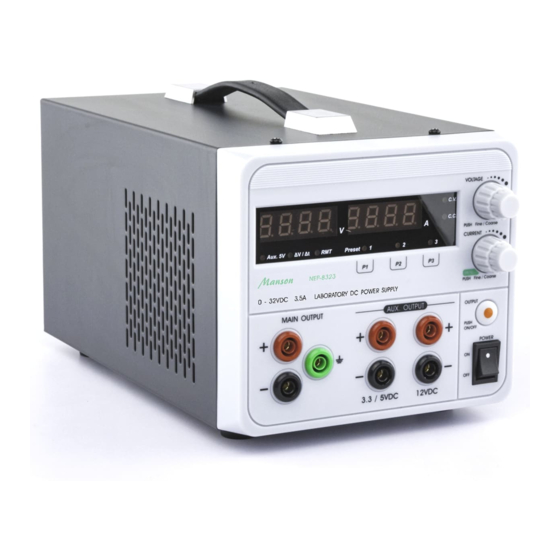

NEP-8323, NEP-8186
Multi Output Linear Mode Remote
Programming Laboratory Grade Power Supply
1
Accessories
AC power cord
2
AC Voltage Selection
Please select correct Input AC voltage before
●
connect AC power cord.
The AC selection switch is location on the
●
bottom of power supply.
Select 115 for 100Vac to 126Vac
●
Select 230 for 207Vac to 253Vac
●
3
Indications, buttons and knobs
Front Panel
Back Panel
1 - Main Power Switch
2 - Output ON/OFF button
3 - Preset 1/2/3 selection and LED indication
4 - Main output Current limit adjust knob and Menu entry
5 - Main output Voltage limit adjust knob
6 - C.V./C.C. mode indication
7 - Ammeter
8 - Voltmeter
9 - Auxiliary Output 5V indicator
10 - Wave Form generation cycle running indicator
11 - Remote control indicator
12 - Adjustable Main Output
13 - Auxiliary output 1 for 3.3V/5V
14 - Auxiliary output 2 for 12V
1 - Auxiliary 1 3.3V/5V selection
2 - USB Remote Control port
3 - Cooling Fan
4 - Ethernet port (Ethernet model only)
5 - AC power plug
6 - AC FUSE
QR code for user
manual download
