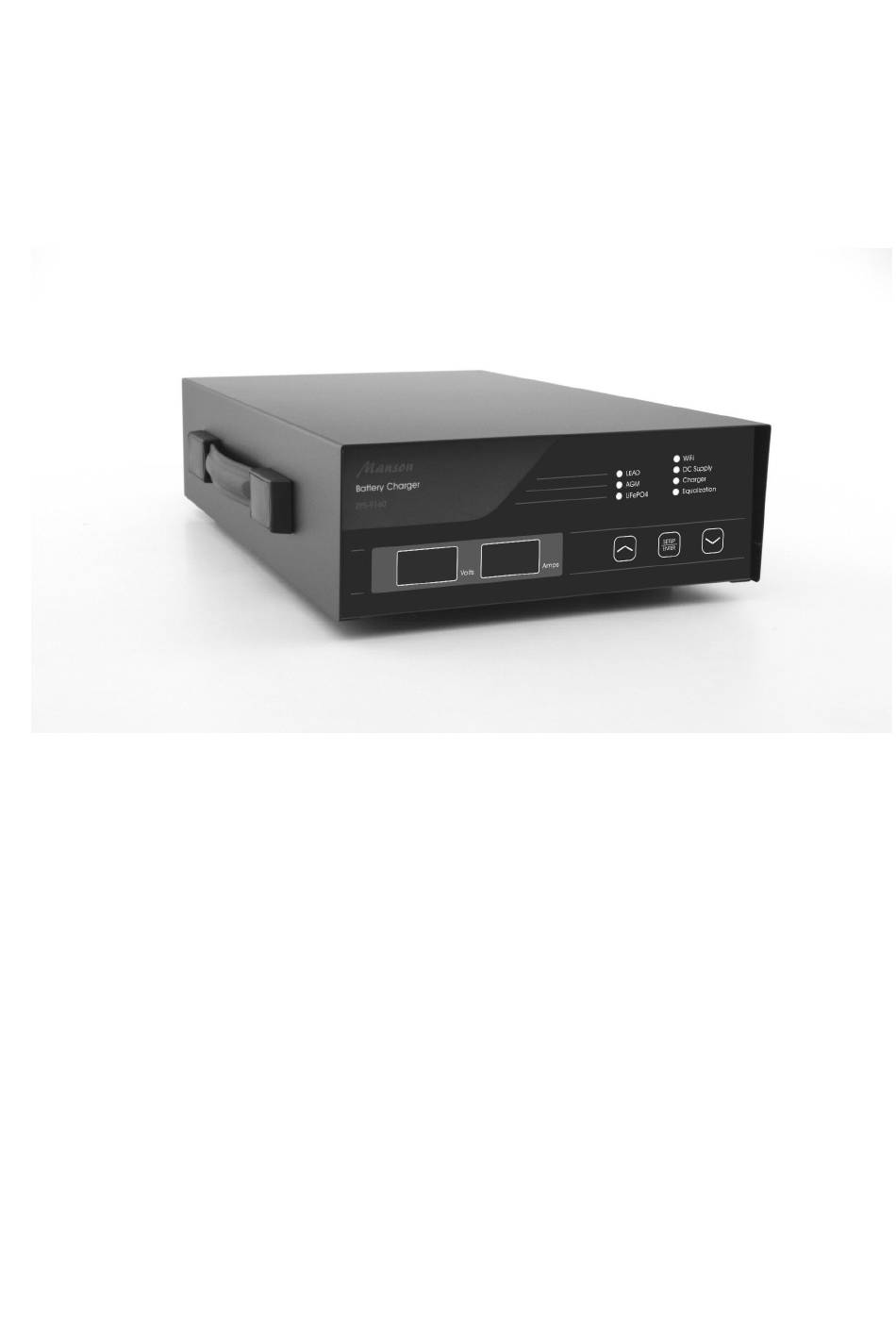

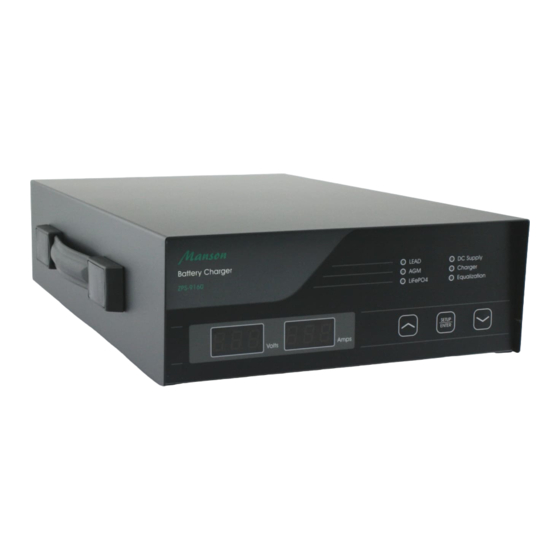

ZPS-9160/9230/9320/9415
Charger Power Supply for Car Showroom & Workshop
Operation manual
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety
and operation instructions for correct use of the battery charger.
Read through the manual and pay special attention to the markings
and labels of the charger, battery and equipment connected to the battery system.
Pay special attention to WARNING & PRECAUTIONS used in this manual.
REV.2 2020/06
7673-9160-0002
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Manson Engineering Industrial ZPS-9160
Summary of Contents for Manson Engineering Industrial ZPS-9160
- Page 1 ZPS-9160/9230/9320/9415 Charger Power Supply for Car Showroom & Workshop Operation manual Keep this manual in a safe place for quick reference at all times. This manual contains important safety and operation instructions for correct use of the battery charger. Read through the manual and pay special attention to the markings and labels of the charger, battery and equipment connected to the battery system.
- Page 2 P. 2...
-
Page 3: Warning/ Cautions
No part of this publication may be reproduced, or transmitted in any form or by any means without the written permission from Manson Engineering Industrial Ltd. Changes in the manual. Manson Engineering Industrial Ltd. has the right to update and change the content of this manual without any prior notice and obligation. Disclaimer Exclusions for documentation, Indemnity and Product application. - Page 4 DC power for different size batteries and frequency of demonstrations. remark : 12V to 15V and 60Amp is for ZPS-9160, refer to specification for other models In the Workshop, the charger can be used as a 5 Stage charger with specific charging profiles for Lead ,AGM 2, and LiFePO battery types.
- Page 5 3 Levels {1, 2, 3} 0, 2, 3, 5meters Set output cable length 0 means no compensation Save & exit Exit without save remark : 12V to 15V and 60Amp is for ZPS-9160, refer to specification for other models P. 5...
- Page 6 Set display brightness 3 Levels {1, 2, 3} 0, 2, 3, 5meters Set output cable length 0 means no compensation Save & exit Exit without save remark : 5 and 60Amp is for ZPS-9160, refer to specification for other models P. 6...
- Page 7 Set output cable length 0 means no compensation Save & exit Exit without save remark : 12V to 15V and 60Amp is for ZPS-9160, refer to specification for other models LiFePO battery Charging profile : Soft Start / Bulk / Absorption...
- Page 8 LiFePO battery All LiFePO battery banks have built-in BMS ( Battery Management System). The BMS monitors & controls: the safety functions, max charging current, max input voltage and other discharge safety feature of the battery. Always follow strictly to the warning, precautions and recommended max charging parameters, temperature from the battery manufacturer.
- Page 9 Example 2 : Changing the Application Mode Change to DC Supply Mode i. Press and hold the until appear. ii. Press the to enter iii. Press to cycle: LEAD > AGM 2 > LiFePO > DC Supply > LEAD > AGM 2 >….. Take note of the LEDs on right panel changes with above settings.
-
Page 10: Installation
Charging Cable Length Setting These settings provide compensation for voltage drop across a 8 AWG charging cable of 2 / 3 / 5 charging cables in high current application. The zero setting has no compensation effect. It is recommend to check on the internet for the appropriate cable size for specific length. Suggested cable size for different maximum output current Maximum current Cable size... - Page 11 - Anderson plug - Traditional terminal Select correct output cable length The charger has automatic voltage compensation feature. The value of compensation depends on cable length and output current. To get the best performance on compensation, it allows you to select 3 different length of cables.
- Page 12 WiFi Connection The WiFi is always ON. Use Smartphone Apps to connect charger for remote monitoring. The WiFi LED will ON when it is connected smartphone or router. Smartphone Apps There are Apps for iOS and Android can be used to monitor Manson ZPS-series Battery Charger. Please go to App Store or Google Play to search “Magnett Charger Monitor”...
- Page 13 Specifications Model ZPS-9160 ZPS-9230 ZPS-9320 ZPS-9415 AC input Voltage 110-240VAC 50/60Hz AC input Current <5A @ 230VAC No Load Input Current ≤320mA Output Voltage Lead Absorption : 14.4V Absorption : 28.8V Absorption : 43.2V Absorption : 57.6V Float : 13.6V Float : 27.2V...
