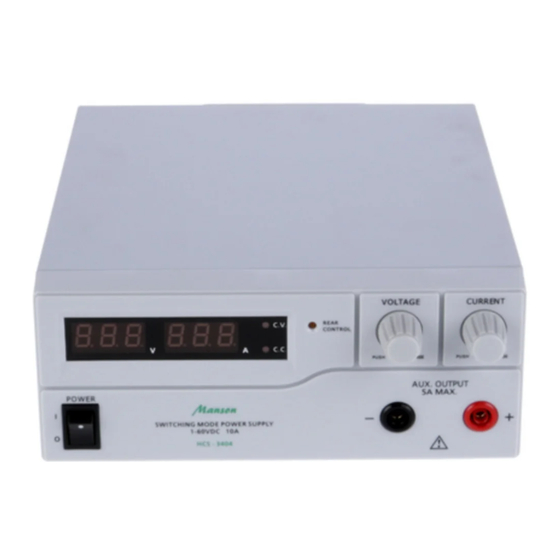

Remote Programmable Laboratory Grade Switching Mode Power Supply
1. INTRODUCTION
Since the introduction of HCS series power supplies in 2009, we have made numerous improvement within the limits of
the original hardware modules, firmware and software framework.
In the upgraded version of HCS series power supplies, both the hardware and the firmware have been modified, the
application software has a completely design in concert with the value added features.
Added features which can be done on the unit panel.
1. Reset no load current to zero on current meter.
2. Reset the 3 presets to factory default
2. WARNING
•
Do not use this power supply near water.
•
Do not operate or touch this power supply with wet hands.
•
Do not open the casing of the power supply when it is connected to ac mains.
•
Refer all servicing to qualified service personnel only.
•
Before replacing the AC fuse at AC socket, find out and clear up the cause first.
•
Replace the AC fuse with the same type and rating as the original fuse.
•
The max. output voltage of Model HCS-3404 is over 60VDC, avoid touch the metal contact part of the output
terminals.
•
This power supply is designed for using in non-cascade environment. It is not recommended to connect two or more
power supplies in parallel or in series.
•
Analogue Remote Control or Remote Programming via USB function is only suitable for stand-alone one unit
operation.
•
Do not use this power supply with electrical motors, solenoid or inductive load that generates a back EMF and
voltage transient which may damage the power supply
3. CAUTION
•
Use a grounded 3 pin AC source.
•
This unit is for indoor use only.
•
Do not operate or place this unit in a humid, dusty, in direct sunlight location or near any heat source.
•
Before plugging into local AC mains, check with the rating label at the back of the unit.
•
Do not block any ventilation openings of the unit.
•
This unit must be used within the specified rating, regular excessive continuous loading may cause damage to the
power supply.
•
The gauge size of input power cable must be at least 0.75mm
3m.
4. OPERATION ENVIRONMENTAL CONDITION
•
10-80% R.H.
•
Altitude up to 2000m
•
Installation category: CAT 2
•
Pollution degree: 2
•
Mains supply voltage fluctuation up to ±10% of the normal voltage
HCS-3400/3402/3404 USB
User Manual
and the total length of power cable must not exceed
2
Advertisement
Table of Contents
Related Manuals for Manson Engineering Industrial HCS-3400-USB
Summary of Contents for Manson Engineering Industrial HCS-3400-USB
- Page 1 HCS-3400/3402/3404 USB Remote Programmable Laboratory Grade Switching Mode Power Supply User Manual 1. INTRODUCTION Since the introduction of HCS series power supplies in 2009, we have made numerous improvement within the limits of the original hardware modules, firmware and software framework. In the upgraded version of HCS series power supplies, both the hardware and the firmware have been modified, the application software has a completely design in concert with the value added features.
-
Page 2: Controls And Indicators
5. CONTROLS AND INDICATORS Front Rear LED panel meter display with CC/CV Indictor Rear Control Indicator (lights up when using Preset/ Remote Control/ Set mode) Output Voltage Control Knob (control both the main and auxiliary output voltage) Output Current Control Knob (control both the main and auxiliary output current limit) Power ON/OFF Switch Aux. -
Page 3: Control Mode Selection
6. CONTROL MODE SELECTION There are 4 modes, Normal, Preset, Set and Remote Control mode for the power supply. Slide the Mode Selection Switch (8) to your desired Mode. The power supply is factory preset to Normal Mode with maximum current level CC. 6.1 Normal Mode This is the factory preset mode and the power supply output V, I, are controlled by the dual action volume knobs. -
Page 4: Using The Power Supply
7. Using the power supply 7.1 This series has 3 models. Make sure you have used the correct one. They have different output voltage range and current as following: Model Number Output Voltage Range Total Rated Current HCS-3400 1 ~ 16V 0 ~ 40A HCS-3402 1 ~ 32V... -
Page 5: Manually Zeroing Current Meter Offset
7.4 Using the control knobs The rotary encoder control knobs have fine and coarse tuning with clicking movement. Push the knobs to toggle between coarse and fine tuning, notice the subtle changes in brightness of related LED. . Adjust the knobs to your desired values by trying coarse and fine tuning. The display will resume its normal brightness after few seconds to confirm your adjustment. - Page 6 7.10 Reset 3 preset output P1/ P2/ P3 to factory default value In session 6.3, you learning how to set 3 preset output to you preferred value. In case you need to reset it to factory default, you can do it in MENU mode. Press and hold Voltage Control Knob for 30s to enter MENU mode.
-
Page 7: Analogue Remote Control Mode
8. ANALOGUE REMOTE CONTROL MODE There are two methods for remote control of current and voltage adjustment. Both methods require both the current remote control part and the voltage remote control part to be set up and be in used at the same time in order for analogue remote control mode to be functional. Otherwise unit will be in CC mode all the time and the analogue remote control will not be functional. -
Page 8: Remote Output On/Off Control
8.2 Method B Using two 0 – 5K Ohm variable resistors Two variable resistors must be set up at the same time in order for the remote control to be functional. Remark: variable resistors 5Kohm. Remote Socket Pin Assignment for variable resistor FUNCTIONS REMARKS Internal DC +5V... -
Page 9: Faults And Troubleshooting
9. FAULTS AND TROUBLE SHOOTING 9.1 OUP: Over Voltage Protection This unit has a built-in tracking over voltage protection feature. In the event of output voltage becoming greater than the set value (see specified range from specifications table), protection will be triggered and the output power will be cut off and OUP warning appears as below. - Page 10 S1 Err or S2 Err: RECALL switch or MODE switch is not located at the correct position In case the display shows S1 Err or S2 Err, it is indicated that the RECALL switch or the MODE switch at the rear panel is not located at the correct position or maybe something wrong with the switches which make them bad contact.
-
Page 11: Specifications
10. SPECIFICATIONS Models HCS-3400 HCS-3402 HCS-3404 Output Variable Output Voltage 1 - 16VDC 1 - 32VDC 1 - 60VDC Variable Output Current 0 - 40A 0 - 20A 0 - 10A Voltage Regulation Load (10-100% Load) 50mV Line (170-264VAC Variation) 20mV Current Regulation Load (10-90% Rated Voltage) -
Page 12: Pc Interface Control
Make sure you have downloaded or used the right USB driver for the USB port, check the Manson download links for the choice of right USB DRIVER. ALWAYS CHECK WITH: https://www.manson.com.hk/product/hcs-3400-usb/ There are many Windows versions, make sure you download the latest PC software version which support up to Windows 11. - Page 13 11.2 Setting of UVL, UCL, sampling time & firmware update In the setting page, you can do general setting for the program. The software will automatic detect power super model and COM port used You can select language for the program You can select the COM Port for power supply connected You can set sampling time for data log by adjust slide bar You can set your output voltage upper limit (UVL) value to further safeguard your low voltage applications.
- Page 14 11.3 Display panel The display show following information - Output Voltage value - Output Current value - Output Power value - Output On/Off status - C.V./ C.C. Model - Setting values 11.4 Set output value and On/Off status You can directly type the desired output voltage & output current and then click “Set” button to set the value. Or you can use slide bar to adjust the value.
-
Page 15: External Timed Program
11.5 External Timed Program External Timed Program is completely controlled by PC, PC counts the time and changes voltage and current of power supply. Select External Timed Program tab to switch to the External Timed Program tab. - Double click on the cell that you would like to set value. For example Step 2 voltage. - Slide the bar to configure the value. - Page 16 11.6 Internal Preset Memory The PC interface remote mode really eliminates the tedious process in keying in groups of entries on the power supply. Because all the data are displayed together in the monitor, possibility of wrong entry is greatly reduced. Data of different groups can be classified, stored, exported and retrieved for use at any time.
- Page 17 11.7 Data Log Data Log window Data log window is used to display output Voltage, Current and Power against time in graphical view. You can move the diagram left and right by adjust “Move:” slide bar. You can zoom in/out the diagram by adjust “Zoom:” slide bar. You can save the data in CSV file for analysis later.
- Page 18 11.8 Save, Load and print setting In previous session, the above 3 buttons are used to save, load and print log data. In addition, these buttons can used to save, load and print setting for External Timed Program and Internal Preset Memory. First, select tab in Main configure and data log display panel.
- Page 19 11.9 Power Supply Calibration (Only available on Firmware 3.1 or above) * WARNING: IT IS HIGHLY RECOMMENDED THAT THE CALIBRATION IS DONE BY EXPERIENCE TECHNICAL PERSON HCS can be calibrated by using Manson PC control software. Digital Multi-meter and Electronic load are required for calibration.
- Page 20 Click to run calibration process. There are total 8 steps for calibration. 4 steps for Voltage and 4 steps for Current. You only need to follow step by step to finish calibration. It start from Voltage calibration first. DO NOT CONNECT LOAD for Voltage calibration. As show in the above figure, the power supply will automatic set output voltage for each step.
- Page 21 Command code & return value Function Example Input Command: Preset Voltage value Input command: VOLT<voltage>[CR] VOLT127[CR] <voltage>=010<???<Max-Volt Return value: Return value: OK[CR] *Max-Volt value refer to product specification OK[CR] Meaning: Set Voltage value as 12.7V Input Command: Preset Current value Input command: CURR<current>[CR] <current>=000<???<Max-Curr...
- Page 22 12. Appendix HCS USB configuration for remote programming This application note describes the procedure to configure the USB port for HCS remote programming application. HCS remote programmable power supply with USB can connected to PC through USB cable. USB to serial bridge design is used. When connected to PC, it will be converted as COM port shown in the following picture.
