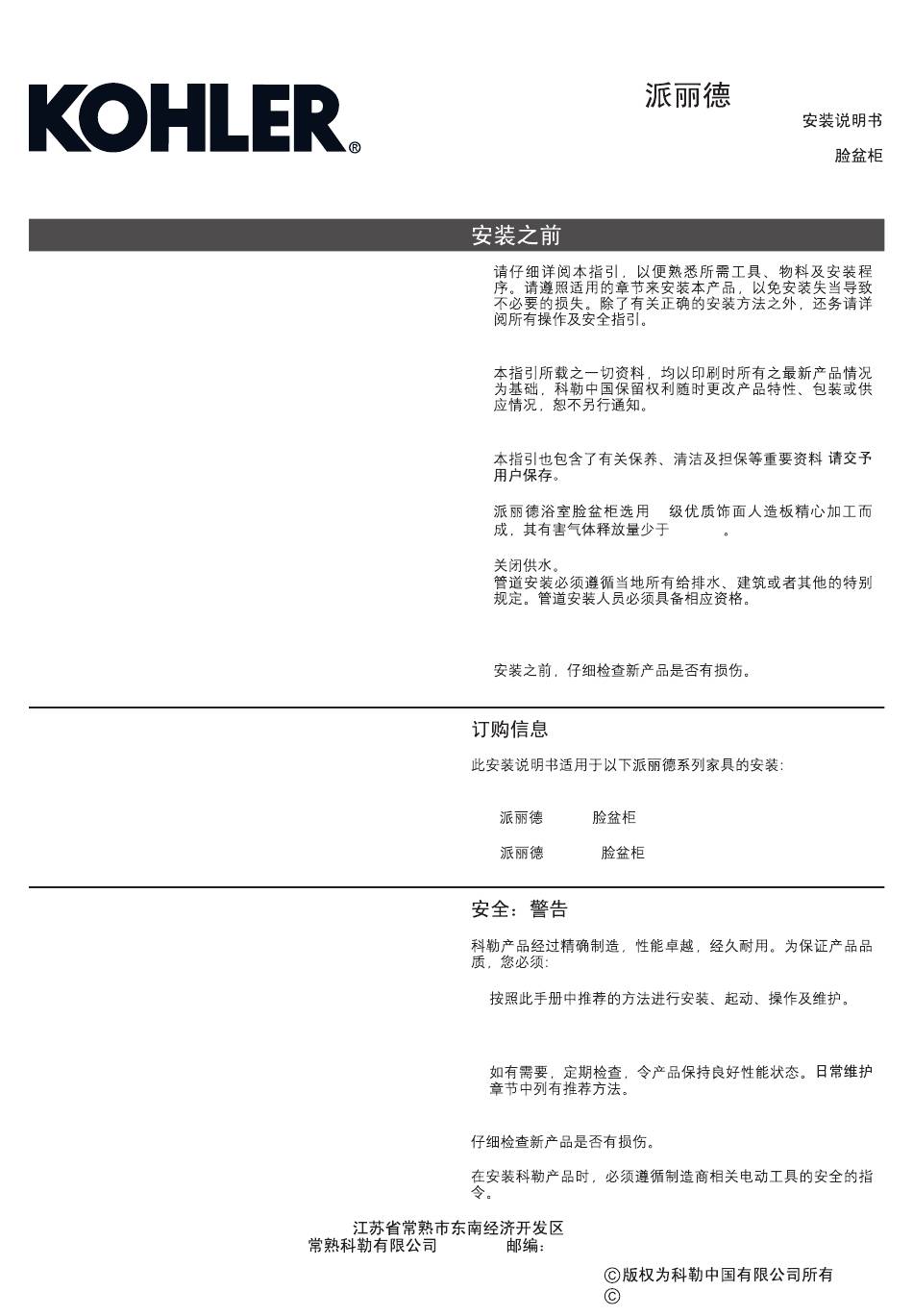

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
Paradox bathroom cabinet adopts E1 grade wood-based
panel of high quality, and with further processing, its
harmful emissions will be less than 1.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
ORDERING INFORMATION
This installation covers the following products in the
PARADOX range:

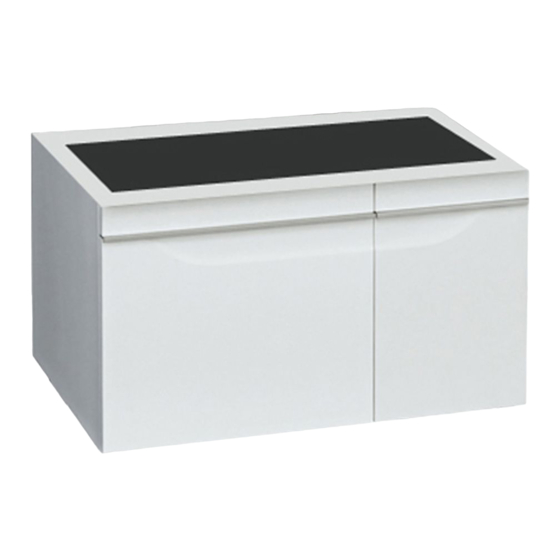

PARADOX 800mm Washbasin
Cabinet..............................................K-15050T/K-15050K
PARADOX 1000mm Washbasin
Cabinet ...............................................K-15051T/K-15051K
SAFETY: WARNINGS
Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the
Carefully inspect the new fixture for any signs of damage.
When installing Kohler Products, manufacturers guidelines for
power tool safety should be followed.
1063146-T01-E
please leave instructions for the
MAINTENANCE
section.
K-15050T/K-15051T/K-15050K/K-15051K
·
·
·
·
·
·
·
800mm
1000mm
1.
2.
215500
-1-
PARADOX
Installation INSTRUCTIONS
WASHBASIN CABINETS
E1
1.5mg/L
........................K-15050T/K-15050K
......................K-15051
T/K-15051K
Copyright Kohler China Ltd., 2009
-
, 2009
Advertisement
Table of Contents
Related Manuals for Kohler PARADOX K-15050T
Summary of Contents for Kohler PARADOX K-15050T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 ROUGHING-IN UNIT : mm 1000 K-15050T/K-15050K K-15051T/K-15051K 800mm Washbasin Cabinet 1000mm Washbasin Cabinet 800mm 1000mm INSTALLATION A. Install Washbasin Cabinet Install the services. Hot (H) and Cold (C) inlets must be connected to the correct inlet pipes. Install the drain in accordance with the manufacturer s instructions.
- Page 3 2004/12/6 1. Mark the position of hanged bracket according to dimensions as illustrated, and loosen the suspension hook of washbasin cabinet. Caution! Avoid the cables and pipes inner set when drilling in the wall. Note: Different types of bolts are required for different decoration boards.
- Page 4 2. Drill holes for fixing the bracket. Using a level, ensure that the hanged bracket is level. 3. Use suitable plugs and bolts, and fix the hanged bracket on the wall. 4. Loosen the dip on the bottom of the hinge. Remove the washbasin cabinet door carefully and put it aside.
- Page 5 6. Set the washbasin cabinet onto the wall bracket. Adjust leveler. Be sure the cabinet adjusted level and the back board of cabinet appressed to the wall by adjusting the screws of wall clips. As Fig 4. Fig.5 7. Mark the wall through two holes at the corresponding positions.
- Page 6 Connect Drainage 1. Inwall drainage (P-Trap) Please install the drain assembly and faucet as shown. Please set the water supply and drainage position according to the suppliers instructions. You can adjust the height of shelf to fit the drain assembly. Faucet Supply Lines Shut-off Valve...
- Page 7 C. Finish the Installation 1. Install the cabinet door to the cabinet. Insert the hinge until "ka" heard. 2. Adjust the hinge screw to flat the door. Anti-dust Fig.8 3. Place the anti-dust plastic at the dead-corner. As Fig 8. 4.
- Page 8 6. Please do not sit, lean or step on the basin cabinet. 7. If any fixtures caused by abnormal reasons, Kohler China can supply paid replacement for service parts caused by abnormal reasons as shown in the next page in the limited duration of warranty.
