BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation . This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
Before installation carefully inspect the new fixture for any
signs of damage.
ORDERING INFORMATION
This installation covers the following products in the
DEVONSHIREN, ELOSIS mirror cabinet range:

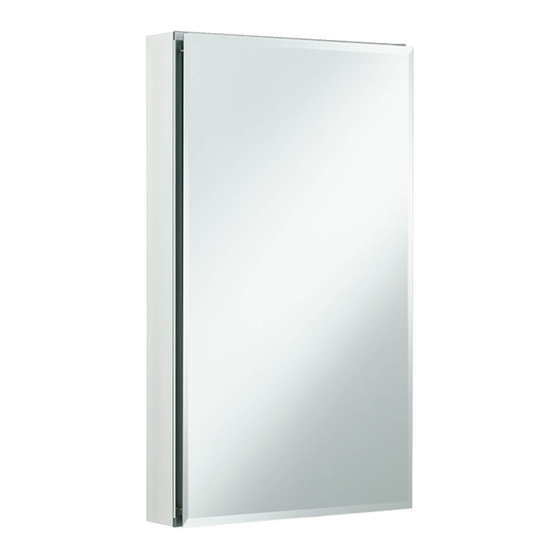

ELOSIS Mirror Cabinet1526 ..........................K-15030T-NA
ELOSIS Mirror Cabinet2026..........................K-15031T-NA
ELOSIS Mirror Cabinet2526..........................K-15032T-NA
ELOSIS Mirror Cabinet3026..........................K-15033T-NA
ELOSIS Mirror Cabinet Wood Frame2026 ....K-15034T-NA
DEVONSHIRE Mirror Cabinet PU Frame2030 ..K-15035T-NA
PARTS
Parts supplied with your cabinet. (For cabinet body and door
replacement, call customer service with model number.) Be
sure to check the cardboard supports in the carton, glass
parts are packed in them.
1056564-T01-A
please leave instructions for the
K-15030T, K-15031T, K-15032 , K-15033 , K-15034 , K-15035T
·
·
·
·
1526...........................................
2026...........................................
2526...........................................
3026...........................................
PU 2030 ..................................
(
.
(
)
158
200436
-1-
DEVONSHIRE
INSTALLATION INSTRUCTIONS
MIRROR CABINET
T
T
2026 ...................................
Copyright Kohler China Ltd., 2008
ELOSIS
T
-
K-15030T-NA
K-15031T-NA
K-15032T-NA
K-15033T-NA
K-15034T-NA
K-15035T-NA
),
, 2008
Advertisement
Related Manuals for Kohler K-15031T
Summary of Contents for Kohler K-15031T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 PARTS ON LEFT ARE USED WITH ALL CABINETS. ONE DOOR CABINET-Part list Side Mirrors 11 Mounting Bar for Wall Anchors K-15030T-NA, K-15031T-NA, K-15034T-NA, K-15035T-NA K-15030T-NA, K-15031T-NA, K-15034T-NA, K-15035T-NA 4 Side Kits brackets 2 Glass Shelves K-15030T-NA, K-15031T-NA, # 8 X 3/8 Side Kits Screws K-15034T-NA, K-15035T-NA # 8 X 3/8 K-15030T-NA, K-15031T-NA,...
-
Page 3: Installation
ROUGHING-IN UNIT : mm K-15030T-NA K-15031T-NA K-15032T-NA K-15033T-NA K-15034T-NA K-15035T-NA INSTALLATION NOTE All steps after pg.4 are for all cabinets unless noted. (*) · · For recess mount see instructions below. · · For surfaces mount instructions see page4. · ·... - Page 4 14 1/4 W for K-15030T-NA Models 19 1/4 W for K-15031T-NA, K-15034T-NA, K-15035T-NA Models 24 1/4 W for K-15032T-NA Models 29 1/4 W for K-15033T-NA CL15 CL20 CL25 CL30 CL3026-3 Mounting location for #8 x 1 1/2 philips head screws Fig.
- Page 5 K-15030T-NA 4 1/2" from edge side of cabinet K-15034T-NA K-15035T-NA 2" from edge side of cabinet K-15030T-NA 3/4 bottom of Cabinet Fig. 3 2) For Two Door Drill three 3/16 holes in bottom mounting bar at indent location. Use the supplied anchors or locate studs if possible. 2"...
- Page 6 Cabinet bottom sits in lip on bottom mounting bar #8 x 2" Hex Head screw & Wall anchor (use x1/4" driver) Wall anchor (if required) Top mount clip #8x2 Hex head screw " (Use 1/4 driver) " Fig. 6 Once Screw is bottomed out on mount clip, turn screw and additional 5 to 7 turns to fully expand the anchor.
- Page 7 3. Attaching Side Kits to a Surface Mounted Cabinet A. Apply foam tape to Side kit bracket 1) Peel tape from sheet, leave liner on. 2) Apply as shown to side kit brackets, be sure they are clean and dry. DO NOT PEEL RELEASE LINER UNTIL YOU HAVE TEST FIT THE SIDE KITS ON THE CABINET! B.
- Page 8 Fig. 12 Fig. 13 5. Installing the shelves- see Fig.15 Push/twist the pins into place 1) Push one side of the shelf into the left or ritht clips 2) Snap the shelf down into the opposite side. If the shelf is too tight, repeat the process fron the other side.
- Page 9 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15030T 1064412 Hinge Kits 1064407 1056546 Door Side Mirror 381mm 1098736 Glass Shelf 322.5mm 1056549 Mounting Bar 280mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape #8 X 3/8...
- Page 10 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15031T 1064412 Hinge Kits 1064408 Door 1056546 508mm Side Mirror 1098737 Glass Shelf 450mm 1056549 Mounting Bar 280mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape #8 X 3/8...
- Page 11 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15032T 1064412 Hinge Kits 1056546 Side Mirror 1064409 Door 254mm 1098738 Glass Shelf 576.5mm 1064407 Door 381mm 1064413 Mounting Bar 533mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape...
- Page 12 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15033T 1064412 Hinge Kits 1056546 Side Mirror 1064409 Door 254mm 1098739 Glass Shelf 704mm 1064408 Door 508mm 1064414 Mounting Bar 660mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape...
- Page 13 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15034T 1064412 Hinge Kits 1064410 Door, Wood Frame 1056546 508mm Side Mirror 1098737 Glass Shelf 450mm 1056549 Mounting Bar 280mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape...
- Page 14 DEVONSHIRE ELOSIS SERVICE PARTS PAGE MIRROR CABINET K-15035T 1064412 Hinge Kits 1064411 Door 508mm 1056546 Side Mirror 1098737 Glass Shelf 450mm 1056549 Mounting Bar 280mm 1056547 Kits Hardware, Including Following Parts: Side Kits Brackets Wall Anchors Top Clips Snap-in Pins Hole Plugs Foam Tape #8 X 3/8...
