BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
NEW REACH bathroom cabinet adopts E1 grade wood-
based panel of high quality, and with further processing,
its harmful emissions will be less than 1.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
·
This product complies with GB 24977-2010.
ORDERING INFORMATION

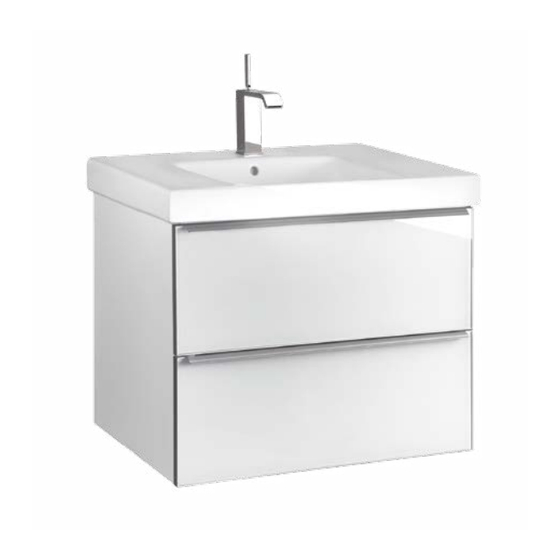

This installation covers the following products in the NEW
REACH range:
NEW REACH 660mm Washbasin Cabinet..........K-76664T
NEW REACH 1010mm Washbasin Cabinet........K-76663T
SAFETY WARNINGS
Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the
Carefully inspect the new fixture for any signs of damage.
When installing Kohler Products, manufacturers guidelines for
power tool safety should be followed.
CHANGSHU KOHLER LTD.,
1274633-T01-A
please leave instructions for the
MAINTENANCE
section.
CHANGSHU, JIANGSU PROVINCE, CHINA
·
·
·
·
·
·
·
·
660mm
1010mm
1.
2.
SOUTHEAST ECONOMIC DEVELOPMENT ZONE,
POST CODE 215500
©
Copyright Kohler China Investment Co., Ltd. 2015
-1-
©
NEW REACH
INSTALLATION INSTRUCTIONS
WASHBASIN CABINETS
K-76664T/K-76663T
E1
1.5mg/L
GB 24977-2010
.............................................K-76664T
...........................................K-76663T
215500
-
2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler K-76663T
Summary of Contents for Kohler K-76663T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 Reference Value UNIT : mm K-76664T K-76663T Fig.1 Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION A. Install Washbasin Cabinet Install the services. Hot (H) and Cold (C) inlets must be connected to the correct inlet pipes.
- Page 3 1. Mark the position of hanged bracket according to dimensions as illustrated, and loosen the suspension hook of washbasin cabinet. CAUTION! Avoid the cables and pipes inner set when drilling in the wall. NOTE: Different types of bolts are required for different decoration boards.
- Page 4 4. Hang the washbasin cabinet on the wall, and position the suspension on the hanged bracket. 5. Set the washbasin cabinet onto the wall bracket. Be sure the cabinet adjusted level and the back board of cabinet appressed to the wall by adjusting the screws of wall clips. Fig.5 6.
- Page 5 Connect Drainage 1. In-wall drainage (P-Trap) Please install the drain assembly and faucet as shown. Please set the water supply and drainage position according to the suppliers instructions. You can adjust the height of shelf to fit the drain assembly. Faucet Supply Lines Shut-off Valve...
- Page 6 6. Please do not sit, lean or step on the basin cabinet. 7. If any fixtures caused by abnormal reasons, Kohler China can supply paid replacement for service parts caused by abnormal reasons as shown in the Service Parts Page in the limited duration of warranty.
