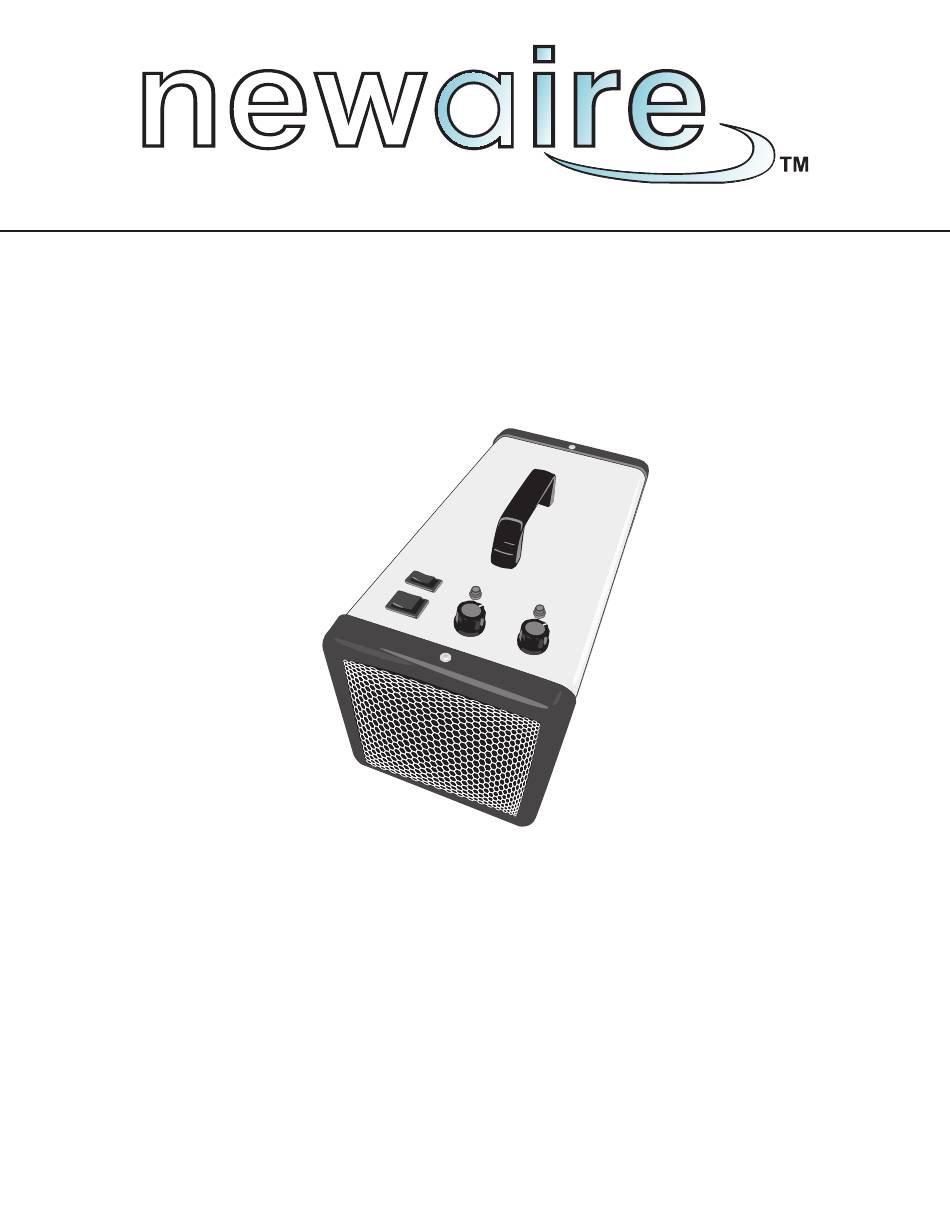

Hydroxyl Ozone Generator
Air & Surface Treatment System
HO3 2500
User Manual
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important safety and maintenance information.
Keep these instructions for future reference.
These instructions contain important safety and operating information for
your Newaire HO3 2500 Hydroxyl Ozone Generator. Please contact us directly with
questions you may have regarding the safe operation and/or maintenance.
Toll Free #: 1-877-646-9663
Advertisement
Table of Contents
Summary of Contents for NewAire HO3 2500
- Page 1 Keep these instructions for future reference. These instructions contain important safety and operating information for your Newaire HO3 2500 Hydroxyl Ozone Generator. Please contact us directly with questions you may have regarding the safe operation and/or maintenance. Toll Free #: 1-877-646-9663...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ........................2 Ozone Warning ............................3 Handling and Disposal of Mercury ......................4 FAQs ................................ 5 Location of Controls ..........................6 Operation ..............................7 Replacing the Carbon Filters ........................9 Replacing the UV Bulbs ........................10 Replacing the Generator Tubes ...................... -
Page 3: Ozone Warning
Important Safety Information Standard safety precautions must always be followed to place objects filled with water, such as a vase, on the reduce the risk of fire, electric shock, and injury to persons, apparatus. including the following: 16. The AC mains plug is used as the power disconnect 1. -
Page 4: Handling And Disposal Of Mercury
Handling and Disposal of Mercury Mercury is used in this device’s UV bulb and must be disposed of properly. There is no safety hazard as long as the bulb is intact because the mercury is contained within the fixture. If a bulb breaks, very little mercury could be released. This is different then liquid metallic mercury (like in a thermometer), which is hazardous due to its potential to release mercury vapor. -
Page 5: Faqs
Handling and Disposal of Mercury • After cleaning, open a window and use a fan to ventilate • Dispose of contaminated items properly! Mercury- the area to the outdoors for 24-48 hours before resuming contaminated items should not be placed in the regular normal use. -
Page 6: Location Of Controls
Location of Controls Plastic End Cap Carrying Handle OZONE CAUTION OZONE ON Switch Indicator Power CONTINUOUS Indicator Switch HYDROXYL TIMER Knob OZONE TIMER Knob Plastic End Cap Fuse (bottom of unit) AC Cord (bottom of unit) — 6 —... -
Page 7: Operation
Operation AC CONNECTION STANDARD OPERATION Plug into properly Press the Power Switch to the ON position and the Hydroxyl Ozone Generator will operate continuously installed and until the Power switch is set to OFF. The Continuous grounded three- indicator will light when the switch is set to ON. prong outlet. - Page 8 Operation TIMER OPERATION OZONE: (Can only be used when Hydroxyl Timer is set also, and room must be empty of people, pets and plants). Set the desired ozone time using OZONE TIMER Knob, then press the OZONE TIMER Press the Power Switch to the TIMER position. knob to the desired time;...
-
Page 9: Replacing The Carbon Filters
Replacing the Carbon Filters After approximately 60 days of use, both carbon filters should be replaced. The carbon filters are located at each end of the Hydroxyl Ozone Generator and can be purchased through your distributor. Replace carbon filters as follows: WITH THE UNIT UNPLUGGED, place the Hydroxyl Install the new carbon filter, then replace the screen and plastic end cap. -
Page 10: Replacing The Uv Bulbs
Replacing the UV Bulbs When one of UV bulbs blows, you must replace both at the same time. The UV bulbs can be purchased through your distributor. Replace UV bulbs as follows: WITH THE UNIT UNPLUGGED, place the Hydroxyl Remove one of the 8/32 screws holding the finger guard in its place and loosen the opposing screw. - Page 11 Replacing the UV Bulbs Gently pull the UV lamp socket vertically holding the Reconnect the UV Lamp, then reinsert socket head lamp by ceramic portion and disconnect the Quick screws and gently tighten with 3/32 Allen key. Connect connector. Replace the UV lamp with the new bulb by carefully sliding lamp into lamp holder, making sure to align Repeat process with the second UV lamp as they the bottom end of the UV bulb into the bottom...
- Page 12 Replacing the UV Bulbs Reinsert carbon filter, metal retaining screen, and plastic end cap, then secure with retaining screws. WARNING: • UV Bulbs MUST be disposed of properly, see pages 4 and 5 for details on removing the mercury containing UV bulbs.
-
Page 13: Replacing The Generator Tubes
Replacing the Generator Tubes Maintenance is required on the ozone generator about every six months depending on the amount of use and/or if the ozone output is low or the ozone generator 1 Amp fuse has blown. WITH THE UNIT UNPLUGGED, place the Hydroxyl Remove two screws (one on each generator tube). -
Page 14: Fuses
Replacing the Generator Tubes Examine and replace the ozone generator tubes and Reassemble in reverse order. electrodes if ozone output is low and any damaged or broken parts, or if the 1 Amp fuse has blown. Make sure to connect the grounding wire to wire assembly. -
Page 15: Specifications
Specifications Power Source ...............................120 V, 60 Hz Power Consumption ............................132 Watts Fan Output ................................ 212 CFM Treatment Process ................Carbon filter & twin hydroxyl and ozone chambers UV Lamp Type ........................UVC 254 nm germicidal lamp Reaction Surface ....................266.90 Square Inches, 25,000 Hour Life Room Capacity .............................2500 Square Feet Dimensions ........................8.2 (W) x 10 (D) x 17 (L) inches Weight .................................. -
Page 16: Limited Warranty
Limited Warranty PURCHASER PLEASE FILL OUT AND FAX TO 1-800-493-4550 OR MAIL TO: QUEENAIRE TECHNOLOGIES, INC 9483 State Highway 37, Ogdensburg, NY 13669 MODEL # ________________ SERIAL # ____________________ DATE PURCHASED __________________ PURCHASED FROM ______________________________ INTENDED USE____________________________ CUSTOMER NAME _______________________________ TELEPHONE ______________________________ ADDRESS________________________________________________ FAX _____________________________ CITY/STATE/ZIP _______________________________ CONTACT NAME ____________________________ QUEENAIRE TECHNOLOGIES, INC WARRANTS NEW QUEENAIRE MODELS TO THE ORIGINAL PURCHASER ONLY, TO BE... - Page 17 QUEENAIRE TECHNOLOGIES, INC 9483 State Highway 37 Ogdensburg, NY 13669 www.queenaire.com...
