- Page 1 SC100 HARDWARE MANUAL • SC100 SERIAL DEVICE GATEWAY Series 04 / 2018 MIKRODEV_HM_SC100_EN...
-
Page 2: Table Of Contents
CONTENTS SC100 GENERAL INFORMATION ................ 7 Physical Interfaces ..................7 General Device Spesifications ..............8 INSTALLATION INFORMATION ................9 Rail Installation ..................9 CONNECTION DIAGRAMS ................11 Supply Connection ..................11 RS485 SERIAL PORT .................12 RS232 SERIAL PORT .................13 SC100 – HARDWARE MANUAL... - Page 3 Figure 1 Connecter and Physical Interfaces ............... 7 Figure 2 Mounting ....................9 Figure 3 Demountage ....................10 Figure 4 Power Connection Diagram ................11 Figure 5 RS485 Input Connection Diagram ..............12 Figure 6 RS232 Input Connection Diagram ..............13 SC100 – HARDWARE MANUAL...

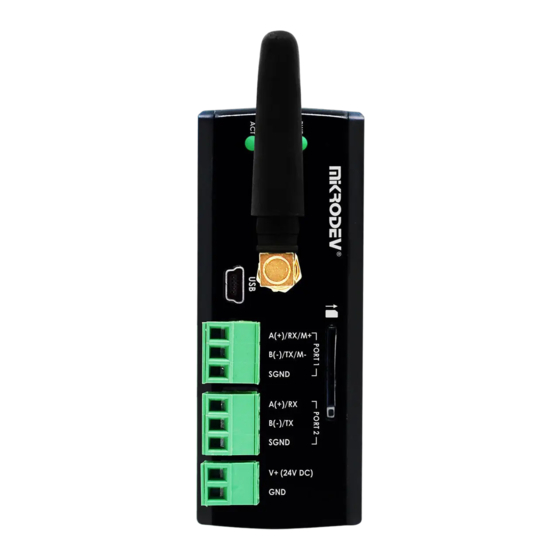

- Page 4 Preface Mikrodev SC100 Serial Device Gateway connects serial devices on RS232 and RS485 lines to TCP networks. The SC100 series converters are optionally connected to the TCP via GSM, ETHERNET or Wi-Fi networks. In this document, you can find information about the hardware specifications of Mikrodev SC100 series devices.
- Page 5 MIKRODEV is one of the few companies in the world that has its own designed IEC 61131-3 compliant library for its programmable logic control devices. In addition, the open, flexible, programmable SCADA solution developed by MIKRODEV is also available to customers.
- Page 6 ✓ Make sure that the environment in which your device is being used is free of moisture, electric shock, vibration and dust. ✓ Pay attention to the supply voltage and the connections of the product. Mikrodev is not responsible for any issues due to power failure since there is no auxiliary supply (UPS) on the device.
- Page 7 SC100 – HARDWARE MANUAL...
-
Page 8: Sc100 General Information
GSM or WIFI antenna Connection USB configuration port SIM card Slot Remote Connection Activity LED System LED POWER LED Ethernet port Factory Settings M-BUS Connections RS485 Connections Rs232 TX-RX Connections RS-232 Nötr Connection DevicePower(V+)Connection(+24V) DevicePower (V-)Connection SC100 – HARDWARE MANUAL... -
Page 9: General Device Spesifications
RS485 1 / 2 ( Optional ) RS232 1 / 2 ( Optional ) GSM / GPRS 850/900/1800/1900MHz@GSM Wireless GSM / 3G 800/850/900/1900/2100MHz@UMTS Communication 850/900/1800/1900MHz@GSM Wi-Fi IEEE 802.11 b/g/n USB port Configuration Over TCP Over ETH/Wi-Fi/GSM SC100 – HARDWARE MANUAL... -
Page 10: Installation Information
DIN rail easily and the montage is completed. (See 16 A - 16 B) Figure 2 Mounting SC100 – HARDWARE MANUAL... - Page 11 DIN Rail Demountage To demount the device, firstly it is pulled from the bottom using flexibility of the spring, the device is removed from the DIN Rail and the demounting is completed. Figure 3 Demountage SC100 – HARDWARE MANUAL...
-
Page 12: Connection Diagrams
CONNECTION DIAGRAMS 3.1 Supply Connection Supply: 12-36 VDC, Protected Power: < 5 W Figure 4 Power Connection Diagram SC100 – HARDWARE MANUAL... -
Page 13: Rs485 Serial Port
3.2 RS485 SERIAL PORT RS485 port Count: Isolation: Galvanic Maximum Slave Counts: Communication Distance: 1000 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 5 RS485 Input Connection Diagram SC100 – HARDWARE MANUAL... -
Page 14: Rs232 Serial Port
3.3 RS232 SERIAL PORT RS232 port Count: Pins: TX – RX Only Communication Distance: 10 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 6 RS232 Input Connection Diagram SC100 – HARDWARE MANUAL... - Page 15 SC100 – HARDWARE MANUAL...
