Summary of Contents for MIKRODEV MBS100

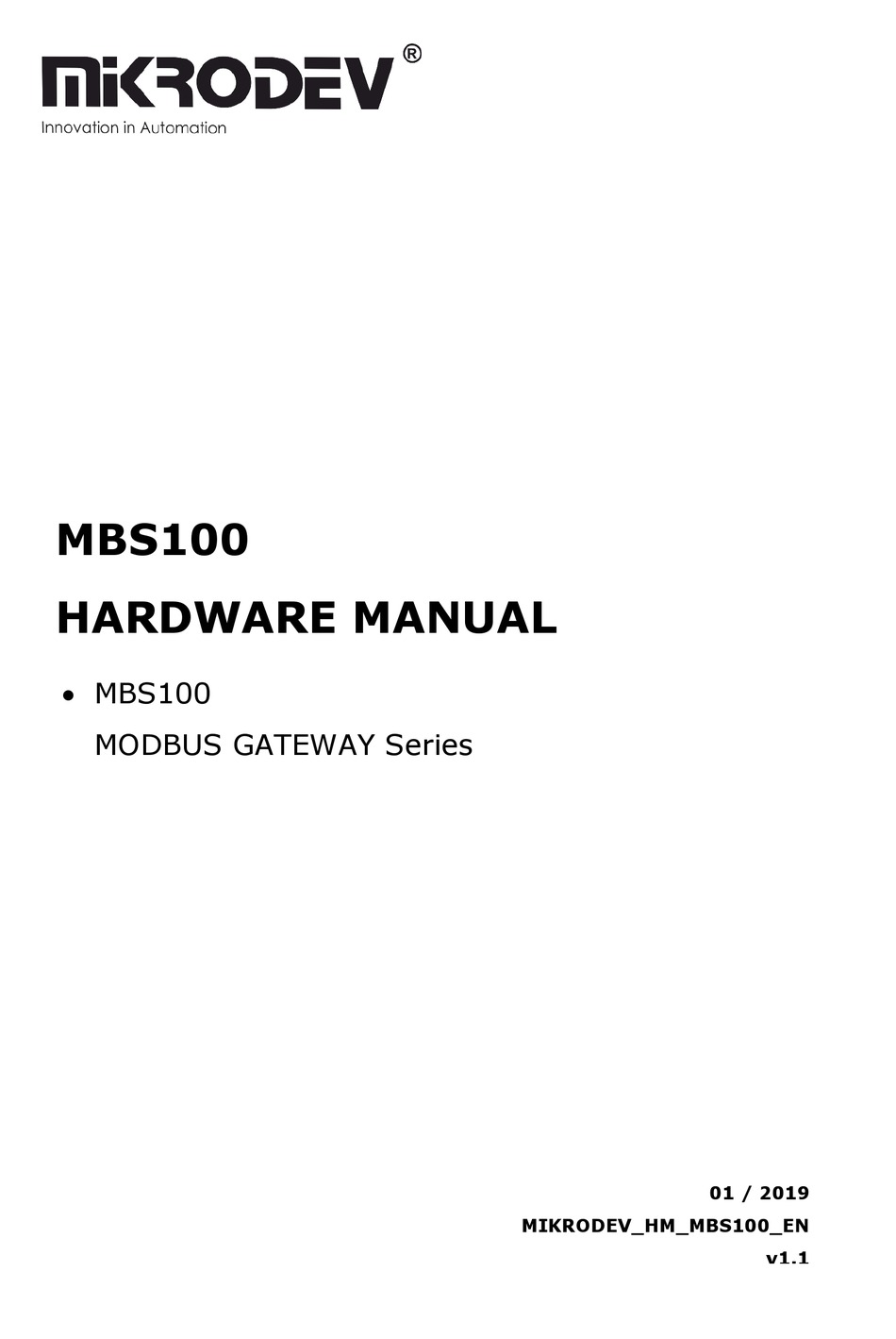

- Page 1 MBS100 HARDWARE MANUAL MBS100 MODBUS GATEWAY Series 01 / 2019 MIKRODEV_HM_MBS100_EN v1.1...
-
Page 2: Table Of Contents
CONTENTS FIGURES LIST ..........................2 Preface ............................3 About Mikrodev..........................4 WARNING! ............................5 MBS100 GENERAL INFORMATION ..............6 Physical Interfaces ..................6 General Device Spesifications ..............7 INSTALLATION INFORMATION................8 Rail Installation ..................8 CONNECTION DIAGRAMS ................10 Supply Connection ..................10 RS485 Serial Port ..................11... -
Page 3: Figures List
Figure 1 Connecter and Physical Interfaces ............... 6 Figure 2 Mounting Information ................8 Figure 3 Demountage ..................... 9 Figure 4 Power Connection Diagram ................10 Figure 5 RS485 Input Connection Diagram ..............11 Figure 6 RS232 Input Connection Diagram ..............12 MBS100 SERIES – HARDWARE MANUAL... -
Page 4: Preface
Mikrodev MBS100 Modbus Gateway connects Modbus RTU devices on RS232 and RS485 lines to Modbus TCP networks. Optionally, the model with 2 RS485 ports can be selected. The MBS100 series converters are optionally connected to the Modbus TCP protocol via GPRS, Ethernet or Wi-Fi networks. -
Page 5: About Mikrodev
MIKRODEV is one of the few companies in the world that has its own designed IEC 61131-3 compliant library for its programmable logic control devices. In addition, the open, flexible, programmable SCADA solution developed by MIKRODEV is also available to customers. -
Page 6: Warning
Make sure that the environment in which your device is being used is free of moisture, electric shock, vibration and dust. Pay attention to the supply voltage and the connections of the product. Mikrodev is not responsible for any issues due to power failure since there is no auxiliary supply (UPS) on the device. -

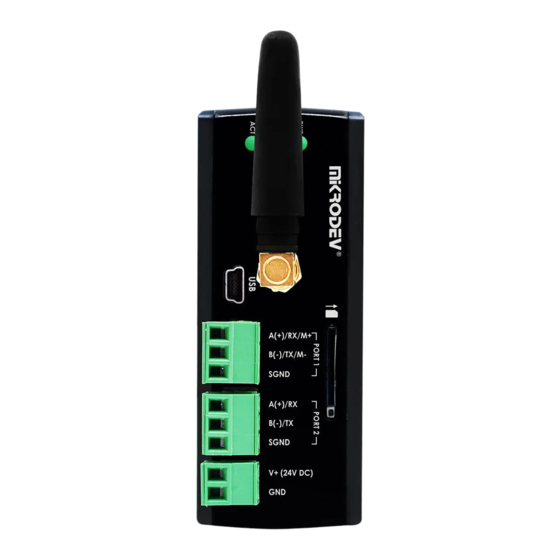

Page 7: Mbs100 General Information
System LED RS485 Port 1 Connections Remote Connection LED Serial Port Ground Connection GSM or Wi-Fi Antenna Connection RS485 Port 2 Connections SIM Card Slot Device Power (V+) Connection Ethernet Port Device Power (V-) Connection MBS100 SERIES – HARDWARE MANUAL... -
Page 8: General Device Spesifications
1 Port Quad-Band GSM / GPRS Wireless 850/900/1800/1900 MHz Communication Wi-Fi IEEE 802.11 b/g/n USB Port 1 Port, Mini USB Type B Configuration Over TCP Eth/Wi-Fi/GSM *Models with 2 RS485 ports do not have RS232 ports. MBS100 SERIES – HARDWARE MANUAL... -
Page 9: Installation Information
First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed. Figure 2 Mounting Information MBS100 SERIES – HARDWARE MANUAL... - Page 10 DIN Rail Demountage To demount the device, firstly it is pulled from the bottom using flexibility of the spring, the device is removed from the DIN Rail and the demounting is completed. Figure 3 Demountage MBS100 SERIES – HARDWARE MANUAL...
-
Page 11: Connection Diagrams
CONNECTION DIAGRAMS 3.1 Supply Connection Supply: 9-36 VDC, Protected Power: <13 W Figure 4 Power Connection Diagram MBS100 SERIES – HARDWARE MANUAL... -
Page 12: Rs485 Serial Port
1 or 2 Port Isolation: Galvanic Isolation Maximum Slave Counts: Limited to Hardware Communication Distance: 1000 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 5 RS485 Input Connection Diagram MBS100 SERIES – HARDWARE MANUAL... -
Page 13: Rs232 Serial Port
3.3 RS232 Serial Port RS232 Port Count: 1 Port Communication Distance: 10 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 6 RS232 Input Connection Diagram MBS100 SERIES – HARDWARE MANUAL...
