Order #XXXXX - ECO-30C Sustainable Pedestal
Item
Qty.
Description
1
1
40"h RSG540 Oval Vertical Extrusion w/ Door Hinge
2
1
40"h RSG540 Oval Vertical Extrusion w/ Door Stop
3
1
40"h RSG540 Oval Vertical Extrusion
4
1
40"h RSG540 Oval Vertical Extrusion
5
1
8"w Z46 Horizontal Extrusion w/ lip
5A
1
8"w Z45 Horizontal Extrusion
6
1
8"w Z46 Horizontal Extrusion w/ lip
6A
1
8"w Z45 Horizontal Extrusion
7/7A
1/1
22"w Z45 Curved Horizontal Extrusion
8/8A
1/1
16.138"w Z45 Curved Horizontal Extrusion
1
5A
Infill
Panel
7A
5
I n f
i l l P
a n e
l
7
4
866.463.2611 • www.ecosystemsdisplays.com
2
6A
6
3

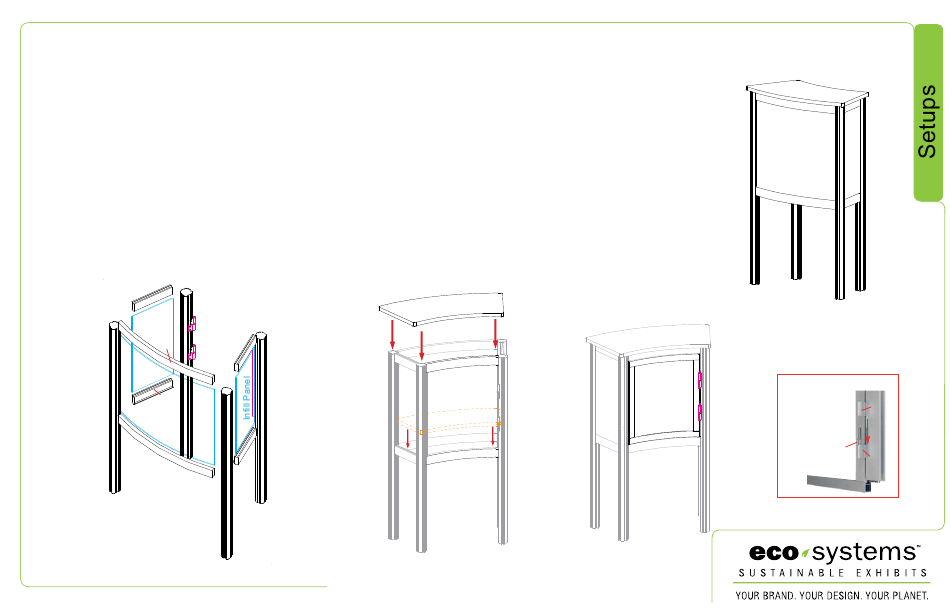

Steps:
1) Connect horizontals [5] between verticals [1] & [4];
Place Infill; secure with horizontal [5A].
2) Connect horizontal [6] between verticals [2] & [3];
Place Infill; secure with horizontal [6A].
3) Attach curved horizontal [7] between verticals [3] & [4];
Place Infill; secure with horizontal [7A].
4) Connect curved horizontal [8] between verticals [1] & [2].
5) Place Shelf/Bottom to rest on lips of horizontals [5] & [6].
6) Connect curved horizontal [8A] between verticals [1] & [2].
7) Place Counter on top of assembed pedestal body.
8) Hange assembled door on the hinges attached to vertical [1].
See
Door Attachment
detail.
Counter
8A
Shelf/Bottom
8
When assembled
*
*
Door Attachment
Assembled
*
Slide pin into
Door
hinge attached
to vertical.
Slide door
hinge over pin.
Door
Hinge
Pin
Hinge
