- Page 1 Order #49478 - ECO-1056 eSmart 10’x10’ Sustainable Hybrid Display 10’ 10’ Plan View Perspective View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
- Page 4 Top View of Each Level 13A 12A 15 15C Wings Set-Up Hardware Level 1 Level 2 Level 3 Level 4 866.463.2611 • www.ecosystemsdisplays.com...
- Page 5 Top View of Each Level Shelf Base Plates Shelf Shelf Base Plates Graphic Level 1 Level 2 Level 3 866.463.2611 • www.ecosystemsdisplays.com...
- Page 6 Item Qty. Description Baseplate 2/2A 30” Horizontal Extrusion 3/3A 30” Horizontal Extrusion 4/4A 26” Horizontal Extrusion 5/5A 45.5” Vertical Extrusion 6/6A 45.5” Vertical Extrusion 7/7A 44” Vertical Extrusion 8/8A 44” Vertical Extrusion 36” Horizontal Extrusion 9.025” Curved Horizontal Extrusion 13.48” Vertical Extrusion Fix Lock Attachment When assembled Tighten screw to...

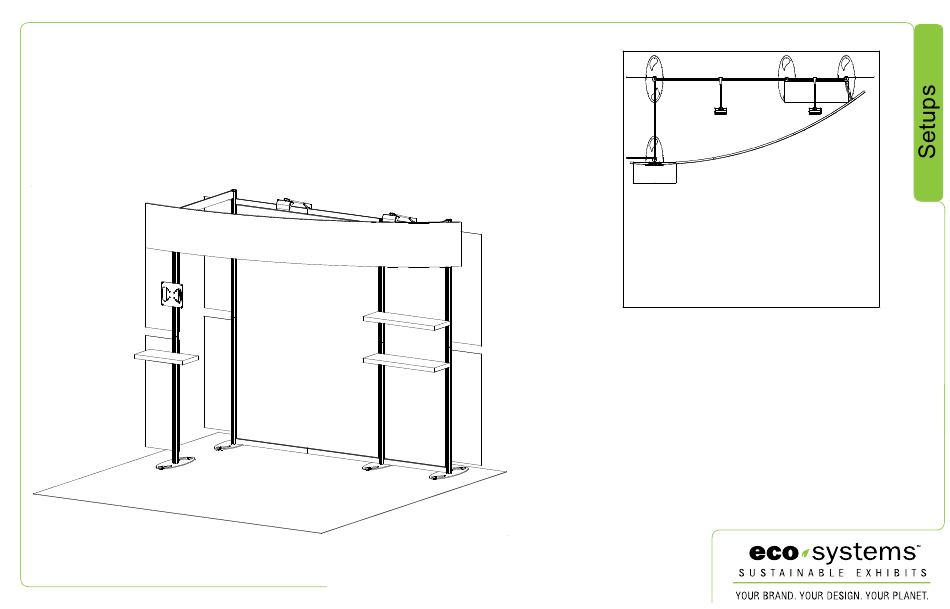

- Page 7 Steps: 1) Attach wings to Verticals with Standoff Caps as shown. 2) Attach Shelves to Verticals with Cam Locks. 3) Connect lights to top Horizontal Extrusions. When assembled 866.463.2611 • www.ecosystemsdisplays.com...
- Page 8 Item Qty. Description 12/12A 39.097” Curved Horizontal Extrusion 13/13A 39.097” Curved Horizontal Extrusion 14/14A 39.097” Curved Horizontal Extrusion 15/15A/15B/15C 1/1/1/1 13.48” Vertical Extrusion Steps: 1) Connect Curved Horizontals [12-13-14 & 12A-13A-14A] together (see Horizontal Inline Detail). 2) Connect Verticals [15, 15A, 15B, 15C] between assembled Horizontals as shown (see Cam Lock Detail). 3) Attach assembled header to assembled backwall as shown (see Detail).
