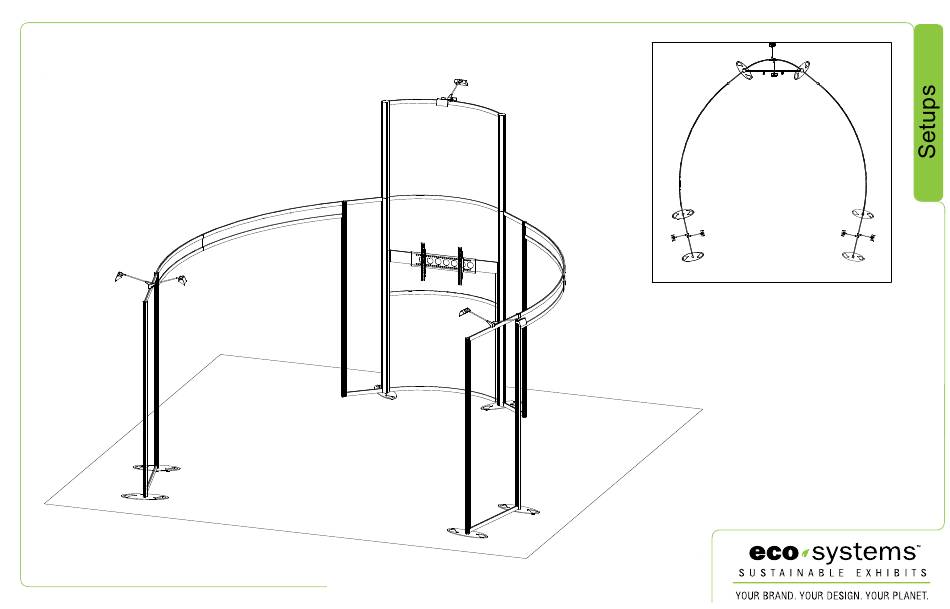

- Page 1 Order #XXXXX - ECO-4073 - 20’ x 20’ Sustainable Display 20’ 20’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
- Page 4 Item Qty. Description Light Attachment Base Plate 96”h RR91 Vertical Extrusion w/ attached S11 47.1”h RR91 Vertical Extrusion Attach light to Lock into 96”h RR91 Vertical Extrusion w/ attached S11 groove of backwall where horizontal 47.1”h RR91 Vertical Extrusion desired and tighten Slide light into light in place.
- Page 5 Item Qty. Description Base Plate 10/10A 96”h RSG540 Vertical Extrusion w/ attached PR63 11/11A 42”w Z45 Horizontal Extrusion Velcro front & back Steps: When assembled 1) Install Base Plates [1] to bottom of verticals [10,10A] using bolts. QTY 2 2) Connect horizontals [11,11A] between verticals [10,10A]. 3) Apply fabric graphics to front &...
- Page 6 Item Qty. Description 84” Z245 curved Horizontal Extrusion 61” Z245 curved Horizontal Extrusion 84” Z245 curved Horizontal Extrusion 61” Z245 curved Horizontal Extrusion Steps: 1) Connect horizontals [12-12A] & [13-13A] together. 2) Install horizontal assembly [12/12A] between verticals [6] of tower & vertical [10A] of side frame. 3) Install horizontal assembly [13/13A] between verticals [7] or tower &...
