Eco-Systems ECO-29C Manual

Order ##### - ECO-29C Sustainable Display Stand
Item Qty. Description
1 1 Base Plate
2/2A 1/1 33" Q914 Vertical Extrusion
3 2 14" Z32 Waterfall Bracket

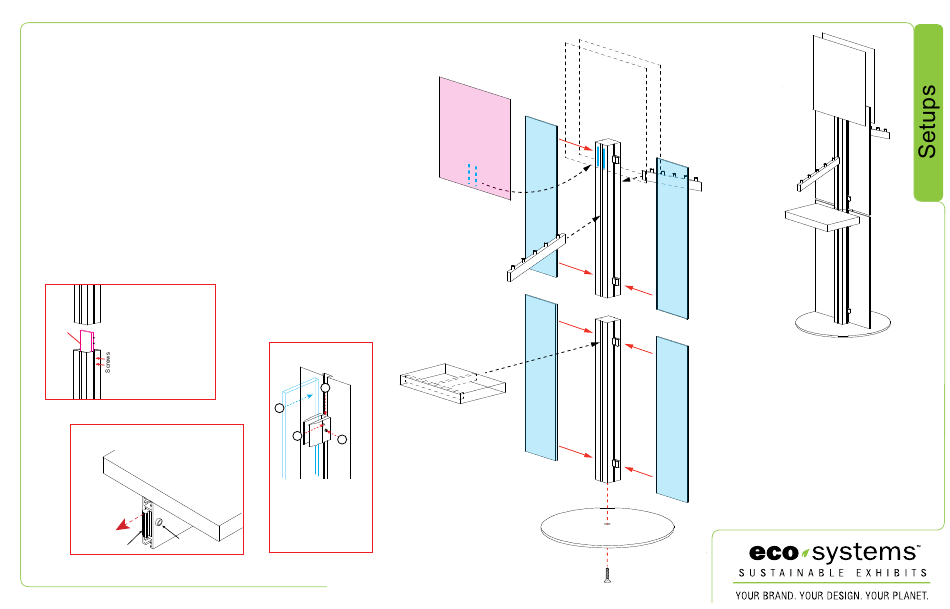

Steps:
1) Assemble verticals [2] & [2A]. See Q914 Connector
2) Install Base Plate to vertical [2/2A].
3) Connect A10 Clamps to left and right sides of vertical [2/2A];
insert wings. See A10 Clamp detail.
4) Install Waterfall Brackets [3] to front and back of vertical [2/2A].
5) Attach Laptop Shelf to front of vertical [2/2A]. See
6) Affix Header Graphics to front and back using Velcro, as shown.
*
Q914 Connector
Slide extrusion over
connector and rest on
Connector
lower vertical.
Secure with screws.
Note:
To prevent product
loss, Keep all screws
attached to connector
piece after disassembling.
*
Shelf Attachment
Insert lock into groove
of vertical extrusion and
tighten setscrew.
B a
c k
o f
S h
e l f
Setscrew will face
outward for ease
of assembly
Setscrew
Lock
